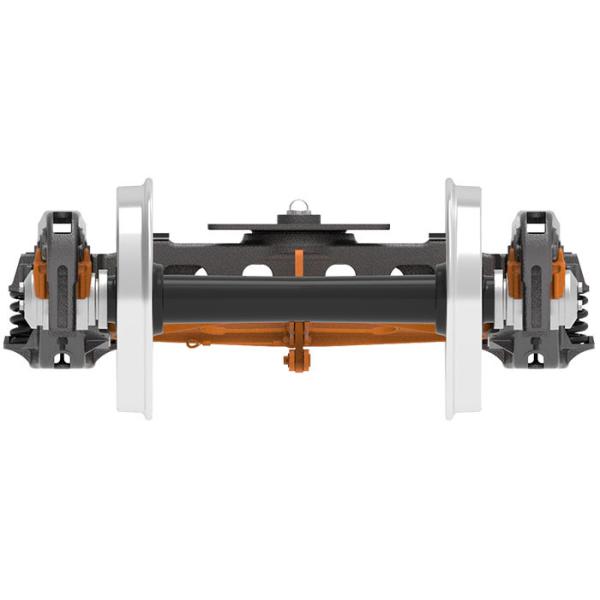

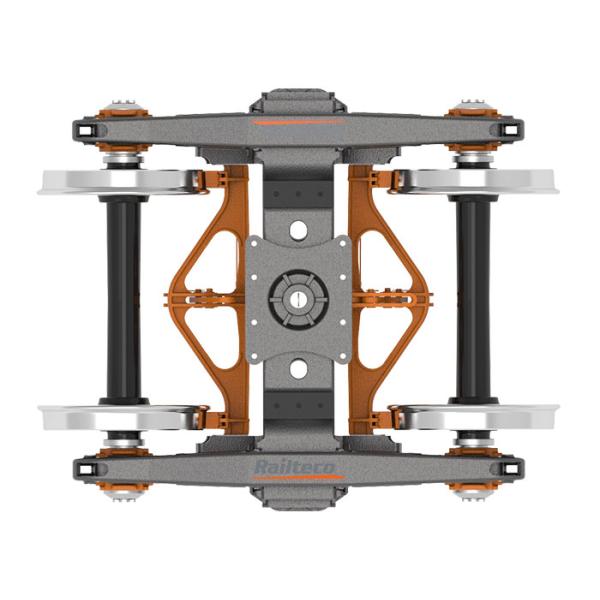

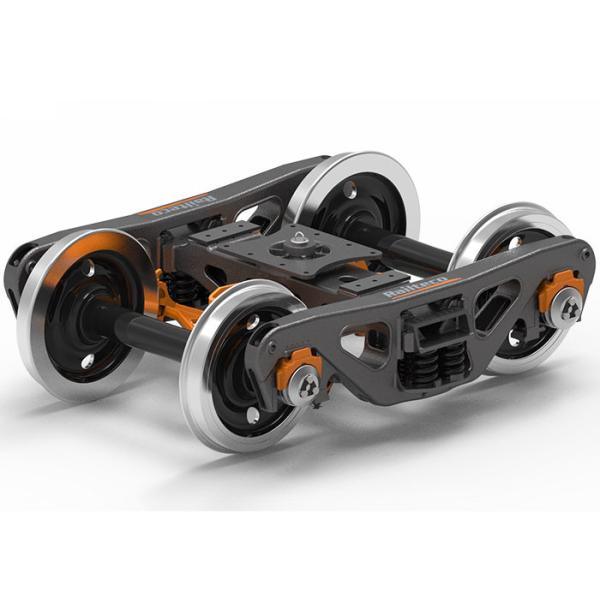

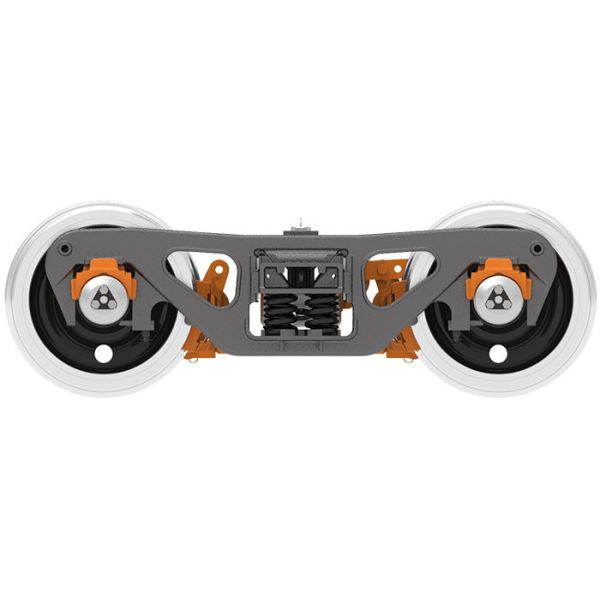

1000mm Gauge Railway 4 Wheel Bogie Meter Gauge Ø724mm Diameter Wheels
1000mm Gauge Railway 4 Wheel Bogie Meter Gauge Ø724mm Diameter Wheels
1000mm Gauge Railway 4 Wheel Bogie Meter Gauge Ø724mm Diameter Wheels
1000mm Gauge Railway 4 Wheel Bogie Meter Gauge Ø724mm Diameter Wheels
1000mm Gauge Railway 4 Wheel Bogie Meter Gauge Ø724mm Diameter Wheels
1000mm Gauge Railway 4 Wheel Bogie Meter Gauge Ø724mm Diameter Wheels
Specifications
Brand Name :
Railteco
Model Number :
RTHZ08
Place of Origin :
China
MOQ :
One pcs
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
4 months after advance payment

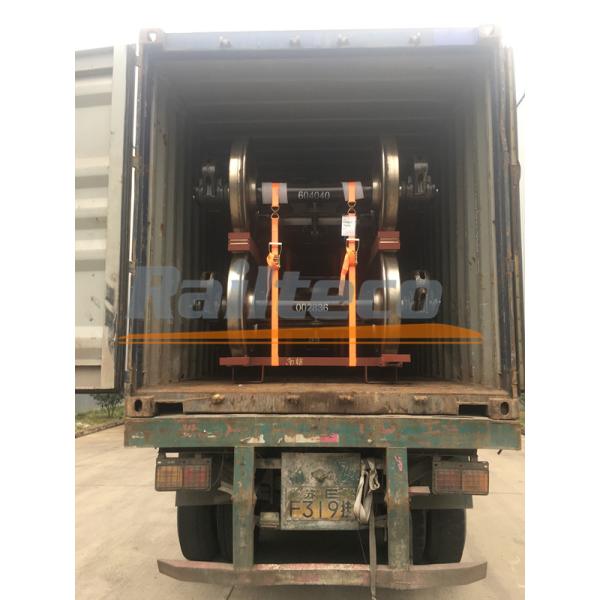

Packaging Details :
Railteco Standard Packing
Price :
Negotiable
Name :
Railway Wagon Bogie RTHZ08
Axle Load :
12t 14t 16t
Tare Weight :
≤2.6t
Running Speed（Max） :
80km/h
Diameter of wheels :
Ø724mm
Wheel Base :
1550mm
Description

Railway Bogie RTHZ08 Bogie Wagon Bogie Wheelset Bogie For Freight Car Wagon

Description of Railway Wagon Bogie RTHZ08:

This kind of bogie is available to be used on the railway gauge of 1000mm. It is applied for new-making and servicing wagons. The axle load is 16t (Max) and the operating speed (Max) is 80km/h. The bogie adopts basic brake device. The braking leverage ratio is 5. The brake rigging adopts forged brake beam and composition brake shoe.

Axle shall be in accordance with AAR M-101, the journal size of axle is 5ʺ×9ʺ.Wheel shall be in accordance with AAR M-107/M-208 ,the diameter of wheels is 724mm. The press-mounted of wheels and axle is according to AAR standard. Use Class C 5ʺ×9ʺ tapered roller bearings in accordance with AAR M-934, manufacturer is Timken, SKF or FAG.

The arrangement shall permit for ready accessibility for maintenance. This kind of bogie falls into categories of casting steel three-piece bogie. It is mainly comprised of wheel set, side frame, bolster, brake rigging, center spring suspension system, variational friction type snubbing device, roller bearing, and side bearing etc.

Main Technical Data of Railway Wagon Bogie RTHZ08:

Gauge 1000mm
Axle load 12t 14t 16t
Tare weight ≤2.6t
Wheel base 1550mm
Running speed(Max) 80km/h
Diameter of wheels Ø724mm

1000mm Gauge Railway 4 Wheel Bogie Meter Gauge Ø724mm Diameter Wheels

1000mm Gauge Railway 4 Wheel Bogie Meter Gauge Ø724mm Diameter Wheels
