RTHZ36 Railcar Bogie 35km/H For Rail Engineering Vehicle
RTHZ36 Railcar Bogie 35km/H For Rail Engineering Vehicle
RTHZ36 Railcar Bogie 35km/H For Rail Engineering Vehicle
RTHZ36 Railcar Bogie 35km/H For Rail Engineering Vehicle
RTHZ36 Railcar Bogie 35km/H For Rail Engineering Vehicle
RTHZ36 Railcar Bogie 35km/H For Rail Engineering Vehicle
Specifications
Brand Name :
Railteco
Model Number :
RTHZ36
Certification :
AAR ISO
Place of Origin :
China
MOQ :
One pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
4 months after advance payment
Packaging Details :
Railteco Standard Packing
Name :
Rail Engineering Vehicle Bogie RTHZ36
Axle load :
35t
Tare weight :
7.8t
Running speed（Max） :
35km/h
Diameter of wheels :
Ø650mm
Fixed Wheelbase :
1300mm
Min curve radius :
100m
Gauge :
1435mm
Description

Type RTHZ36 Railcar Bogie For Rail engineering vehicle

Description of Rail Engineering Vehicle Bogie RTHZ36:

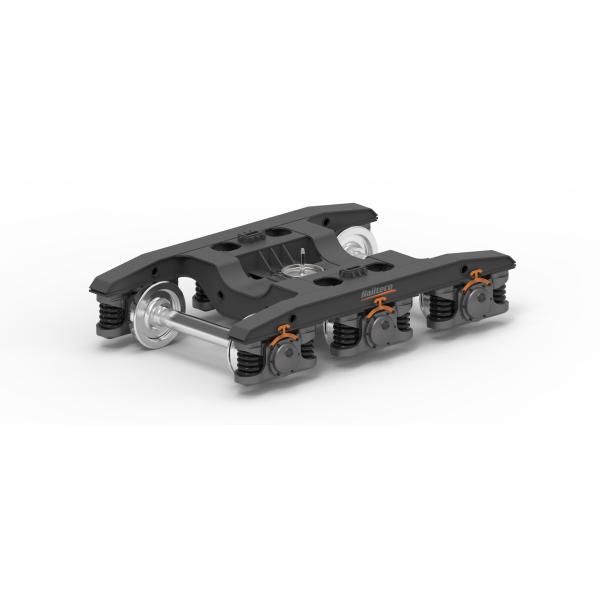

This kind of bogie is mainly used for low-speed and heavy-load wagon. It is mainly composed of frame, wheelset, axle box and guide frame

The bogie mainly adopts a welded frame type structure. The frame consists of two sets of side beams, two sets of cross beams and one set of middle beam. Two rigid side bearings are arranged on both sides of the frame. The wheels are made of integral silicon steel wheels; selfaligning roller bearings are used, and the springs adopt three-stage spring stiffness. The parts where connecting the bogie and the vehicle are made of non-metallic materials such as nylon and rubber.
The bogie is simple in structure, reliable in strength, and convenient in operation and maintenance.

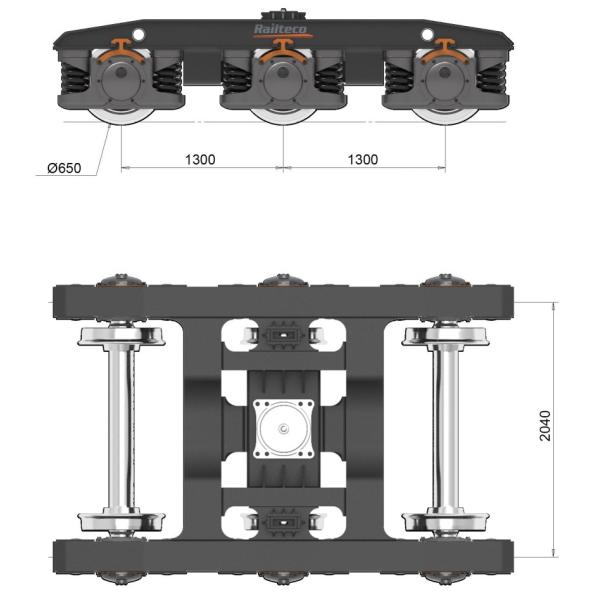

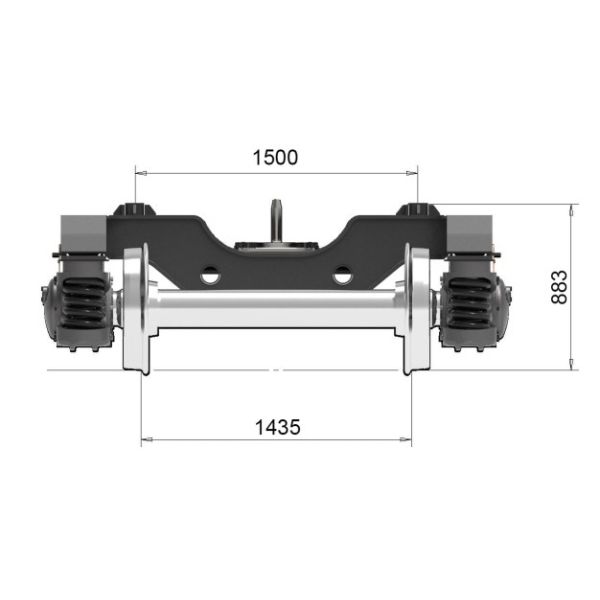

Main Technical Data of Rail Engineering Vehicle Bogie RTHZ36:

Gauge 1435mm
Axle Load 35t
Tare Weight 7.8t
Fixed Wheelbase 1300mm
Max. Running Speed 35km/h
Diameter of wheel Ø650mm

RTHZ36 Railcar Bogie 35km/H For Rail Engineering Vehicle

RTHZ36 Railcar Bogie 35km/H For Rail Engineering Vehicle

RTHZ36 Railcar Bogie 35km/H For Rail Engineering Vehicle
