AAR Standard 762m Gauge Passenger Train Bogie
AAR Standard 762m Gauge Passenger Train Bogie
Specifications
Brand Name :
Railteco
Model Number :
RTKZ1
Certification :
AAR,ISO,EN
Place of Origin :
China
MOQ :
One pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
4 months after advance payment
Packaging Details :
Railteco Standard Packing
Name :
TYPE RTKZ1 passenger car bogie
Axle load :
3.75t
Tare weight :
≤1.5t
Max operation :
40km/h
Diameter of wheels :
Ø596mm
Wheel Base :
1165mm
Gauge :
762m
Standard :
AAR,ISO,EN
Description

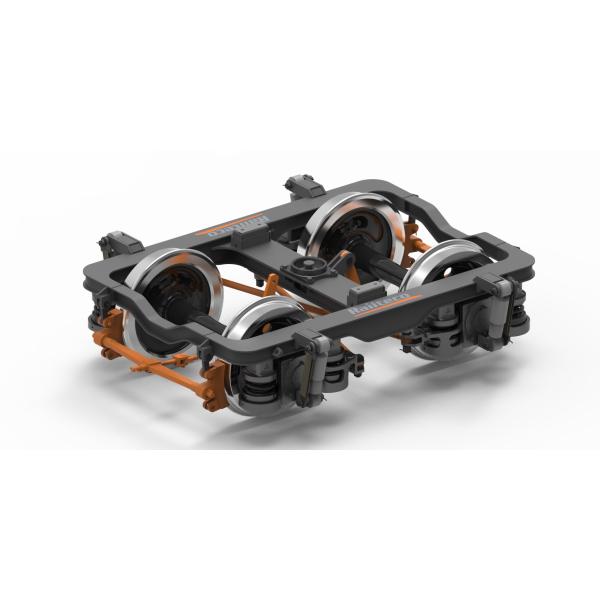

AAR standard Type RTKZ1 Welding Bogie for passenger car

Description of Coach Bogie RTKZ1:

This kind of bogie is available to be used on the railway gauge of 762mm and the operating speed is 40km/h. It is applied for Taiwan forest railway sightseeing passenger car. It is mainly comprised of axle box spring suspension, vertical damper, bogie frame, center plate, brake device, self-steering redial device etc. The diameter of wheels is 596mm. The welding bogie frame is comprised of side beam, center beam and end beam. The bogie adopts center plate and side bearer. The bogie adopts basic brake device. The braking leverage ratio is 4.84.

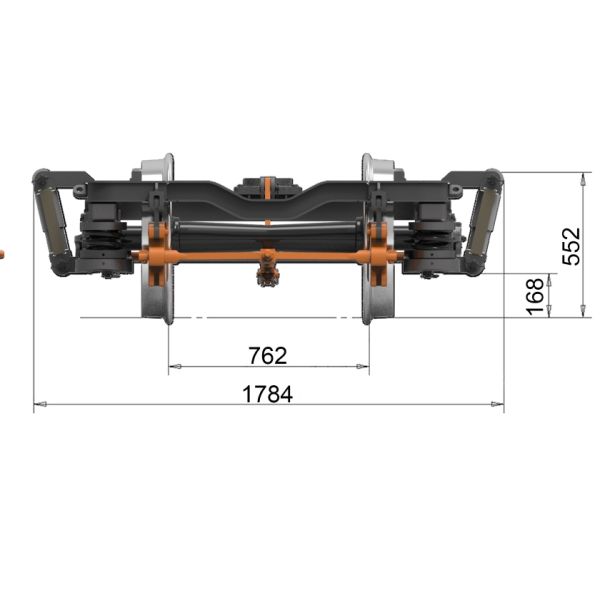

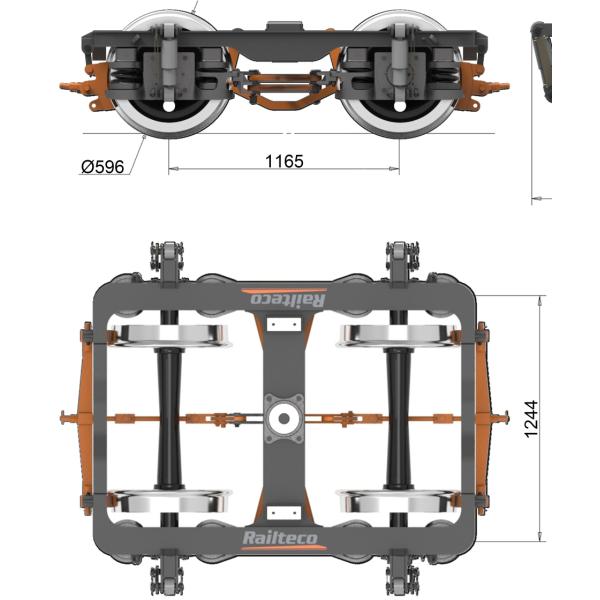

Main Technical Data of Coach Bogie RTKZ32:

Gauge7 762mm
Axle load(Max) 3.75t
Tare weight

≤1.5t
Wheel base 1165mm
Running speed(Max) 40km/h
Diameter of wheels Ø596mm

AAR Standard 762m Gauge Passenger Train BogieAAR Standard 762m Gauge Passenger Train BogieAAR Standard 762m Gauge Passenger Train Bogie
