AAR Standard Casting Railroad Wagon Freight Bogie
AAR Standard Casting Railroad Wagon Freight Bogie
Specifications
Brand Name :
Railteco
Model Number :
RTHZ27
Certification :
AAR,ISO
Place of Origin :
China
MOQ :
One pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
4 months after advance payment
Packaging Details :
Railteco Standard Packing
Name :
Railway Wagon Bogie RTHZ27
Axle load :
20T
Tare weight :
≤3.2t
Max operation :
80km/h
Diameter of wheels :
Ø762mm
Wheel Base :
1600mm
Brake ratio :
6.6
Gauge :
1000mm
Standard :
AAR
Description

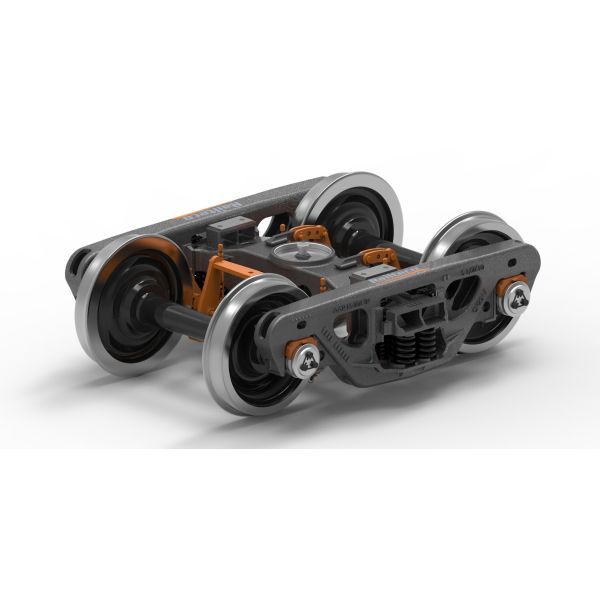

AAR Standard Type RTHZ27 Casting Bogie , Railroad Wagon Freight Bogie

Description of Railway Wagon Bogie RTHZ27:

This kind of bogie is available to be used on the railway gauge of 1000mm. It is applied for new-making and servicing wagons. The axle load is20t(Max) and the operating speed(Max) is 80km/h. The arrangement shall permit for ready accessibility for maintenance. This kind of bogie falls into categories of casting steel three-piece bogie. It is mainly comprised of wheel set, side frame, bolster, brake rigging, center spring suspension system, Constant friction type snubbing device, roller bearing, and side bearing etc.
Axle shall be in accordance with AAR M-101, the journal size of axle is 5 1/2ʺ×10ʺ.Wheel shall be in accordance with AAR M-107/M-208,the diameter of wheels is 762mm. The press-mounted of wheels and axle is according to AAR standard. Use Class D 5 1/2ʺ×10ʺ tapered roller bearings in accordance with AAR M-934, manufacturer is Timken,SKF or FAG.The bogie adopts basic brake device. The number of brake pull rod is 2 . The bogie adopts composite brake beam and composition brake shoe

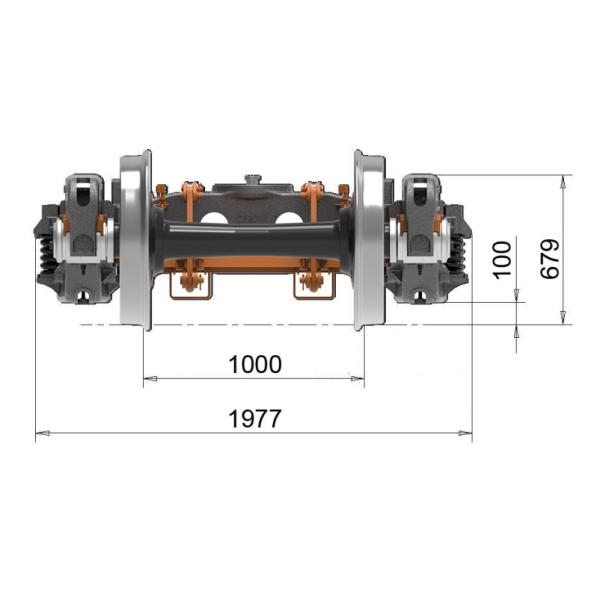

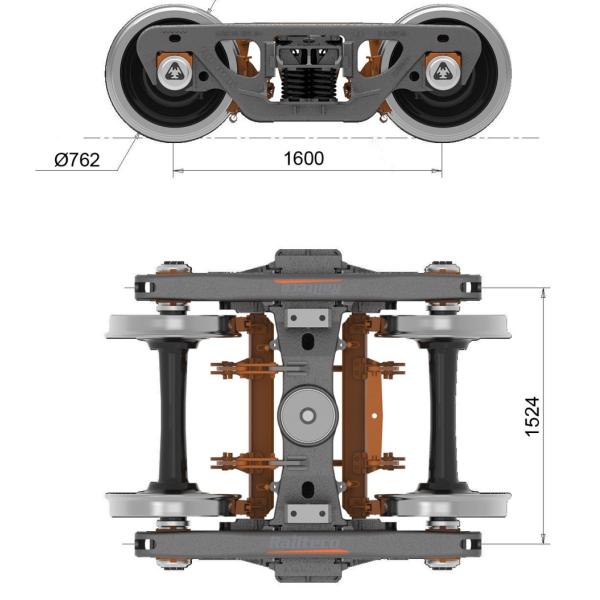

Main Technical Data of Railway Wagon Bogie RTHZ27:

Gauge 1000mm
Axle load(Max) 20t
Tare weight ≤3.2t
Wheel base 1600mm
Running speed(Max) 80km/h
Diameter of wheels Ø762mm

AAR Standard Casting Railroad Wagon Freight BogieAAR Standard Casting Railroad Wagon Freight BogieAAR Standard Casting Railroad Wagon Freight Bogie
