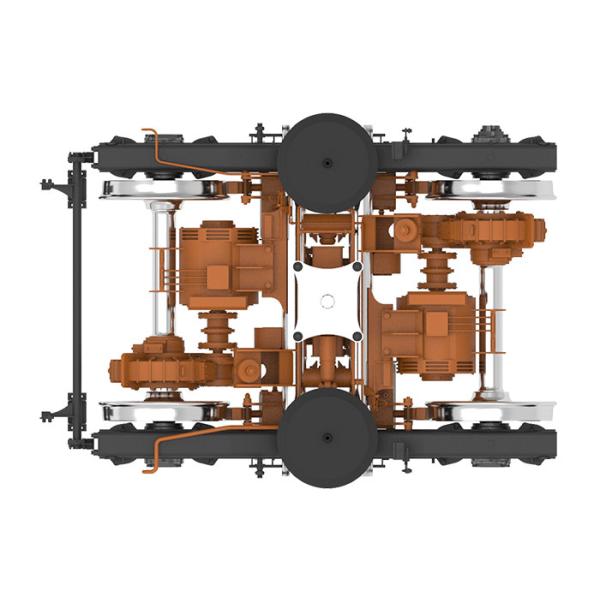

Wheel Base 2200mm Railway Bogie , Two Axle Metro Bogie RTHZ14
Wheel Base 2200mm Railway Bogie , Two Axle Metro Bogie RTHZ14
Wheel Base 2200mm Railway Bogie , Two Axle Metro Bogie RTHZ14
Wheel Base 2200mm Railway Bogie , Two Axle Metro Bogie RTHZ14
Wheel Base 2200mm Railway Bogie , Two Axle Metro Bogie RTHZ14
Wheel Base 2200mm Railway Bogie , Two Axle Metro Bogie RTHZ14
Specifications
Brand Name :
Railteco
Model Number :
RTHZ14
Place of Origin :
China
MOQ :
One pcs
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
4 months after advance payment
Packaging Details :
Railteco Standard Packing
Price :
Negotiable
Name :
Railway Metro Bogie RTHZ14
Axle Load :
≤14t
Tare Weight :
≤7t
Running Speed（Max） :
80km/h
Diameter of Wheels :
Ø840/770mm
Wheel Base :
2200mm
Description

Railway Bogie RTHZ14 Bogie Wagon Bogie Wheelset Bogie For Metro

Description of Railway Metro Bogie RTHZ14:

This kind of bogie is two-axle bogie which is mainly designed for metro vehicle operating on the standard railway gauge of 1435mm. It has two categories of bogies, motor bogie and trailer bogie, both of which have a compact structure and good dynamic performance. The frame adopts a welding structure using the box type side beam and seamless steel tube crossbeam, showing "H" shape; the suspension system adopts rubber stack type spring and air spring. The two-stage spring for reducing vibration can offer a comfortable condition for the passenger; The motor bogie adopts three-phase traction motor and gear box for energy transmission; The center pivot and "Z" type draw-bar transmits traction and braking force from the bogie to the car body, and the braking system has four block brake units on each bogie, two of which are equipped with spring brake actuators for parking brake. Some trailer bogie is additionally equipped with an antenna for ATP system.

Main Technical Data of Railway Metro Bogie RTHZ14:

Gauge 1435mm
Axle load ≤14T
Tare weight (Max.) ≤7T
Wheel base 2200mm
Running speed(Max) 80km/h
Diameter of wheels 840/770mm
