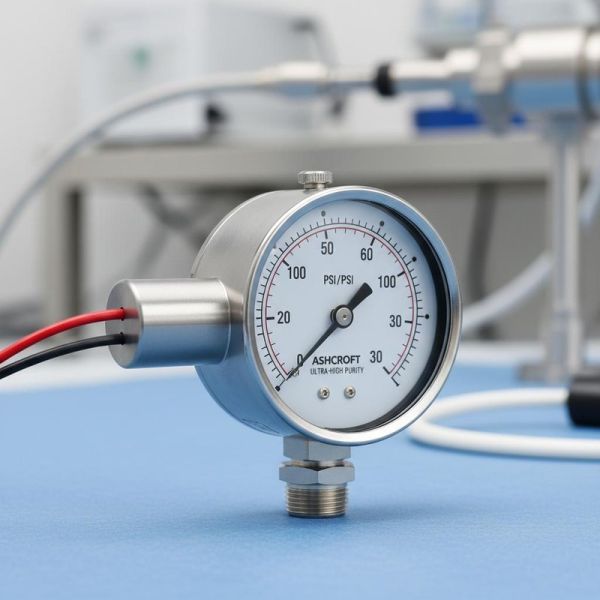

50 mm HPS High Purity Pressure Gauge With Reed Switch Stainless Steel Structure Ultra-high purity gauge with reed switch alarm output. For semiconductor and cleanroom systems.
50 mm HPS High Purity Pressure Gauge With Reed Switch Stainless Steel Structure Ultra-high purity gauge with reed switch alarm output. For semiconductor and cleanroom systems.
50 mm HPS High Purity Pressure Gauge With Reed Switch Stainless Steel Structure Ultra-high purity gauge with reed switch alarm output. For semiconductor and cleanroom systems.
50 mm HPS High Purity Pressure Gauge With Reed Switch Stainless Steel Structure Ultra-high purity gauge with reed switch alarm output. For semiconductor and cleanroom systems.
Specifications
Model Number :
HPS
Payment Terms :
T/T
Mounting options :
Panel, Wall, Pipe
Measurement range :
0 to 1000 psi
Protection rating :
IP65/IP67
Price :
20-30
Material :
Stainless Steel
Connection type :
Threaded, Flanged
Delivery Time :
5-7 WORK DAYS
Response time :
≤ 10 ms
Place of Origin :
USA
Application :
Industrial Process Control, HVAC, Automotive
Product name :
Pressure Measurement Instruments
Output signal :
4-20 mA, 0-10 V, Digital
Accuracy :
±0.25% of full scale
Certification :
CO
MOQ :
1
Pressure type :
Gauge, Absolute, Differential
Brand Name :
Ashcroft
Display type :
LCD/LED Digital Display
Supply Ability :
99PCS 4-6 WEEKS
Operating temperature :
-40°C to 85°C
Power supply :
24 V DC
Description

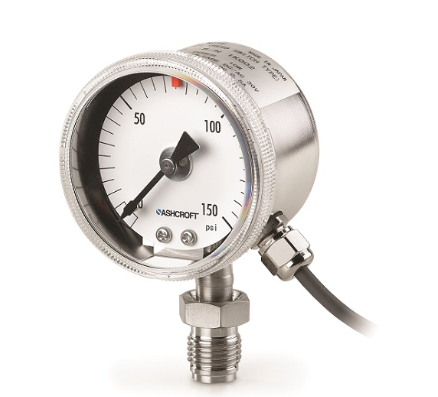

Ashcroft HPS Ultra-High Purity Pressure Gauge with Reed Switch
The 50 mm HPS ultra-high purity pressure gauge features a stainless steel structure and liquid receiving components, designed for precision measurement in demanding industrial applications.
Technical Specifications
Accuracy ±1.6% of span
±5.0% of span
Dial Size 50 mm
Pressure Ranges 0 to 60 psi, 0 to 3,000 psi
Surface Finish Tube and fitting < .38 μm Ra
Process Connection ¼ Male or female VCR® type (9⁄16-18UNF)
Process Connection Location Lower
Window Material Polycarbonate
Dial White face, aluminum
Pointer Black, aluminum
Approvals RoHS
Wetted Components
Bourdon Tube 316L SS
Gland/Socket Joints 316L SS Argon Arc Fully Welded
Non-Wetted Components
Case 304 SS
Window Polycarbonate
Temperature Limits
Process Temperature Range -4 °F to 140 °F (-20 °C to 60 °C)
Reed Switch Specifications
Power 10 W
Maximum Voltage 30V AC/DC
Maximum Current 0.5A DC
Dead Band Within 10% of span
