Ashcroft HPX40/50/63 High Purity Pressure Gas Gauge Undergoes Ultrasonic Cleaning
Ashcroft HPX40/50/63 High Purity Pressure Gas Gauge Undergoes Ultrasonic Cleaning
Ashcroft HPX40/50/63 High Purity Pressure Gas Gauge Undergoes Ultrasonic Cleaning
Ashcroft HPX40/50/63 High Purity Pressure Gas Gauge Undergoes Ultrasonic Cleaning
Ashcroft HPX40/50/63 High Purity Pressure Gas Gauge Undergoes Ultrasonic Cleaning
Ashcroft HPX40/50/63 High Purity Pressure Gas Gauge Undergoes Ultrasonic Cleaning
Ashcroft HPX40/50/63 High Purity Pressure Gas Gauge Undergoes Ultrasonic Cleaning
Ashcroft HPX40/50/63 High Purity Pressure Gas Gauge Undergoes Ultrasonic Cleaning
Specifications
Brand Name :
Ashcroft
Model Number :
HPX40/50/63
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
20-30
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Operating temperature :
-40°C to 85°C
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Material :
Stainless Steel
Application :
Industrial Process Control, HVAC, Automotive
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Power supply :
24 V DC
Accuracy :
±0.25% of full scale
Product name :
Pressure Measurement Instruments
Connection type :
Threaded, Flanged
Mounting options :
Panel, Wall, Pipe
Description

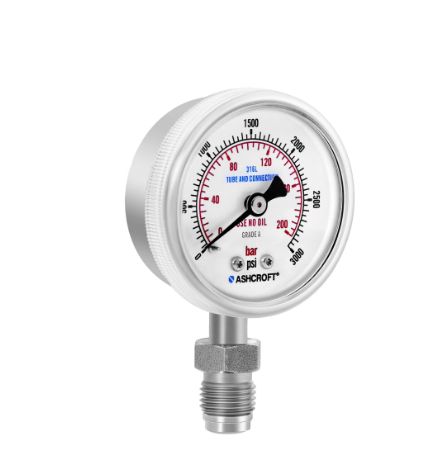

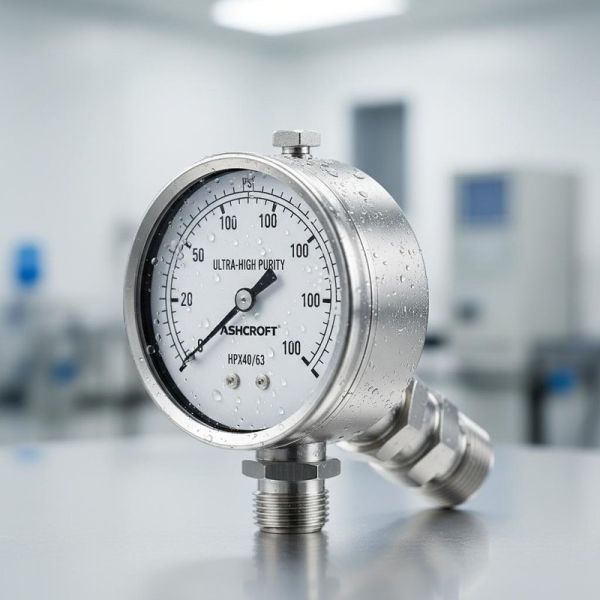

The Ashcroft HPX40/50/63 HPX ultra-high purity pressure gauge undergoes ultrasonic cleaning, delivering exceptional performance and reliability for ultra-high purity gas delivery systems.
Product Specifications
Accuracy
  • Dial diameter 40mm (1-1/2"): 3-2-3% x full scale, Class B, compliant with ASME B40.1
  • Dial diameter 50mm (2")/63mm (2-1/2"): 2-1-2% x full scale, Class A, compliant with ASME B40.1
Available Sizes
40mm (1-1/2"), 50mm (2"), 63mm (2-1/2")
Pressure Ranges
  • -0.1~0 MPa to -0.1~0.9 MPa
  • 0~0.1 MPa to 0~40 MPa (0~15 psi to 0~6000 psi) or equivalent ranges
Feature Specification
Process Connection Size VCR® Locking seal: 9/16-18UNF rotatable internal or external thread
Process Connection Location Radial and axial
Protection Level IP 54 EN 60 529/IEC 529
