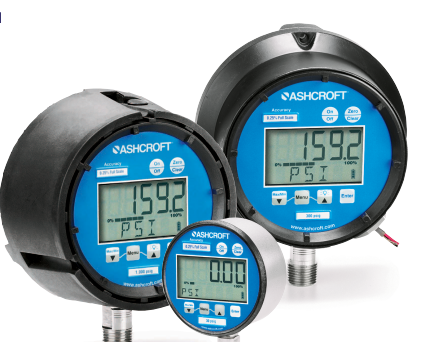

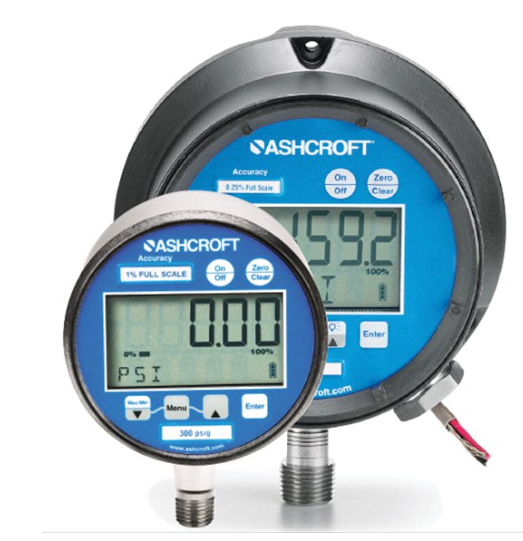

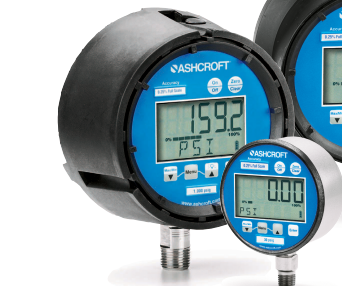

Ashcroft 2274 Precision Digital Pressure Gauge 12-36VDC 4-20mA Output IP65 Enclosure
Ashcroft 2274 Precision Digital Pressure Gauge 12-36VDC 4-20mA Output IP65 Enclosure
Ashcroft 2274 Precision Digital Pressure Gauge 12-36VDC 4-20mA Output IP65 Enclosure
Ashcroft 2274 Precision Digital Pressure Gauge 12-36VDC 4-20mA Output IP65 Enclosure
Ashcroft 2274 Precision Digital Pressure Gauge 12-36VDC 4-20mA Output IP65 Enclosure
Ashcroft 2274 Precision Digital Pressure Gauge 12-36VDC 4-20mA Output IP65 Enclosure
Specifications
Brand Name :
Ashcroft
Model Number :
2274
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
20-30
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Operating temperature :
-40°C to 85°C
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Material :
Stainless Steel
Application :
Industrial Process Control, HVAC, Automotive
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Power supply :
24 V DC
Accuracy :
±0.25% of full scale
Product name :
Pressure Measurement Instruments
Connection type :
Threaded, Flanged
Mounting options :
Panel, Wall, Pipe
Description
Ashcroft 2274 Digital Pressure Gauge

The Ashcroft 2274 digital pressure gauge delivers excellent functionality and performance for industrial applications. Powered by 12-36VDC, this model offers flexible output options between switch output and 4-20mA output.

Product Overview

The Ashcroft 2074 series digital pressure gauges provide reliable performance for industrial testing and measurement applications. These gauges are available in multiple power configurations to suit various industrial systems.

Model 2074
Battery powered for maximum flexibility
Model 2174
Loop powered 4-20 mA (12-36 Vdc)
Model 2274
DC Line powered (12-36 Vdc)
Technical Specifications
Accuracy & Performance

±0.25% of span, terminal point accuracy

Temperature Specifications

Temperature Error (Zero & Span): 0.04% of span/°F (from 70 °F reference temperature)

Version Process Temperature Storage Temperature
2074, 2174, 2274 14 °F to 140 °F (10 °C to 60 °C) –4 °F to 158 °F (–20 °C to 70 °C)
Physical Specifications
  • Sizes: 3˝, 4½˝
  • Inlet Fitting: ¼ or ½ NPT typical (additional options available)
  • Pressure Ranges: Vacuum to 20,000 psi
  • Process Connection Location: Lower, top, left or right side
  • Enclosure Rating: Weatherproof, IP65
Electrical Connections
  • 4½˝ case: Screw down terminals
  • 3˝ case: Jacketed cable extended 3 feet
  • Custom cable length available (OPT.)
Display Features
  • Type: LCD
  • Display Digits: 5
  • Character Height: 3˝ case: 0.60˝ | 4½˝ case: 0.88˝
  • Backlight: Model 2174 requires battery backup to power the light (OPT.)
  • Bar Graph: 10 segment
  • Battery Life: 3˝: > 400 hours | 4½˝: > 2,000 hours
Material Specifications
Non-Wetted Components
Model Case Material
3˝ 304 Stainless Steel
4½˝ Fiberglass reinforced thermoplastic or black epoxy coated aluminum
Wetted Components
Model Diaphragm Process Connection Joints
2074, 2174, 2274 17-4 Stainless Steel 316L Stainless Steel Laser Weld
