Specifications
Brand Name :
Ashcroft
Model Number :
T5500E
Certification :
co
Place of Origin :
USA
MOQ :
1
Price :
10-100usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Mounting :
Direct or Remote
Measuring Range :
-100KPa ~260MPa
Power :
9V alkaline
Dial :
Aluminum
Turndown Ratio :
100:1
Pressure :
Low Pressure
Display Type :
Analog
Operating Temperature :
-40 to 60 °C
Case Material :
Stainless Steel
Dial Siza :
60mm,100mm,150mm
Customized Support :
OEM
Movement :
Brass
Pressure Range :
Vacuum--15000psi
Material :
stainless steel
Measuring Medium :
Pressure, Level and Flow
Response time :
≤ 10 ms
Description

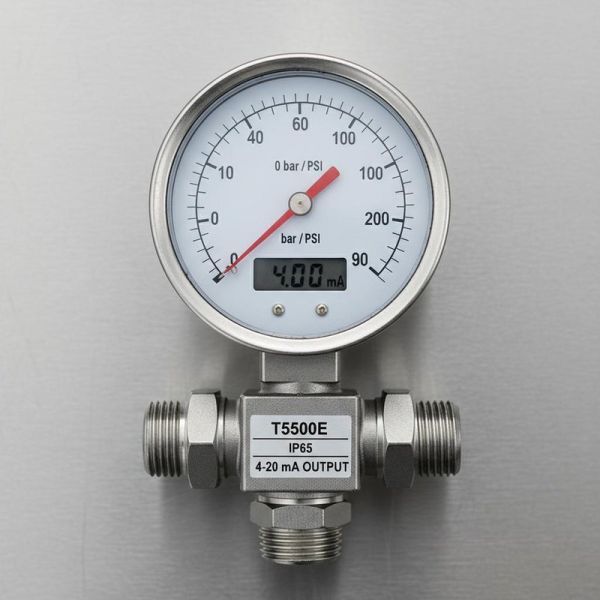

T5500E All Stainless Steel Spring Tube Pressure Gauge with Analog Signal Output
Ashcroft all stainless steel pressure gauge with built-in pressure transmitter, providing both local display and analog signal output capabilities.
Product Specifications
Accuracy: 0.5% of span
Response Time: ≤ 1 ms
Repeatability: ≤ +/-0.3% Compound F.S
Temperature Effects: +/-0.3%/10K from 0/50°C (32/122°F)
Range: -30˝ Hg/0 to 0/20,000 psi (-1/0 to 0/1600 bar)
Mechanical Specifications
Size 100 mm (4˝)
Sensor Material 17-4PH® Stainless steel
Process Connection Location Lower
Rating IP65
Process Connection Size ¼ NPT Male, ½ NPT Male
Case Style Open front with rear blowout disk
Movement Adjustable
Window Material Safety glass
Dial Aluminum
Weight 2.68 lbs (1.0 kg)
Vent Plug Top
Pointer Aluminum (STD.), Micrometer Adjustable (OPT.)
Weather Protection IP65
Dampening Options Performance PLUS!™, throttle screw, dampeners, and snubbers
Wetted Components
Bourdon Tube Process Connection Joints
316L SS, Sensor (17-4 PH® SS) 316 SS Welded
Non-Wetted Components
Case Ring Back Cover
304 SS Bayonet, 304 SS Stainless Steel
Electrical Specifications
Power Supply Requirements Supply Voltage: 12-30 Vdc
Supply Current Maximum 20 mA
Output Signal 4-20 mA
Isolation Voltage 350 Vac
Max. Loop Resistance ≤ (UB – 9.5 V)/0.02 A
Case & Electrical Termination Isolation > 1 M ohm @ 50 Vdc
Key Benefits
  • IP65 Protection
  • Suitable for aggressive environments and process fluids
T5500E
4˝ dial size
Temperature Limits
Version Ambient Process Storage
Dry -4°F to 158°F (-20°C to 70°C) -13°F to 185°F (-25°C to 85°C) -40°F to 185°F (-40°C to 85°C)
