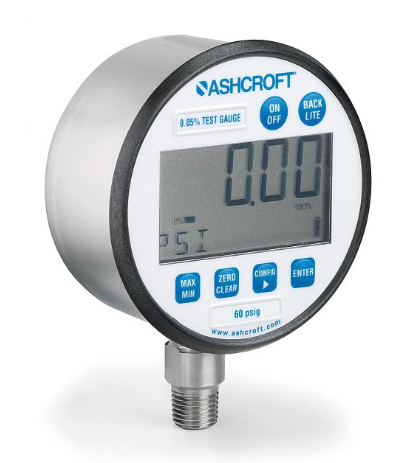

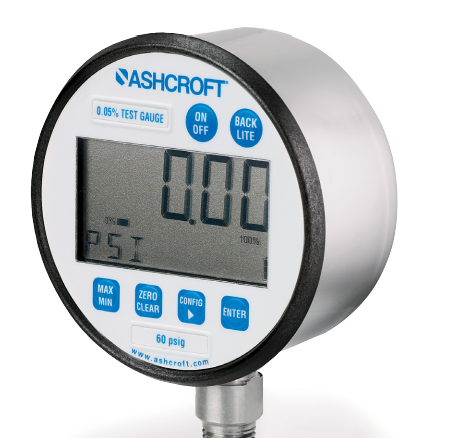

Ashcroft 2086 Digital Pressure Meter With Weatherproof IP65 Enclosure 5 Digit LCD Display
Ashcroft 2086 Digital Pressure Meter With Weatherproof IP65 Enclosure 5 Digit LCD Display
Ashcroft 2086 Digital Pressure Meter With Weatherproof IP65 Enclosure 5 Digit LCD Display
Ashcroft 2086 Digital Pressure Meter With Weatherproof IP65 Enclosure 5 Digit LCD Display
Ashcroft 2086 Digital Pressure Meter With Weatherproof IP65 Enclosure 5 Digit LCD Display
Ashcroft 2086 Digital Pressure Meter With Weatherproof IP65 Enclosure 5 Digit LCD Display
Specifications
Brand Name :
Ashcroft
Model Number :
2086
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
20-30
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Operating temperature :
-40°C to 85°C
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Material :
Stainless Steel
Application :
Industrial Process Control, HVAC, Automotive
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Power supply :
24 V DC
Accuracy :
±0.25% of full scale
Product name :
Pressure Measurement Instruments
Connection type :
Threaded, Flanged
Mounting options :
Panel, Wall, Pipe
Description
Ashcroft 2086 Digital Pressure Gauge
A high-precision testing instrument delivering excellent performance with total full-scale error including linear error, hysteresis, and repeatability error.
Key Features: ±0.25% accuracy, weatherproof IP65 enclosure, 5-digit LCD display
Accuracy Specifications
  • 2089 Model: ±0.05% of span accuracy
  • 2086 Model: ±0.10% of span accuracy
  • 2084 Model: ±0.25% of span accuracy
Terminal Point, Total Error Band (TEB)
Includes hysteresis, linearity, repeatability and temperature (0°F to 150°F)
Physical Specifications
Specification Details
Size 3˝
Case Material 300 Stainless Steel
Case Finish Tumble polished
Process Connection 1⁄4 NPT Male
Process Connection Location Lower, left or right
Mounting Stem
Enclosure Rating Weatherproof, IP65
Display Features
Feature Specification
Type LCD
Display Digits 5
Character Height 0.66˝
Backlight Off by default, programmable
Bar Graph 10 segment
Battery Life 1,000 hrs. (3 AAA alkaline batteries)
Pressure Ranges
Gauge, compound, absolute and vacuum through 7,000 psi (see engineering units for other measurement units)
Additional Features
  • Temperature Corrected: Yes
  • Calibration Chart: 10 point traceable calibration chart standard for model 2089 only, optional for models 2084 and 2086
Storage & Protection
  • Stainless steel face cover (included)
  • Zippered gauge pouch (included)
  • Black or orange rubber boot (optional)
  • Weatherproof ABS gauge carrying case (optional)
Material Specifications
Model Non-Wetted Components
2084, 2086, 2089 304 Stainless steel
Model Wetted Components
2084, 2086, 2089 316 Stainless steel
Temperature Limits
Version Process Storage
2084, 2086, 2089 0°F to 150°F (–18°C to 65°C) –40°F to 180°F (–40°C to 82°C)
