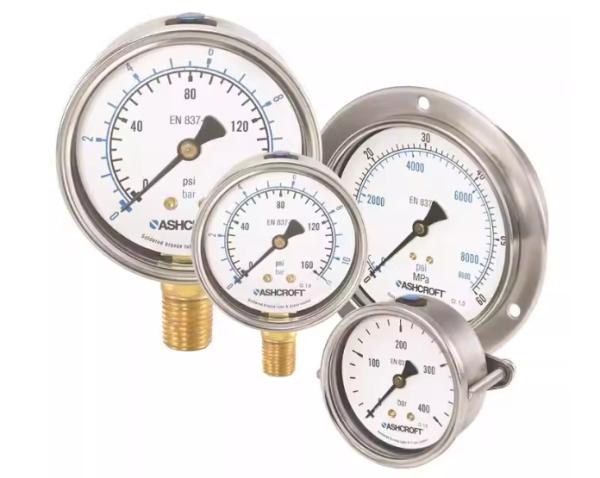

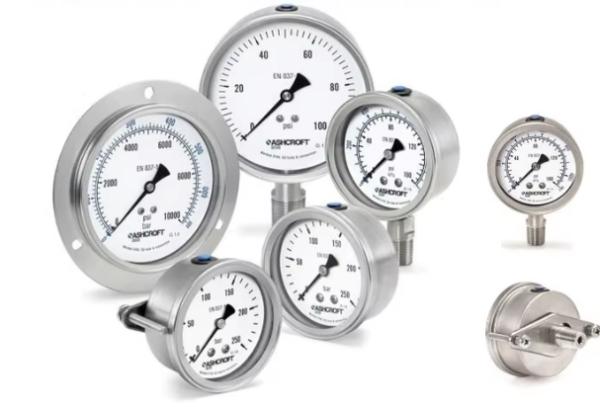

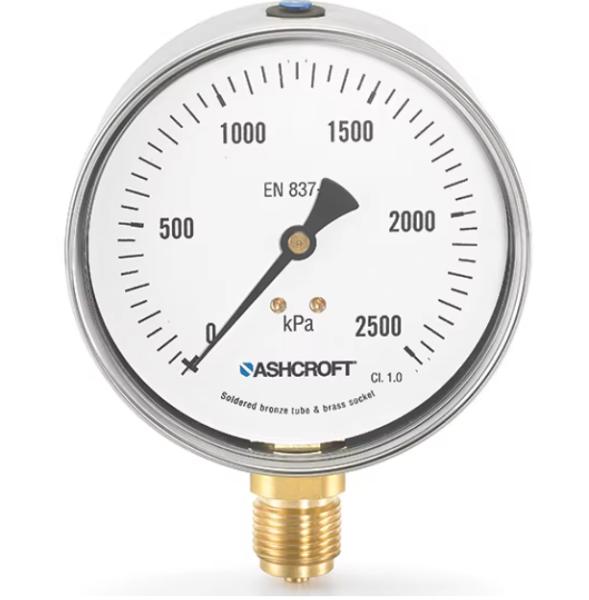

Pharmaceutical Sanitary Pressure Gauge 63mm 100mm Dial With Fully Welded Structure
Pharmaceutical Sanitary Pressure Gauge 63mm 100mm Dial With Fully Welded Structure
Pharmaceutical Sanitary Pressure Gauge 63mm 100mm Dial With Fully Welded Structure
Pharmaceutical Sanitary Pressure Gauge 63mm 100mm Dial With Fully Welded Structure
Pharmaceutical Sanitary Pressure Gauge 63mm 100mm Dial With Fully Welded Structure
Pharmaceutical Sanitary Pressure Gauge 63mm 100mm Dial With Fully Welded Structure
Pharmaceutical Sanitary Pressure Gauge 63mm 100mm Dial With Fully Welded Structure
Pharmaceutical Sanitary Pressure Gauge 63mm 100mm Dial With Fully Welded Structure
Specifications
Brand Name :
Ashcroft
Model Number :
C1033
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
10-100USD
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Movement :
Brass
Overpressure Protection :
150% of Full Scale
Case Dimensions :
69mm Dia
Temperature Range :
-40 to 85°C
Pointer :
Aluminum
Working Temperature :
-10℃-50℃
Ingress Protection :
IP67
Display :
LCD
Supply Voltage :
10-30 VDC
Bourdon Tube Material :
Phosphor Bronze
Structure :
pump accessories
Communication Protocol :
HART
Measure Range :
-0.1-200Mpa
Model :
pressure gauge
Dial Size :
4 inches
Description

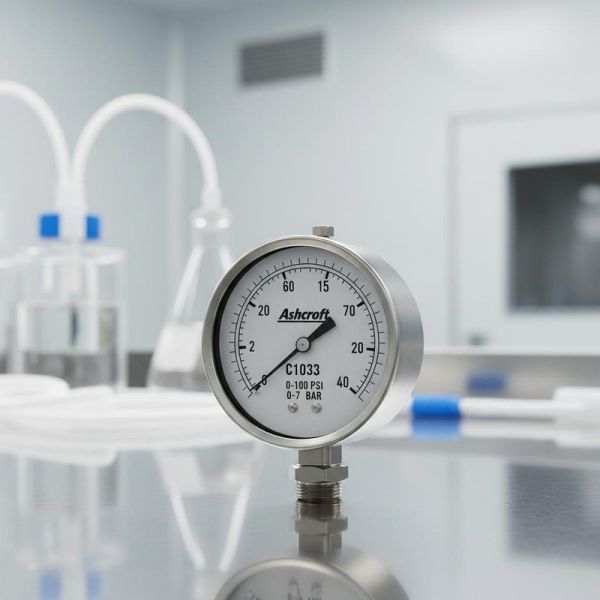

Ashcroft C1033 Sanitary Pressure Gauge

High-performance sanitary pressure gauge with fully welded structure that minimizes internal dead corners, making it ideal for pharmaceutical applications and other sanitary processes.

Performance Specifications
Pressure Range Refer to Range and Accuracy Table
Accuracy Refer to Range and Accuracy Table
Dial Size 63mm, 100mm
Case Material 304 Stainless Steel
Window Material Polycarbonate, safety glass (optional)
Movement Material 300 Stainless Steel
Pointer Black aluminum
Process Connection Location Lower, Lower Back
Wetted Materials 316L Stainless Steel, Hastelloy® C276 (Optional)
Medium Temperature Maximum: 138°C (For higher temperatures, cooling tower required or consult factory)
Weather Protection IP65
Case Fill Food grade glycerin, food grade silicone oil
Diaphragm System Oil Fill Food-grade silicone oil, distilled water
Surface Roughness Diaphragm Ra ≤ 0.38µ; Laser welding seam Ra ≤ 0.76µ; Machined surface Ra ≤ 0.76µ
Process Connections Tri-Clamp®, DIN 32676, BS 4825, ISO 2852
Dial Design Black figures on white background
Key Features
  • Fully welded sanitary construction
  • Minimized internal dead corners
  • IP65 weather protection rating
  • Food-grade fill fluids
  • Multiple process connection options
  • High surface finish quality
All specifications are subject to change without notice. All sales subject to standard terms and conditions. Ashcroft® and Trust the Shield® are trademarks of Ashcroft Inc.
©2025 Ashcroft en. C1033, Rev. E, 07/25
