Fully Welded Deep Sea Pressure Gauge For Underwater Environments 15 Psi - 20000 Psi
Fully Welded Deep Sea Pressure Gauge For Underwater Environments 15 Psi - 20000 Psi
Fully Welded Deep Sea Pressure Gauge For Underwater Environments 15 Psi - 20000 Psi
Fully Welded Deep Sea Pressure Gauge For Underwater Environments 15 Psi - 20000 Psi
Fully Welded Deep Sea Pressure Gauge For Underwater Environments 15 Psi - 20000 Psi
Fully Welded Deep Sea Pressure Gauge For Underwater Environments 15 Psi - 20000 Psi
Fully Welded Deep Sea Pressure Gauge For Underwater Environments 15 Psi - 20000 Psi
Fully Welded Deep Sea Pressure Gauge For Underwater Environments 15 Psi - 20000 Psi
Specifications
Brand Name :
Ashcroft
Model Number :
Ashcroft SC
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
20-30
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Operating temperature :
-40°C to 85°C
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Material :
Stainless Steel
Application :
Industrial Process Control, HVAC, Automotive
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Power supply :
24 V DC
Accuracy :
±0.25% of full scale
Product name :
Pressure Measurement Instruments
Connection type :
Threaded, Flanged
Mounting options :
Panel, Wall, Pipe
Description

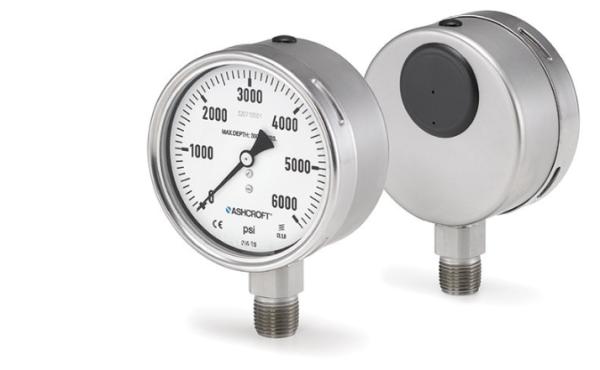

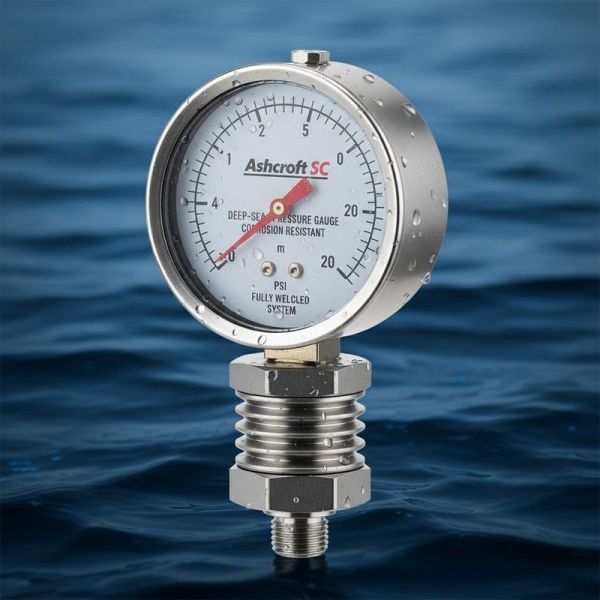

Ashcroft SC Deep-Sea Pressure Gauge
Excellent durability for underwater environments with fully welded measurement system and corrosion-resistant structural materials.
Technical Specifications
Accuracy ±1.0% of span
Case Size 100 mm
Pressure Range 15 psi to 20,000 psi
Process Connection Location Lower, back
Process Connection 1⁄2 NPT or BSP
Case Style Open front
Fill Fluid 100% Glycerin filled
Window Thickness 4 mm
Movement 304 Stainless steel
Dial Aluminum, white background, black markings
Pointer Black, aluminum
Ring Bayonet lock
Weather Protection IP68 (water depth)
Mounting Direct, panel or surface
Operating Temperature 40 °F to 120 °F (4 °C to 50 °C)
Approvals CE/UKCA
Non-Wetted Components
  • Case: 316L Stainless steel
  • Screwed Bezel Ring: 316L Stainless steel
Wetted Components
  • Bourdon Tube: 316L Stainless steel
  • Pressure Connection: 316L Stainless steel
