Ashcroft 1131 Digital Differential Pressure Gauge 0 - 100 Psi Differential Pressure Meter
Ashcroft 1131 Digital Differential Pressure Gauge 0 - 100 Psi Differential Pressure Meter
Ashcroft 1131 Digital Differential Pressure Gauge 0 - 100 Psi Differential Pressure Meter
Ashcroft 1131 Digital Differential Pressure Gauge 0 - 100 Psi Differential Pressure Meter
Ashcroft 1131 Digital Differential Pressure Gauge 0 - 100 Psi Differential Pressure Meter
Ashcroft 1131 Digital Differential Pressure Gauge 0 - 100 Psi Differential Pressure Meter
Ashcroft 1131 Digital Differential Pressure Gauge 0 - 100 Psi Differential Pressure Meter
Ashcroft 1131 Digital Differential Pressure Gauge 0 - 100 Psi Differential Pressure Meter
Specifications
Brand Name :
Ashcroft
Model Number :
1131
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
20-50USD
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Operating temperature :
-40°C to 85°C
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Power supply :
24 V DC
Product name :
Pressure Measurement Instruments
Connection type :
Threaded, Flanged
Mounting options :
Panel, Wall, Pipe
Description

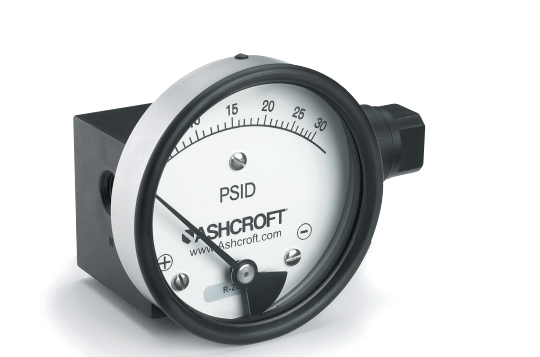

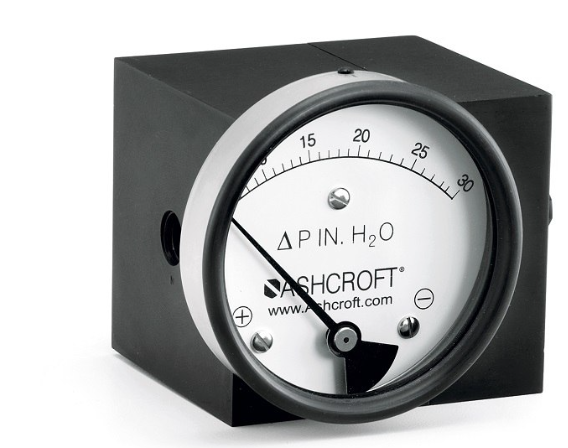

Ashcroft 1131 Differential Pressure Gauge
An economical instrument designed to measure the difference between two pressure sources with reliable accuracy and durable construction.
Product Specifications
Accuracy ±2% ascending pressure full scale differential
Dial Sizes 2½˝, 3½˝, 4˝, 4½˝, 6˝
Pressure Ranges 0-100 psi
Process Connection Location Lower, back/in-line
Process Connection Sizes ¼ NPT Female (STD.), 1⁄8 or ½ NPT Female Adapters (OPT.)
Migration Zero
Maximum Process Temperature 175°F (80°C)
Minimum Ambient Temperature Buna-N Diaphragm: -4°F (-20°C)
EPDM Diaphragm: -40°F (-40°C)
Viton Diaphragm: 32°F (0°C)
Maximum Static Pressure 3,000 psi
Weather Protection IP65
Reed Switch Ratings
Switches Contact Rating Current Voltage
SPST 10 VA ac (rms) or dc (Max.) 0.5 Amp ac (rms) or dc (Max.) 100 Vac/Vdc (Max.)
SPDT 3 VA ac (rms) or dc (Max.) 0.3 AMP ac (rms) or dc (Max.) 30 Vac/Vdc (Max.)
Wetted Components
  • Actuator O-Rings/Diaphragm: Buna-N Rolling Diaphragm
  • Body Material: Aluminum, brass, or stainless steel
  • Additional Components: Ceramic magnet and stainless steel spring
Non-Wetted Components
  • Case Material: Stainless steel
  • Window: Glass (STD.), safety glass or plastic (OPT.)
