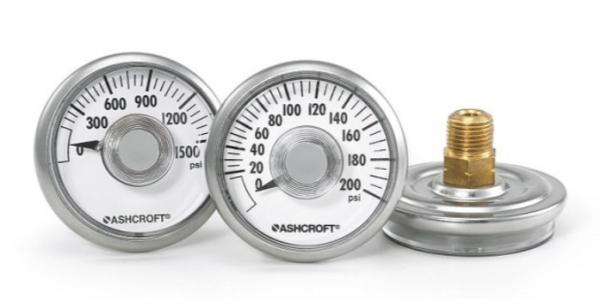

Ashcroft 12DDG Direct Drive Pressure Measurement Gauge Stainless Steel In Confined Spaces
Ashcroft 12DDG Direct Drive Pressure Measurement Gauge Stainless Steel In Confined Spaces
Specifications
Brand Name :
Ashcroft
Model Number :
12DDG
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
20-50USD
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Material :
Stainless Steel
Application :
Industrial Process Control, HVAC, Automotive
Operating temperature :
-40°C to 85°C
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Power supply :
24 V DC
Product name :
Pressure Measurement Instruments
Connection type :
Threaded, Flanged
Mounting options :
Panel, Wall, Pipe
Description
Ashcroft 12DDG Direct Drive Pressure Gauges
Ashcroft 12DDG direct drive pressure gauges provide an economical and practical solution for pressure measurement in confined spaces. These gauges feature a unique direct drive mechanism without traditional movement components.
Product Specifications
Accuracy: ±2% of span at setpoint (normally 50% of span)
UL Listed Option: ±3.5% of span in middle 3⁄5 of scale
Sizes: 12DDG: 11⁄4˝, 15DDG: 11⁄2˝
Repeatability: Better than 1%
Pressure Range: 60 - 4,000 psi
Process Connection Location: Back
Process Connection Size: 1⁄8 NPT Male, ¼ NPT Male
Dial: Black figures on white background
Pointer: Brass, painted black
Dampening Options: Silicone dampened tube
Approvals
UL 404, High Pressure Gas (Option) (1,500 psi - 4,000 psi)
Wetted Components
  • Coil: Beryllium copper
  • Process Connection: Brass
  • Restrictor: Safety plug (1,500 - 4,000 psi ranges)
Non-Wetted Components
  • Case: Stainless steel (sealed)
  • Window: Polycarbonate
Temperature Specifications
Model Ambient Temperature Process Temperature Storage Temperature
12DDG -40°F to 150°F (-40°C to 65°C) -40°F to 150°F (-40°C to 65°C) -40°F to 150°F (-40°C to 65°C)
15DDG -40°F to 150°F (-40°C to 65°C) -40°F to 150°F (-40°C to 65°C) -40°F to 150°F (-40°C to 65°C)
