Specifications
Brand Name :
Ashcroft
Model Number :
1133
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
20-50USD
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Operating temperature :
-40°C to 85°C
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Power supply :
24 V DC
Product name :
Pressure Measurement Instruments
Connection type :
Threaded, Flanged
Mounting options :
Panel, Wall, Pipe
Description

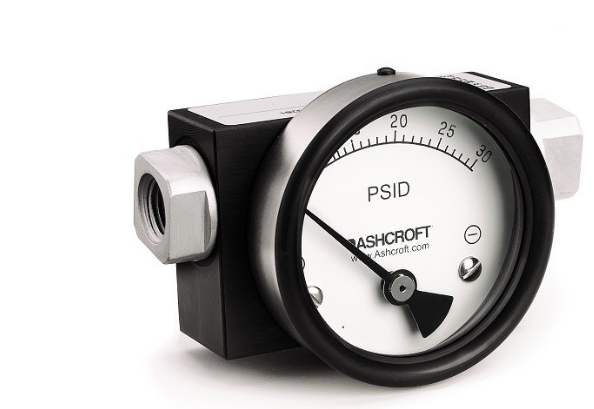

Ashcroft 1133 Differential Pressure Gauge
An economical instrument designed to measure pressure differences between two sources under low differential pressure or high static pressure conditions.
Product Specifications
Performance Characteristics
Accuracy ±2% ascending pressure full scale differential
Dial Sizes 3½˝, 4˝, 4½˝, 6˝
Ranges 0-1 IWD to 25 IWD
Migration Zero
Maximum Process Temperature 175° F (80° C)
Maximum Static Pressure 500 psi
Weather Protection IP65
Connection Details
Process Connection Location Lower, back, in-line
Process Connection Sizes ¼ NPT Female (STD.), 1∕8 or ½ NPT Female Adapters (OPT.)
Reed Switch Ratings
Switches Contact Rating Current Voltage
SPST 10 VA ac (rms) or dc (Max.) 0.5 Amp ac (rms) or dc (Max.) 100 Vac/Vdc (Max.)
SPDT 3 VA ac (rms) or dc (Max.) 0.3 AMP ac (rms) or dc (Max.) 30 Vac/Vdc
Material Composition
Wetted Components
Component Material
Actuator Convoluted diaphragm
O-Rings/Diaphragm Buna-N
Body Material Aluminum or stainless steel
Additional Components Ceramic magnet & stainless steel spring
Non-Wetted Components
Component Material
Case Material Stainless Steel
Window Glass (STD.), safety glass or plastic (OPT.)
Model 1133 Features: Available in 3½˝, 4˝, 4½˝, and 6˝ dial sizes for versatile application requirements.
