All Stainless Steel Spring Tube Pressure Meter Industrial Ashcroft 8008S
All Stainless Steel Spring Tube Pressure Meter Industrial Ashcroft 8008S
All Stainless Steel Spring Tube Pressure Meter Industrial Ashcroft 8008S
All Stainless Steel Spring Tube Pressure Meter Industrial Ashcroft 8008S
All Stainless Steel Spring Tube Pressure Meter Industrial Ashcroft 8008S
All Stainless Steel Spring Tube Pressure Meter Industrial Ashcroft 8008S
All Stainless Steel Spring Tube Pressure Meter Industrial Ashcroft 8008S
All Stainless Steel Spring Tube Pressure Meter Industrial Ashcroft 8008S
Specifications
Brand Name :
Ashcroft
Model Number :
8008S
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
10-100USD
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Size :
40-100
Process Connection :
NPT,BSP,PT,R ,1/4,1/2,1/8
Keyword :
buy gas high pressure gauge
Temperature Measurement :
-20 to 65 degrees
Supply :
2mV/V,3.33mV/V.4-20mA
Overpressure Limit :
2 times the maximum range
Usage :
to equip with water pumps
Voltage :
1-5 (V)
Case Dimensions :
69mm Dia
Supply Voltage :
10-30 VDC
Shell Material :
PP Plastic
Operating temperature :
-40°C to 85°C
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Material :
Stainless Steel
Mounting options :
Panel, Wall, Pipe
Description

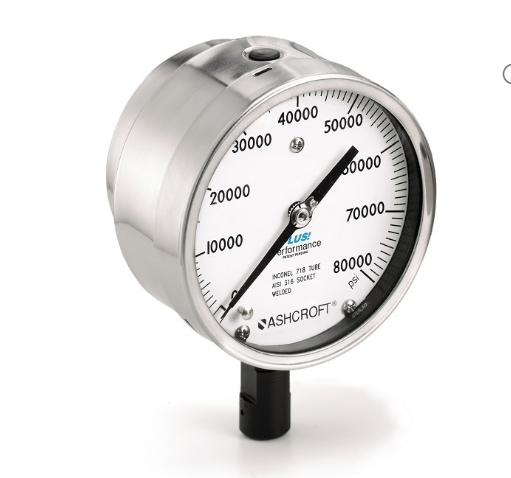

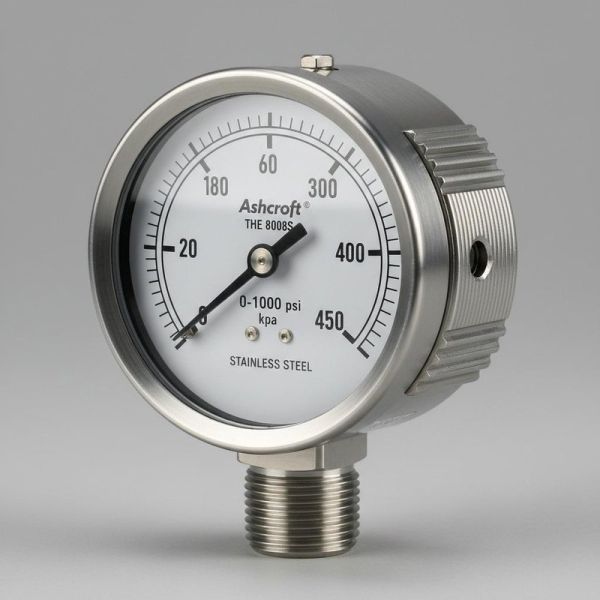

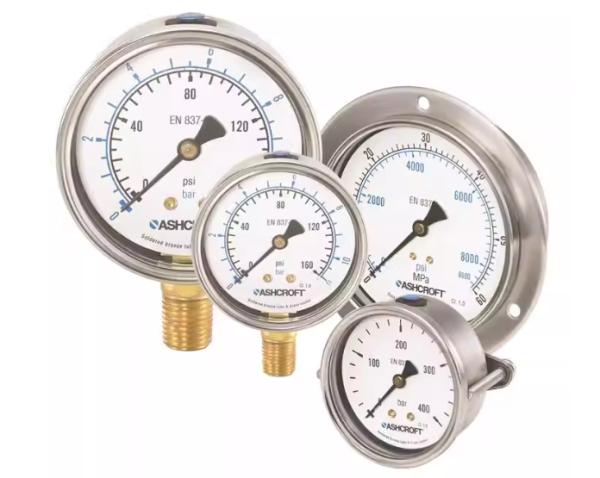

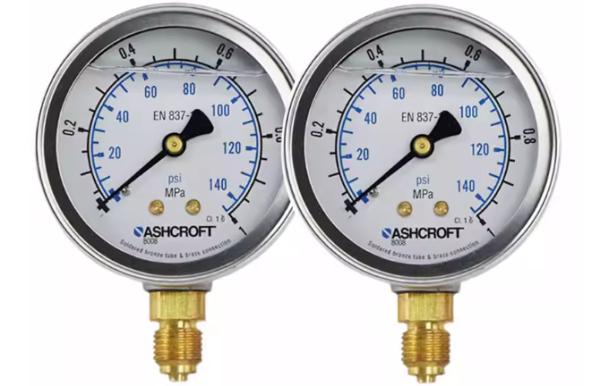

Ashcroft® 8008S All Stainless Steel Spring Tube Pressure Gauge
The Ashcroft® 8008S all stainless steel spring tube pressure gauge combines advanced features previously used for process pressure gauges, including the optional front baffle safety structure, to enhance performance and reliability in demanding industrial applications.
Technical Specifications
Accuracy
  • 63 mm: ±1.6% of span per EN837-1
  • ±1% of span per EN837-1 (through 10,000 psi)
  • ±2-1-2% of span ASME B40.100 (through 10,000 psi)
  • 100 mm: ±1% of span per EN837-1 (through 10,000 psi)
Dial Sizes
63 mm (2½˝); 100 mm (4˝)
Ranges
Vacuum, compound, 15 to 20,000 psi, bar, kPa, MPa, kg/cm² (available in single or dual scale)
Working Pressure
  • Steady: 75% full-scale value
  • Fluctuating: 80% full-scale value
  • Short Time: full-scale value
Over Pressure/Proof Pressure
  • ≤100 bar ranges: 125% of maximum scale value
  • >100 to ≤600 bar ranges: 115% of maximum scale value
  • >600 to ≤1400 bar ranges: 110% of maximum scale value
Process Connection Details
Location: 63 mm: Lower, center back or lower back | 100 mm: Lower, center back or lower back
Sizes:
  • 63 mm: 1⁄8 NPT, ¼ NPT, G¼ B, ¼ BSPT, SAE-4 7⁄16-20, M14x1.5, #4JIC, ¼Tube stub male, 3⁄8 Tube stub male, ½Tube stub male
  • 100 mm: ¼ NPT, ½ NPT, G¼ B, G½ B, M14x1.5, M20x1.5, ¼ BSPT, ½ BSPT, ¼ Tube stub male, 3⁄8 Tube stub male, ½ Tube stub male, ¼ High pressure female
Additional Specifications
  • Dial: Black figures on white background (blue secondary scale for dual scale dials); aluminum
  • Pointer: Black, aluminum
  • Movement: 316 Stainless steel
  • Dampening: FlutterGuard™, Glycerin fill, Silicone fill
  • Temperature Effects: ±0.04% of span per °C change; reference temp. 20 °C | ±0.4% of span per 18 °F change; reference temp. 68 °F
Approvals and Certifications
CE/UKCA, RoHS (EU Directives 2011/65/EU and 2015/863); PED (2014/68/EU); CRN (15,000 & 20,000 psi not included); R110; NGV 3.1 IP66 rating; UL252A, NEMA 4X for water and dust ingress
Component Materials
Wetted Components
Bourdon Tube Process Connection Restrictor
316 SS Laser Welded 316 SS Laser Welded SS (0.013˝ orifice)
Non-Wetted Components
Case Window Ring
304 SS, open front (STD.)
316 SS, open front (OPT.)
316 SS, solid front (XS3 OPT.)		 Polycarbonate, glass, or safety glass
Polycarbonate, glass, or safety glass
Polycarbonate or safety glass		 304 SS, crimped (STD.)
316 SS, crimped (OPT.)
316 SS, crimped
Temperature Limits
Version Ambient Process Storage
Dry with FlutterGuard™ -40 °F to 200 °F (-40 °C to 93 °C) -40 °F to 250 °F (-40 °C to 121 °C) -40 °F to 200 °F (-40 °C to 93 °C)
Glycerin Fill 20 °F to 158 °F (-7 °C to 70 °C) -4 °F to 212 °F (-20 °C to 100 °C) -40 °F to 158 °F (-40 °C to 70 °C)
Silicone Fill -40 °F to 158 °F (-40 °C to 70 °C) -40 °F to 212 °F (-40 °C to 100 °C) -40 °F to 158 °F (-40 °C to 70 °C)
