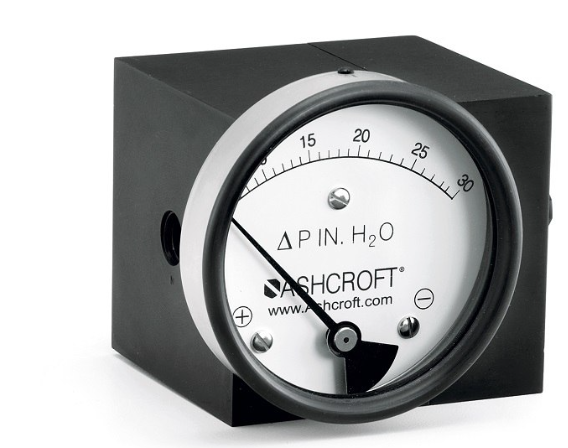

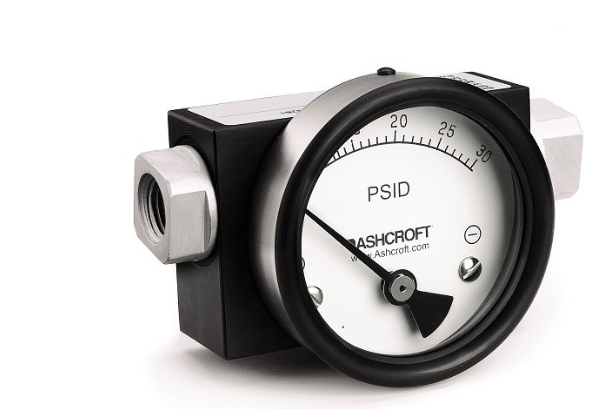

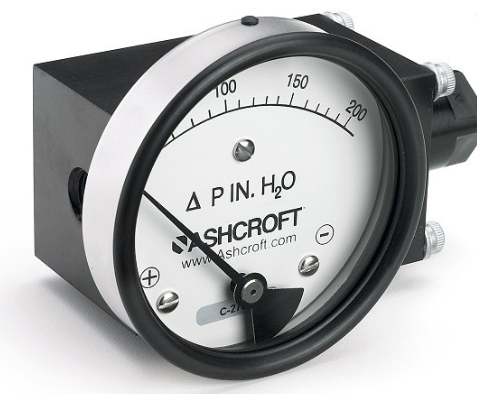

0 - 60 Psi Ashcroft 1132 Different Pressure Gauge For Process Monitoring / Control Processes
0 - 60 Psi Ashcroft 1132 Different Pressure Gauge For Process Monitoring / Control Processes
0 - 60 Psi Ashcroft 1132 Different Pressure Gauge For Process Monitoring / Control Processes
0 - 60 Psi Ashcroft 1132 Different Pressure Gauge For Process Monitoring / Control Processes
0 - 60 Psi Ashcroft 1132 Different Pressure Gauge For Process Monitoring / Control Processes
0 - 60 Psi Ashcroft 1132 Different Pressure Gauge For Process Monitoring / Control Processes
0 - 60 Psi Ashcroft 1132 Different Pressure Gauge For Process Monitoring / Control Processes
0 - 60 Psi Ashcroft 1132 Different Pressure Gauge For Process Monitoring / Control Processes
Specifications
Brand Name :
Ashcroft
Model Number :
1132
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
20-50USD
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Power supply :
24 V DC
Product name :
Pressure Measurement Instruments
Connection type :
Threaded, Flanged
Mounting options :
Panel, Wall, Pipe
Description

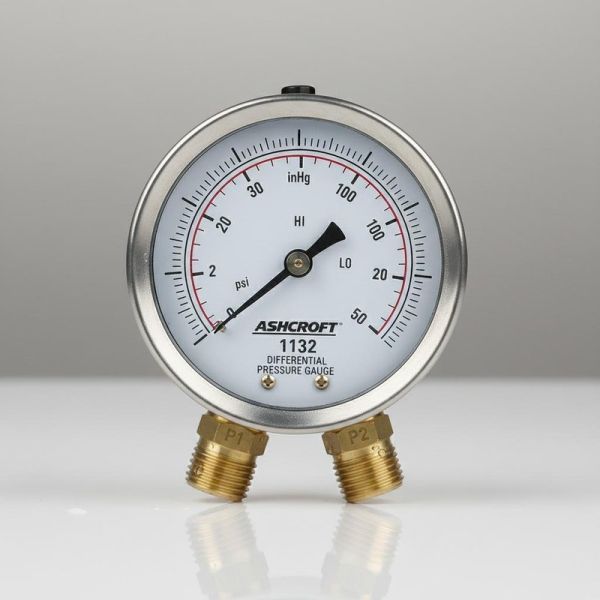

Ashcroft 1132 Differential Pressure Gauge
An economical differential pressure gauge used to measure the difference between two pressure sources for process monitoring or control applications.
Product Specifications
Accuracy & Performance
Accuracy±2% ascending pressure full scale differential
Ranges0-60 psi
MigrationZero
Physical Dimensions
Dial Sizes2½˝, 3½˝, 4˝, 4½˝, 6˝
Process Connection LocationLower, back, in-line
Process Connection Sizes¼ NPT Female
Temperature & Pressure Ratings
Maximum Process Temperature175 °F (80 °C)
Minimum Ambient Temperature
  • Buna-N Diaphragm: -4 °F (-20 °C)
  • EPDM Diaphragm: -40 °F (-40 °C)
  • Viton Diaphragm: 32 °F (0 °C)
Maximum Static Pressure1,500 psi
Weather ProtectionIP65
Reed Switch Ratings
Switches Contact Rating Current Voltage
SPST 10 VA ac (rms) or dc (Max.) 0.5 Amp ac (rms) or dc (Max.) 100 Vac/Vdc (Max.)
SPDT 3 VA ac (rms) or dc (Max.) 0.3 AMP ac (rms) or dc (Max.) 30 Vac/Vdc (Max.)
Material Specifications
Wetted Components
Actuator O-Rings/Diaphragm Body Material
Convoluted diaphragm Buna-N Aluminum, brass or stainless steel
Non-Wetted Components
Case Material Window
Stainless steel Glass (STD.), Safety glass or plastic (OPT.)
