Specifications
Brand Name :
Ashcroft
Model Number :
1134
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
20-50USD
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Operating temperature :
-40°C to 85°C
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Power supply :
24 V DC
Product name :
Pressure Measurement Instruments
Connection type :
Threaded, Flanged
Mounting options :
Panel, Wall, Pipe
Description

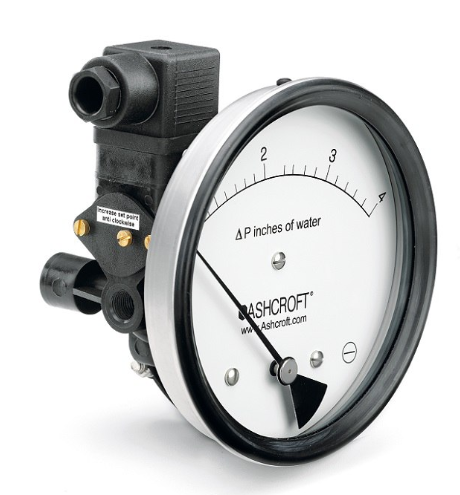

Ashcroft 1134 Differential Pressure Gauge
An economical differential pressure gauge designed for cleanroom and isolation room applications, providing reliable pressure measurement with excellent value.
Product Specifications
Specification Details
Accuracy ±3% of span (ASME B40.1)
Dial Size 4½ inch
Pressure Ranges 0.6 IWD to 60 IWD
Maximum Static Pressure 35 psi
Process Connection 1⁄8 NPT Female
Process Connection Location Dual, back/in-line
Window Material Glass (Standard)
Migration Zero
Maximum Process Temperature 175° F (80° C)
Mounting Options Flush mounting (Standard), surface plate (Optional), or pipe mounting bracket (Optional)
Wetted Components
  • Actuator O-Rings/Diaphragm: Convoluted diaphragm with Buna-N (Standard) or EPDM (Optional)
  • Body Material: Glass filled nylon
  • Additional Wetted Components: Ceramic magnet & stainless steel spring
Non-Wetted Components
  • Case Material: Stainless Steel
  • Window: Glass (Standard) or Plastic (Optional)
Reed Switch Ratings
Switch Type Contact Rating Current Voltage
SPST 10 VA ac (rms) or dc (Max.) 0.5 Amp ac (rms) or dc (Max.) 100 Vac/Vdc (Max.)
SPDT 3 VA ac (rms) or dc (Max.) 0.3 AMP ac (rms) or dc (Max.) 30 Vac/Vdc (Max.)
Key Application: Specifically designed for cleanroom and isolation room environments where precise differential pressure monitoring is critical for maintaining controlled environments.
