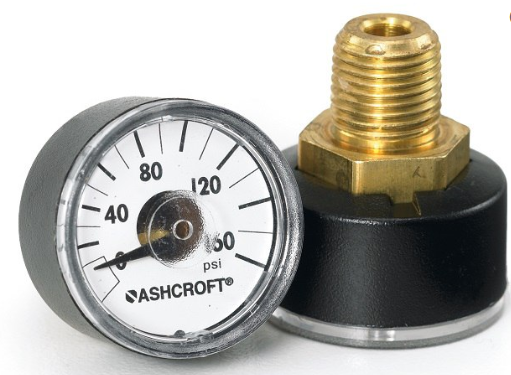

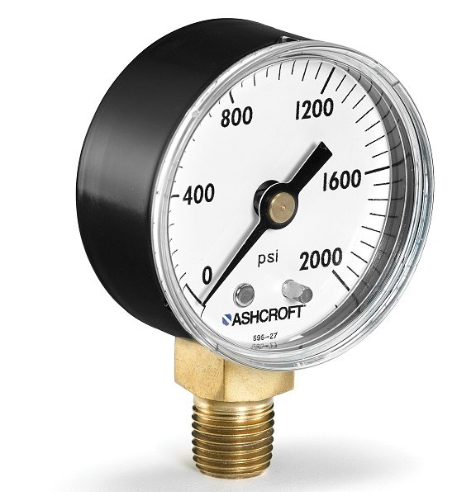

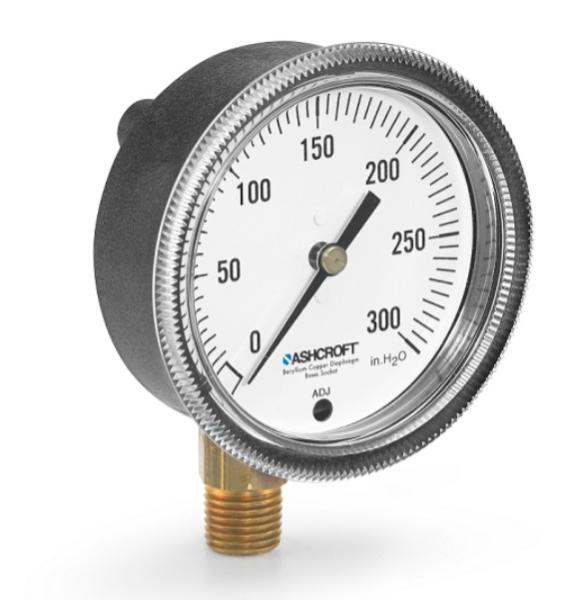

Ashcroft 1490 Micro Film Pressure Meter Gauge Precise Low Pressure Measuring Instruments
Ashcroft 1490 Micro Film Pressure Meter Gauge Precise Low Pressure Measuring Instruments
Ashcroft 1490 Micro Film Pressure Meter Gauge Precise Low Pressure Measuring Instruments
Ashcroft 1490 Micro Film Pressure Meter Gauge Precise Low Pressure Measuring Instruments
Ashcroft 1490 Micro Film Pressure Meter Gauge Precise Low Pressure Measuring Instruments
Ashcroft 1490 Micro Film Pressure Meter Gauge Precise Low Pressure Measuring Instruments
Specifications
Brand Name :
Ashcroft
Model Number :
1490
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
20-50USD
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Operating temperature :
-40°C to 85°C
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Power supply :
24 V DC
Product name :
Pressure Measurement Instruments
Connection type :
Threaded, Flanged
Mounting options :
Panel, Wall, Pipe
Description
Ashcroft 1490 Micro Pressure Film Pressure Gauge
An economical and effective solution for low-pressure measurement applications featuring an ultra-sensitive membrane measurement system for precise and reliable performance.
Technical Specifications
Accuracy ±2-1-2% of span (ASME B40.100 Grade A)
Dial Size 2½", 3½"
Pressure Ranges 10 in. H₂O through vacuum, compound to 15 psi
Process Connection Location Lower, center back, top, 3 o'clock, 9 o'clock
Process Connection Size 1⁄8 NPT Male, 1⁄4 NPT Male, 1⁄8" Tubing hose barb, 3⁄16" Tubing hose barb, 1⁄4" Tubing hose barb, 1⁄4" O.D. Polytube hose barb, 3⁄32" Tubing hose barb
Movement Brass
Dial Aluminum, white background, black figures and intervals
Proof Pressure 1.5 X Range
Burst Pressure Up to 5 psi = 50 psi
Greater than 5 psi = 100 psi
Mounting Option Stem, Flush U-clamp for panel mounting
Pointer Black, aluminum
Dampening FlutterGuard™
Non-Wetted Components
Case Black, glass filled polysulfone
Ring/Window Threaded polycarbonate, bayonet
Key Benefits
  • Case won't rust or dent
  • Sensitive diaphragm capsule to measure low pressure and vacuum
  • Case is suitable for intermittent or continuous services on natural gas
Model: 1490
Available in 2½" and 3½" dial sizes
Temperature Limits
Ambient Temperature Range: -40°F to 180°F (-40°C to 82°C)
