Specifications
Brand Name :
Ashcroft
Model Number :
1005
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
20-50USD
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Operating temperature :
-40°C to 85°C
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Power supply :
24 V DC
Product name :
Pressure Measurement Instruments
Connection type :
Threaded, Flanged
Mounting options :
Panel, Wall, Pipe
Description

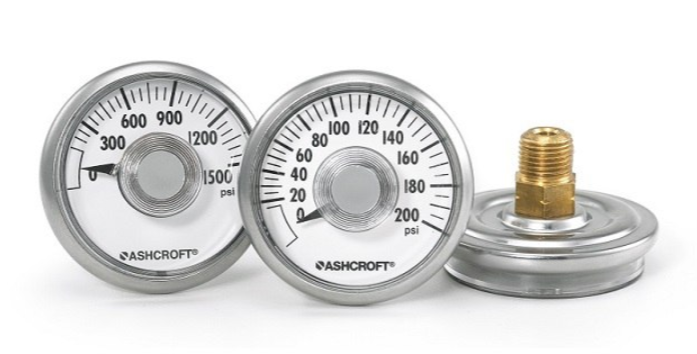

Ashcroft 1005 Spring Tube Pressure Gauge
The Ashcroft 1005 spring tube pressure gauge offers exceptional customization with various housing materials, connection positions, and pressure ranges to meet diverse application requirements.
Product Specifications
Accuracy & Performance
±3-2-3% of span (ASME B40.100 Grade B)
Available Dial Sizes
1½˝, 2˝, 2½˝, 3½˝
Pressure Ranges
1½˝: Vacuum to 1,000 psi
2˝, 2½˝, 3½˝: Vacuum, compound to 6,000 psi
Connection Details
Process Connection Location: Lower, center back
Process Connection Size: 1⁄8 and ¼ NPT Male
Display Components
Dial: Black figures on white background, aluminum
Pointer: Black, aluminum, adjustable, min/max assembly
Movement: PowerFlex™ with polyester segment
Dampening Options
FlutterGuard™
Safety Approvals
UL 404: High pressure compressed gas (2˝, 1,000-4,000 psi)
UL 252A: Compressed gas regulator accessories (2˝, 30-300 psi)
Key Benefits
  • Customizable for new applications
  • Easy readability
  • Long lasting performance
Wetted Components
Bourdon Tube: Bronze
Process Connection: Brass
Restrictor: 0.013˝ orifice restrictor in gauges 1,000 psi and above
Non-Wetted Components
Case: Black painted steel
Window: Polycarbonate
Temperature Limits
Version Ambient Process Storage
Dry -40°F to 150°F (-40°C to 65°C) -40°F to 150°F (-40°C to 65°C) -40°F to 150°F (-40°C to 65°C)
Available Sizes: 1½˝, 2˝, 2½˝, 3½˝ dial size
