Specifications
Brand Name :
Ashcroft
Model Number :
1084
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
20-30
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Operating temperature :
-40°C to 85°C
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Material :
Stainless Steel
Application :
Industrial Process Control, HVAC, Automotive
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Power supply :
24 V DC
Accuracy :
±0.25% of full scale
Product name :
Pressure Measurement Instruments
Connection type :
Threaded, Flanged
Mounting options :
Panel, Wall, Pipe
Description

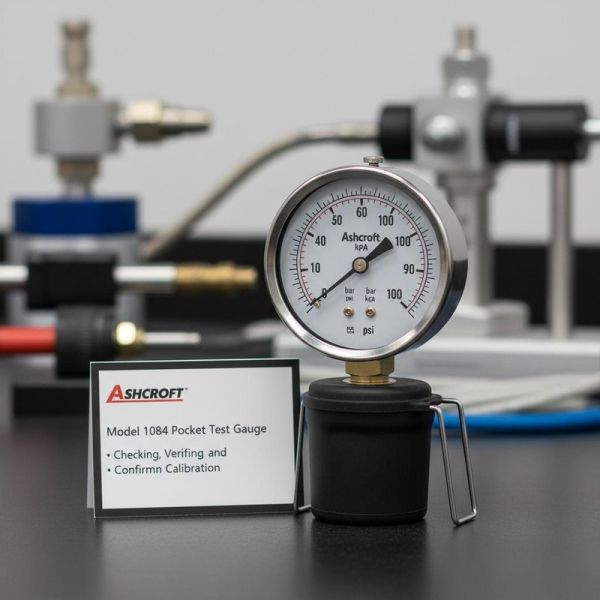

Ashcroft 1084 Pocket Test Gauge
The Ashcroft 1084 pocket test gauge is designed for checking, verifying, and confirming calibration of key positions, providing accurate and reliable pressure measurement processes.
Product Specifications
Technical Specifications
Accuracy±0.5% of span (ASME B40.100 Grade 2A)
RangesVacuum, Compound to 1,000 psi
Size3˝
Process Connection LocationLower
Process Connection Size¼ NPT Male
DialZero adjustable aluminum, white background, black numerals with polished mirror band
Case StyleOpen front
MovementPrecision, Stainless steel with Teflon™ S coated bearings and pinion
PointerAluminum with red-painted tip
Mounting OptionsStem
Weather ProtectionCase not sealed, recommended for weather protected environment only
WindowPolycarbonate
ApprovalsCRN
Wetted Components
Bourdon Tube316L SS
Process Connection Joints316L SS Welded
Non-Wetted Components
Case316L SS
RingPolycarbonate
DialAluminum
Key Benefits
  • Cushioned Nylon fabric pouch with carrying strap included
  • Rugged stainless steel construction
  • Integral span adjustment
  • Compact design for easy portability
Temperature Limits
Version Ambient Process Storage
Dry -20 °F to 200 °F (-29 °C to 93 °C) -20 °F to 250 °F (-29 °C to 121 °C) -40 °F to 250 °F (-40 °C to 121 °C)
