Specifications
Brand Name :
Ashcroft
Model Number :
DG25
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
20-30
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Operating temperature :
-40°C to 85°C
Response time :
≤ 10 ms
Pressure type :
Gauge, Absolute, Differential
Display type :
LCD/LED Digital Display
Measurement range :
0 to 1000 psi
Material :
Stainless Steel
Application :
Industrial Process Control, HVAC, Automotive
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Power supply :
24 V DC
Accuracy :
±0.25% of full scale
Product name :
Pressure Measurement Instruments
Connection type :
Threaded, Flanged
Mounting options :
Panel, Wall, Pipe
Description

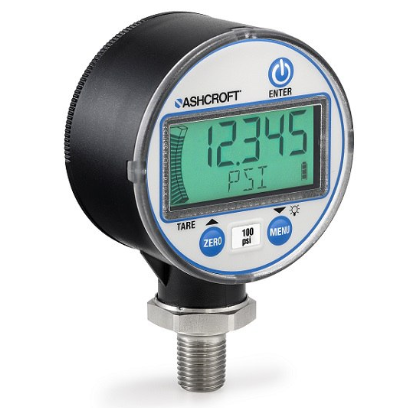

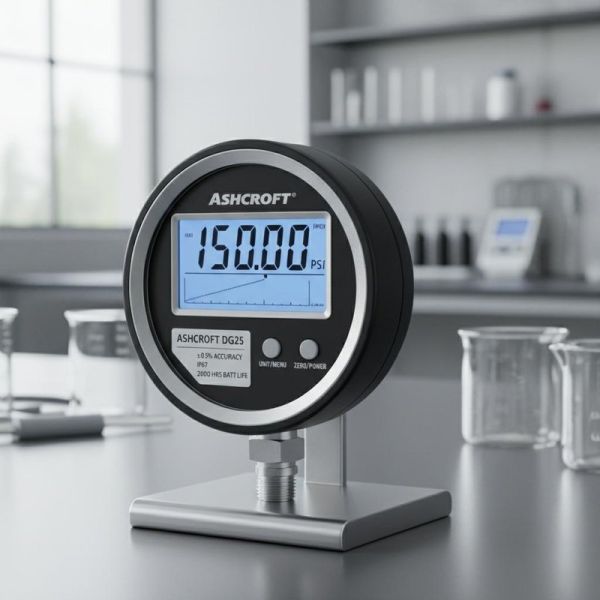

Ashcroft DG25 Universal Digital Pressure Gauge
Excellent performance, stability, and reliability for industrial pressure measurement applications.
General Specifications
Accuracy: ±0.5% of span (ASME B40.7 Grade 2A), ±0.25% of span (ASME B40.7 Grade 3A) (OPT.)
Case Size: 2½˝
Nominal Sizes: 2.73˝ (70 mm) dia., 1.61˝ (40.9 mm) deep, 2.64˝ (67 mm) centerline to end of ¼ NPT thread height
Character Height: Upper line: 0.48˝ (12.19 mm), 5-digit; Lower line: 0.24˝ (6.10 mm), 5-character alphanumeric
Ranges: Vacuum, compound, 15 to 25,000 psi
Pressure Connection: ¼ NPT typical
Process Connection Location: Lower
Temperature Coefficient: ±0.04%/°F (-20 °F to 180 °F) zero and span (Reference temperature 70 °F)
Leak Integrity: 10⁻⁷ cc/sec
Update Rate: 1 Hz, 2 Hz, 4 Hz (1 sec, 500 msec, 250 msec)
Vibration: MIL-STD-202G, Method 201A
Shock: MIL-STD-202G, Method 213B, Test Condition K
Serial Number: Yes
View Angle: 12 o'clock
Power & Display
Battery: Two AA alkaline batteries
Battery Life: 2,000 hours minimum
Battery Life Indicator: 4 levels
Cycle Life: 10 million cycles
LCD Display: Four or five-digit numeric top line, five-character alphanumeric lower line, 20 segment vertical bar graph, four segment battery life indicator, dedicated icons for gauge timer, back light timer, tare, min. and max.
Keypad Functions: Three key; with multi-press functionality
Hard Keys: On/Off (Power Symbol and Enter Zero), Zero (Tare and Up Arrow), Menu (Access, Backlight, Down Arrow)
Engineering Units & Certifications
Engineering Units: psi, bar, in. Hg, cm Hg, mm Hg, kPa, MPa, kg/cm², ft. H₂O, and customer defined unit
Some ranges may not include all units due to resolution limitations
Enclosure Rating: IP67
Approvals: CE, UL 61010-1, CUL
Pressure Ratings
Pressure Range Overpressure Proof Burst
15 to ≤2,000 psi 2X Range 8X Range
≥2,500 to ≤5,000 psi 1.5X Range 3X Range
≥6,000 to ≤25,000 psi 1.2X Range 1.5X Range
