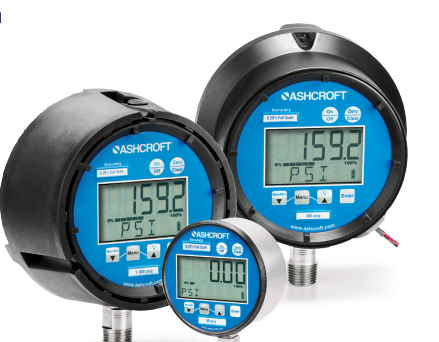

Ashcroft 2136 Series Digital Hygiene Pressure Gauge is a sanitary digital gauge for food, beverage, and pharma CIP processes.
Ashcroft 2136 Series Digital Hygiene Pressure Gauge is a sanitary digital gauge for food, beverage, and pharma CIP processes.
Ashcroft 2136 Series Digital Hygiene Pressure Gauge is a sanitary digital gauge for food, beverage, and pharma CIP processes.
Ashcroft 2136 Series Digital Hygiene Pressure Gauge is a sanitary digital gauge for food, beverage, and pharma CIP processes.
Specifications
Displaytype :
LCD/LED Digital Display
Connection type :
Threaded, Flanged
Brand Name :
Ashcroft
Price :
20-50USD
Connectiontype :
Threaded, Flanged
Measurement range :
0 to 1000 psi
Power supply :
24 V DC
Operating temperature :
-40°C to 85°C
Display type :
LCD/LED Digital Display
Payment Terms :
T/T
Place of Origin :
USA
Supply Ability :
99PCS 4-6 WEEKS
Accuracy :
±0.25% of full scale
Output signal :
4-20 mA, 0-10 V, Digital
Protection rating :
IP65/IP67
Model Number :
2136
Outputsignal :
4-20 mA, 0-10 V, Digital
Response time :
≤ 10 ms
Product name :
Pressure Measurement Instruments
Measurementrange :
0 to 1000 psi
MOQ :
1
Delivery Time :
5-7 WORK DAYS
Application :
Industrial Process Control, HVAC, Automotive
Certification :
CO
Responsetime :
≤ 10 ms
Mounting options :
Panel, Wall, Pipe
Pressure type :
Gauge, Absolute, Differential
Description
Ashcroft 2136 Series Digital Hygiene Pressure Gauge
A multifunctional instrument with excellent functionality and performance, ideal for pharmaceutical, biotechnology, and sanitary process applications.
Available Models
  • 2032: Conventional Tri-Clamp® - Battery powered
  • 2132: Conventional Tri-Clamp® - 4-20 mA loop powered
  • 2232: Conventional Tri-Clamp® - 12-36 Vdc line powered
  • 2036: In-line Tri-Clamp® - Battery powered
  • 2136: In-line Tri-Clamp® - 4-20 mA loop powered
  • 2236: In-line Tri-Clamp® - 12-36 Vdc line powered
Performance Specifications
Specification Details
Accuracy ±0.25% of span, terminal point (ASME B40.7)
Pressure Ranges Vacuum, Compound to 1000 psi (food grade mineral oil fill required for vacuum and compound ranges)
Proof Pressure 200% of full scale
Dial Size 3˝ (optional front flange for panel mount)
Process Connections
  • 2032, 2132, 2232: ¾˝ Tri-Clamp® (± 0.5% positive pressure only, min range 100 psi), 1½˝ Tri-Clamp® or 2˝ Tri-Clamp®
  • 2036, 2136, 2236: 1½˝ In-line compatible with model 1037 in-line tee fitting
Construction & Mounting
Feature Details
Process Connection Location Lower, Top, 9 o'clock or 3 o'clock
Fill Options Glycerine, Food Grade Silicone (OPT.), Food Grade Mineral Oil (OPT.) or Silicone (OPT.)
Mounting Direct, Remote (OPT.)
Wiring 3 ft shielded cable standard. Optional custom length cable up to 100 ft
Seal Surface Finish 12-20 Ra
Display Features
Feature Details
Display Type Full 5 Digital LCD
Bar Graph 10 segment (OPT.) allows adjustment of bar graph & 4-20 mA
Battery Life 400 hours with battery life indicator
Backlight Optional (models 2132 and 3136 require battery backup option)
Character Height 0.60˝
Temperature Specifications
Environment Temperature Range
Ambient -14 °F to 140 °F (-10 °C to 60 °C)
Process -14 °F to 275 °F (-10 °C to 135 °C)
Storage -4 °F to 158 °F (-20 °C to 70 °C)
Certifications & Approvals
  • 3A Sanitary
  • Material Traceability Certification to EN 10204: 2004 3.1 standard
  • ASME B40.7
  • Enclosure Rating: Weatherproof, IP65
Configuration & Menu Options
Menu Mode Settings:
  • Configuration Mode: Password-protected changes to default settings
  • Engineering Units: 10 measurement units available including psi, in. H2O, mm Hg, ft H2O, mPa, kPa, kg/cm² and bar
  • Auto Off: 5 options: 30 Min., 10 Min., 5 Min. or Never
  • Update Rate: 100 ms, 1 sec, 500 ms or 200 ms
  • Dampening: None, Average, 8, 6, 4 or 2 times per 100ms
Calibration Features
  • Zero Disable: Zero "lockout" feature
  • Field Recalibration: Zero, Span & Midscale (password protected)
  • Calibration: Recalibration of zero & span
Custom Cable Length Option "JZ"
Allows specification of custom cable lengths for both gauge and remote seal connections. Maximum cable length for XRE seal is 25 feet. Maximum gauge power cable length is 100 feet.
