WINTERS General-purpose Pressure Sensor LE2.
WINTERS General-purpose Pressure Sensor LE2.
WINTERS General-purpose Pressure Sensor LE2.
WINTERS General-purpose Pressure Sensor LE2.
Specifications
Mounting :
Panel mount or pipe mount
Accuracy :
±0.25% of full scale
Productname :
Pressure Measurement Instruments
Measurementrange :
0 to 1000 psi
Protectionrating :
IP65
Pressuretype :
Gauge, Absolute, Differential
MOQ :
1
Price :
100USD
Payment Terms :
T/T
Supply Ability :
1PC 1-2WEEK
Delivery Time :
1-2WEEK
Brand Name :
WINTERS
Model Number :
LE2
Material :
Stainless Steel
Application :
Industrial, HVAC, Automotive
Powersupply :
24 V DC
Operatingtemperature :
-20°C to 85°C
Displaytype :
Digital LCD
Responsetime :
≤ 1 second
Connectiontype :
1/4 inch NPT
Outputsignal :
4-20 mA, 0-10 V
Calibration :
Factory calibrated
Description

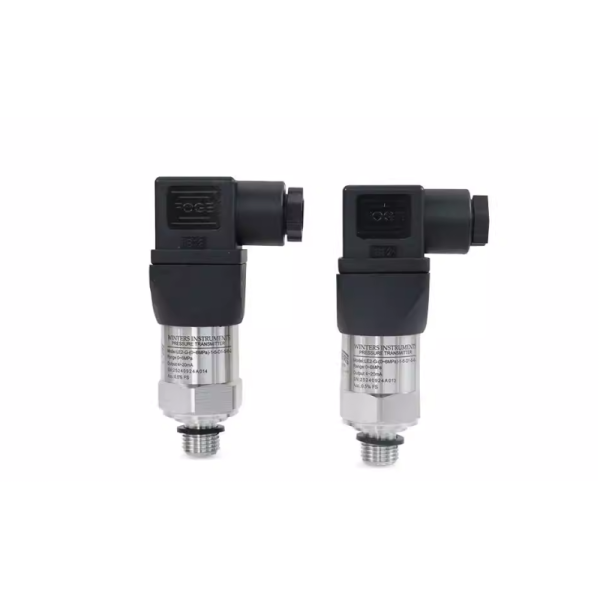

WINTERS General-purpose Pressure Sensor LE2
The WINTERS LE2 is a versatile general-purpose pressure transducer featuring piezoresistive silicon technology with all-stainless steel construction. Designed for reliable performance across industrial applications including HVAC systems, compressors, and water treatment equipment.
Technical Specifications
Parameter Category Parameter Name Specification Unit Remarks
Basic Information Brand WINTERS - General Purpose Pressure Transducer
Basic Information Model LE2 - Standard Version
Basic Information Measurement Principle Piezoresistive Silicon - All stainless steel construction
Basic Information Pressure Type Gauge Pressure - Optional absolute pressure on request
Performance Parameters Pressure Range 0-0.1 bar to 0-600 bar bar Covering multiple sub-ranges
Performance Parameters Accuracy 0.5% FS (standard), 0.25% FS (optional) % FS Non-linearity + Hysteresis + Repeatability
Performance Parameters Response Time Typical 10 ms, Maximum 30 ms ms 10% - 90% of full scale
Performance Parameters Long-term Stability 0.15% FS/Year % FS/Year Under normal operating conditions
Performance Parameters Overpressure Rating 1.5 x Full Scale times FS Maximum working overpressure
Performance Parameters Burst Pressure 2 x Full Scale times FS Ultimate pressure resistance
Electrical Parameters Output Signal 4-20 mA DC, 0-10 V DC - Two options available
Electrical Parameters Supply Voltage 12-30 V DC V DC Typical 24 V DC industrial power supply
Mechanical Parameters Process Connection G1/4", 1/4" NPT, optional other threads - Male thread, 316L stainless steel
Mechanical Parameters Body Material 316L Stainless Steel - Corrosion-resistant for most media
Environmental Parameters Ambient Temperature -40 to 85 °C Continuous operation
Environmental Parameters Protection Class IP65, IP67 (depending on electrical connection) - Conforms to IEC 60529 standard
Key Features
  • High accuracy with 0.5% FS standard (0.25% FS optional)
  • Fast response time: typical 10 ms, maximum 30 ms
  • Excellent long-term stability: 0.15% FS per year
  • Robust 316L stainless steel construction
  • Wide pressure range coverage: 0-0.1 bar to 0-600 bar
  • Multiple output signals: 4-20 mA DC or 0-10 V DC
  • IP65/IP67 protection rating
  • Flexible installation with arbitrary orientation
Industrial Applications
  • Heating and ventilation systems
  • Air compressors
  • Water treatment equipment
  • Environmental protection facilities
  • Industrial process control
Certifications & Compliance
  • CE certified
  • RoHS compliant
  • ISO 9001 quality management system
