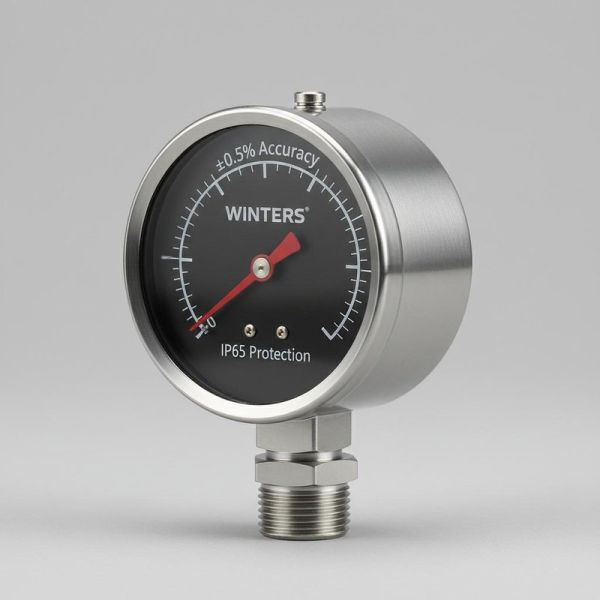

WINTERS PPC Stainless Steel Movement Pressure Gauge with IP65 Protection and ±0.5% Accuracy
WINTERS PPC Stainless Steel Movement Pressure Gauge with IP65 Protection and ±0.5% Accuracy
WINTERS PPC Stainless Steel Movement Pressure Gauge with IP65 Protection and ±0.5% Accuracy
WINTERS PPC Stainless Steel Movement Pressure Gauge with IP65 Protection and ±0.5% Accuracy
Specifications
Brand Name :
WINTERS
Model Number :
PPC Pressure Gauge 115mm
MOQ :
1PC
Price :
180usd
Payment Terms :
T/T
Supply Ability :
1PC 6-8WEEK
Delivery Time :
6-8WEEK
Productname :
Pressure Measurement Instruments
Application :
Industrial process control, HVAC, Hydraulic systems
Displaytype :
Digital LCD
Outputsignal :
4-20 mA
Protectionrating :
IP65
Pressuretype :
Gauge, Absolute, Differential
Mountingtype :
Panel Mount / Wall Mount
Material :
Stainless Steel
Calibration :
Factory calibrated
Powersupply :
24 V DC
Accuracy :
±0.5%
Connectiontype :
1/4 inch NPT
Responsetime :
≤ 1 second
Measurementrange :
0 to 1000 psi
Operatingtemperature :
-20°C to 80°C
Description
WINTERS PPC Pressure Gauge
Professional 4.5" (115mm) dual scale process pressure gauge with white aluminum dial and stainless steel movement, designed for industrial applications requiring high accuracy and durability.
Product Specifications
Parameter Specification
Model Series WINTERS PPC Series (Process Pressure Gauge)
Gauge Type Dual Scale Process Pressure Gauge
Dial Size 4.5" (114 mm)
Accuracy (25°C) ±0.5% Full Scale (FS)
Case Material Phenolic (Black); Optional 304 Stainless Steel
Wetted Parts Brass (standard); 316L Stainless Steel (optional)
Movement Material 304 Stainless Steel with Under & Overload Stops
Lens Material Polycarbonate (standard); Tempered Safety Glass (optional)
Dial Configuration White Aluminum with Black Markings (Dual Scale: psi/kPa or bar/MPa)
Process Connection 1/4" NPT (bottom mount standard); 1/2" NPT (optional)
Pressure Range 0-10 psi to 0-3000 psi (0-0.69 bar to 0-206.8 bar); Vacuum ranges available
Technical Details
Temperature Specifications
Ambient Temperature -40°C to 93°C (-40°F to 200°F)
Process Temperature -40°C to 121°C (-40°F to 250°F)
Storage Temperature -40°C to 93°C (-40°F to 200°F)
Pressure Performance
Over-Pressure Limit 25% of FS (≤1,450 PSI); 15% for pressures >1,500 PSI
Working Pressure Maximum 75% of Full Scale Value
Advanced Features
  • Field-fillable with Glycerin or Silicone oil (optional)
  • Restricted Orifice Option for pulsating applications
  • Front Flush Safety Case design
  • Field-Replaceable Lens for easy maintenance
  • IP65 Enclosure Rating (EN 60529) for dust and water protection
  • Black Anodized Aluminum Pointer with micrometer adjustment
Compliance & Warranty
Standards Compliance ASME B40.100; CRN Registered; RoHS Compliant
Warranty Period 5 Years
