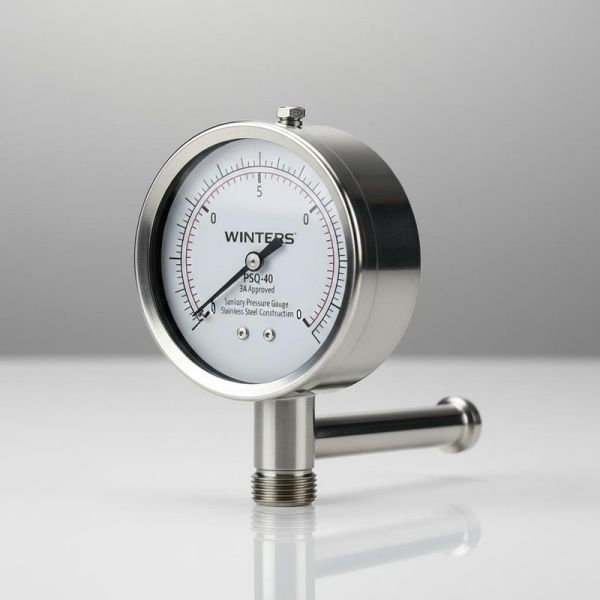

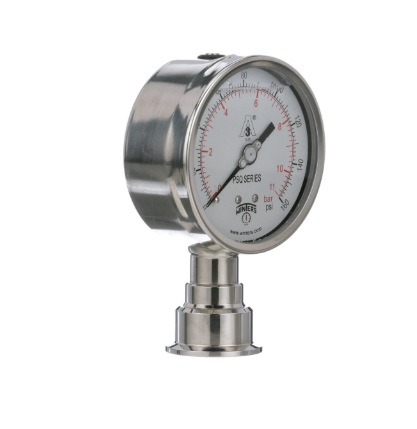

WINTERS PSQ-40 3A Approved Sanitary Pressure Gauge with 63mm Radial and Stainless Steel Construction
WINTERS PSQ-40 3A Approved Sanitary Pressure Gauge with 63mm Radial and Stainless Steel Construction
WINTERS PSQ-40 3A Approved Sanitary Pressure Gauge with 63mm Radial and Stainless Steel Construction
WINTERS PSQ-40 3A Approved Sanitary Pressure Gauge with 63mm Radial and Stainless Steel Construction
Specifications
Brand Name :
WINTERS
Model Number :
PSQ-40 63mm
MOQ :
1PC
Price :
200usd
Payment Terms :
T/T
Supply Ability :
1PC 6-8WEEK
Delivery Time :
6-8WEEK
Description
WINTERS PSQ-40 Sanitary Pressure Gauge
63mm radial sanitary liquid filled pressure gauge with 3A approval, designed for demanding food, beverage, and pharmaceutical applications.
Product Specifications
Parameter Value
Model WINTERS PSQ-40
Type Sanitary Liquid Filled Pressure Gauge (3A Approved)
Dial Size 4" (100 mm)
Accuracy (25°C) ±1.0% of Full Scale (ANSI/ASME Grade 1A)
Case Material AISI 304 Stainless Steel (with rear blowout plug)
Wetted Parts 316L Stainless Steel (surface roughness Ra≤0.8μm; welded diaphragm)
Lens Polycarbonate (standard); Tempered safety glass (optional)
Bezel AISI 304 Stainless Steel Crimp-On Ring
Dial White aluminum with black markings
Pointer Black painted aluminum with zero-setting screw
Fill Liquid Food-grade Glycerin (standard); Silicone oil (optional)
Process Connection 0.75" / 1.5" / 2" Tri-Clamp (sanitary, bottom/back mount); 1/2" NPT (optional)
Ambient Temperature -20°C to 70°C (-4°F to 156°F)
Process Temperature -20°C to 120°C (-4°F to 248°F)
Storage Temperature -40°C to 70°C (-40°F to 156°F)
Temperature Drift Max ±0.04% FS/°C (referenced at 25°C)
Enclosure Rating IP65 (EN 60529)
Over-Pressure Limit 25% of Full Scale (for pressures ≤1,450 PSI); 15% for pressures ＞1,500 PSI
Pressure Range 0...1000 psi (vacuum ranges available: -1...0 bar / 30" Hg Vac)
Compliance & Warranty
  • 3A Approved
  • ASME B40.100
  • CRN Registered
  • RoHS Compliant
  • 5-Year Warranty
Special Features
Clean-In-Place (CIP) & Steam-In-Place (SIP) compatible with electro-polished finish for superior hygiene and easy cleaning.
