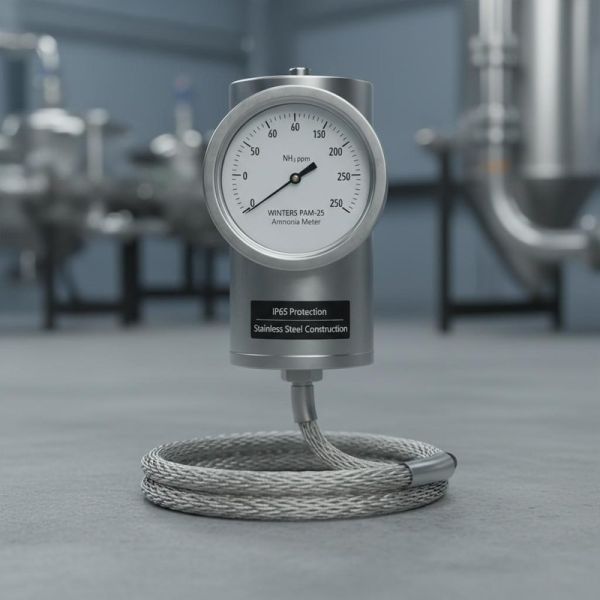

WINTERS PAM-25 Ammonia Meter with 63mm Dial Size Stainless Steel Construction and IP65 Protection
WINTERS PAM-25 Ammonia Meter with 63mm Dial Size Stainless Steel Construction and IP65 Protection
WINTERS PAM-25 Ammonia Meter with 63mm Dial Size Stainless Steel Construction and IP65 Protection
WINTERS PAM-25 Ammonia Meter with 63mm Dial Size Stainless Steel Construction and IP65 Protection
Specifications
Brand Name :
WINTERS
Model Number :
PAM-25
MOQ :
1PC
Price :
65USD
Payment Terms :
T/T
Supply Ability :
1PC 1-2week
Delivery Time :
1-2week
Pressuretype :
Gauge, Absolute, Differential
Powersupply :
24 V DC
Outputsignal :
4-20 mA, 0-10 V, Digital
Material :
Stainless Steel, Brass
Connectiontype :
Threaded, Flanged
Operatingtemperature :
-20°C to 80°C
Displaytype :
LCD, LED
Productname :
Pressure Measurement Instruments
Responsetime :
Less than 1 second
Accuracy :
±0.5% of full scale
Mountingoptions :
Panel, Wall, Pipe
Measurementrange :
0 to 1000 psi
Application :
Industrial, HVAC, Automotive
Protectionrating :
IP65, IP67
Description

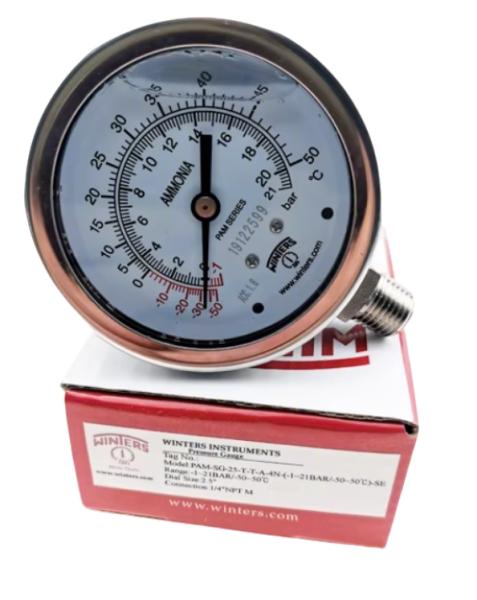

WINTERS PAM-25 Ammonia Meter 63mm
Professional-grade ammonia service pressure gauge designed for industrial refrigeration and ammonia applications. Features ammonia-compatible wetted parts and robust construction for reliable performance in demanding environments.
Product Specifications
Parameter Value
Model WINTERS PAM Series (Ammonia Pressure Gauge)
Type Ammonia Service Pressure Gauge (Dry or Glycerin Filled)
Dial Size 2.5" (63 mm), 3.5" (90 mm), 4" (100 mm), 6" (150 mm), 8.5" (215 mm), 10" (250 mm)
Accuracy (25°C) ±0.5% to ±1% FS (4" - 10" high precision); ±1.5% FS (2.5" - 4"); ±3-2-3% FS (2.5" - 4")
Case Material AISI 304 Stainless Steel (4"-10" high precision); Steel (painted black, 2.5"-4"); Aluminum (8.5"-10")
Wetted Parts 316L Stainless Steel (Bourdon tube, socket); 304 SS movement
Lens Polycarbonate (standard); Tempered safety glass (optional)
Bezel Steel (painted black, 2.5"-4"); Crimp-On Ring (304 SS, optional)
Dial White aluminum with black and red markings (PSI/Fahrenheit dual scale)
Pointer Black anodized aluminum
Process Connection 1/4" NPT (bottom mount standard); 1/2" NPT (optional)
Fill Liquid Dry (standard); Glycerin (optional)
Ambient/Process Temperature Dry: -40°F to 150°F (-40°C to 65°C); Glycerin filled: -4°F to 150°F (-20°C to 65°C)
Over-Pressure Limit 30% of Full Scale Value
Working Pressure Max 75% of Full Scale Value
Enclosure Rating IP65 (EN 60529)
Welding TIG (for SS wetted parts)
Compliance ASME B40.100; CRN Registered; RoHS Compliant (SS internals only)
Warranty 5 Years
Pressure Range 30" Hg Vac - 0 - 300 psi (vacuum to positive pressure)
Key Features
  • Ammonia-compatible wetted parts for chemical resistance
  • Dual scale display (PSI/Fahrenheit) for versatile applications
  • Front flush safety case design for enhanced protection
  • Multiple case materials and sizes for various application requirements
  • High precision accuracy options available
  • Robust construction with industrial-grade components
