WINTERS PAM-10 Stainless Steel Ammonia Gauge with IP65 Protection and ±0.25% Accuracy for Industrial Pressure Measurement
WINTERS PAM-10 Stainless Steel Ammonia Gauge with IP65 Protection and ±0.25% Accuracy for Industrial Pressure Measurement
WINTERS PAM-10 Stainless Steel Ammonia Gauge with IP65 Protection and ±0.25% Accuracy for Industrial Pressure Measurement
WINTERS PAM-10 Stainless Steel Ammonia Gauge with IP65 Protection and ±0.25% Accuracy for Industrial Pressure Measurement
Specifications
Brand Name :
WINTERS
Model Number :
PAM-10
MOQ :
1PC
Price :
95usd
Supply Ability :
1PC 1-2WEEK
Delivery Time :
1-2WEEK
Calibration :
Factory calibrated, field adjustable
Connectiontype :
1/4 inch NPT
Powersupply :
24 V DC
Protectionrating :
IP65
Accuracy :
±0.25% of full scale
Mountingoptions :
Panel, Wall, Pipe
Material :
Stainless Steel
Application :
Industrial, HVAC, Hydraulic systems
Measurementrange :
0 to 1000 psi
Displaytype :
Digital LCD
Productname :
Pressure Measurement Instruments
Outputsignal :
4-20 mA, 0-10 V
Responsetime :
≤ 1 second
Operatingtemperature :
-20°C to 85°C
Pressuretype :
Gauge, Absolute, Differential
Description

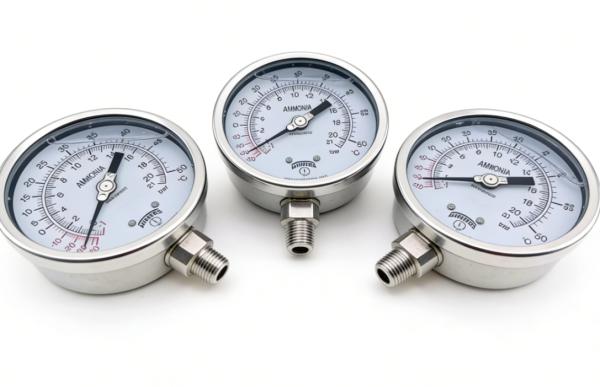

WINTERS PAM-10 Ammonia Gauge 260mm
High-precision ammonia service pressure gauge designed for industrial applications with ammonia-compatible materials and robust construction.
Product Specifications
Model WINTERS PAM Series (Ammonia Pressure Gauge)
Type Ammonia Service Pressure Gauge (Dry or Glycerin Filled)
Dial Size 2.5" (63 mm), 3.5" (90 mm), 4" (100 mm), 6" (150 mm), 8.5" (215 mm), 10" (250 mm)
Accuracy (25°C) ±0.5% to ±1% FS (4" - 10" high precision); ±1.5% FS (2.5" - 4"); ±3-2-3% FS (2.5" - 4")
Case Material AISI 304 Stainless Steel (4"-10" high precision); Steel (painted black, 2.5"-4"); Aluminum (8.5"-10")
Wetted Parts 316L Stainless Steel (Bourdon tube, socket); 304 SS movement
Lens Polycarbonate (standard); Tempered safety glass (optional)
Bezel Steel (painted black, 2.5"-4"); Crimp-On Ring (304 SS, optional)
Dial White aluminum with black and red markings (PSI/Fahrenheit dual scale)
Pointer Black anodized aluminum
Process Connection 1/4" NPT (bottom mount standard); 1/2" NPT (optional)
Fill Liquid Dry (standard); Glycerin (optional)
Ambient/Process Temperature Dry: -40°F to 150°F (-40°C to 65°C); Glycerin filled: -4°F to 150°F (-20°C to 65°C)
Over-Pressure Limit 30% of Full Scale Value
Working Pressure Max 75% of Full Scale Value
Enclosure Rating IP65 (EN 60529)
Welding TIG (for SS wetted parts)
Compliance ASME B40.100; CRN Registered; RoHS Compliant (SS internals only)
Warranty 5 Years
Pressure Range 30" Hg Vac - 0 - 300 psi (vacuum to positive pressure)
Key Features
  • Ammonia-compatible wetted parts for safe operation
  • Dual scale display (PSI/Fahrenheit) for versatile readings
  • Front flush safety case design
  • Multiple dial sizes available for various applications
  • High precision measurement with excellent accuracy
  • Robust construction with IP65 enclosure rating
Industrial Application: Specifically designed for ammonia service applications with compatible materials and construction to ensure reliable performance in demanding industrial environments.
