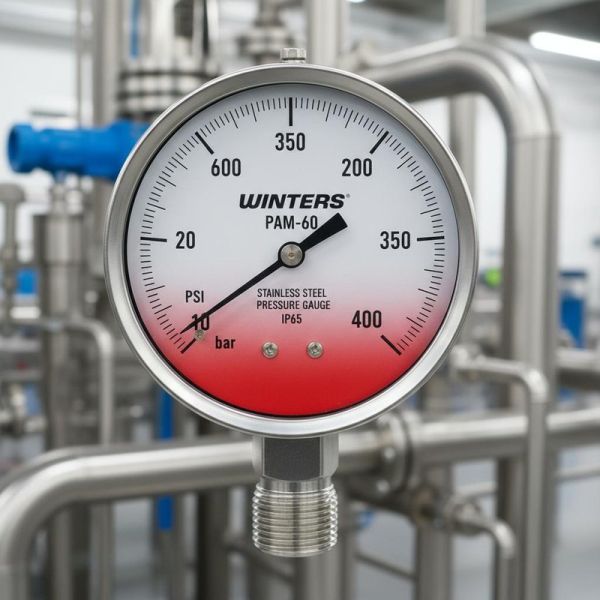

WINTERS PAM-60 Stainless Steel Ammonia Pressure Gauge with IP65 Protection and 160mm Dial Size for Industrial Use
WINTERS PAM-60 Stainless Steel Ammonia Pressure Gauge with IP65 Protection and 160mm Dial Size for Industrial Use
WINTERS PAM-60 Stainless Steel Ammonia Pressure Gauge with IP65 Protection and 160mm Dial Size for Industrial Use
WINTERS PAM-60 Stainless Steel Ammonia Pressure Gauge with IP65 Protection and 160mm Dial Size for Industrial Use
Specifications
Brand Name :
WINTERS
Model Number :
PAM-60
MOQ :
1PC
Price :
110usd
Supply Ability :
1PC 6-8WEEK
Delivery Time :
6-8WEEK
Calibration :
Factory calibrated, field adjustable
Connectiontype :
1/4 inch NPT
Powersupply :
24 V DC
Protectionrating :
IP65
Accuracy :
±0.25% of full scale
Mountingoptions :
Panel, Wall, Pipe
Material :
Stainless Steel
Application :
Industrial, HVAC, Hydraulic systems
Measurementrange :
0 to 1000 psi
Displaytype :
Digital LCD
Productname :
Pressure Measurement Instruments
Outputsignal :
4-20 mA, 0-10 V
Responsetime :
≤ 1 second
Operatingtemperature :
-20°C to 85°C
Pressuretype :
Gauge, Absolute, Differential
Description

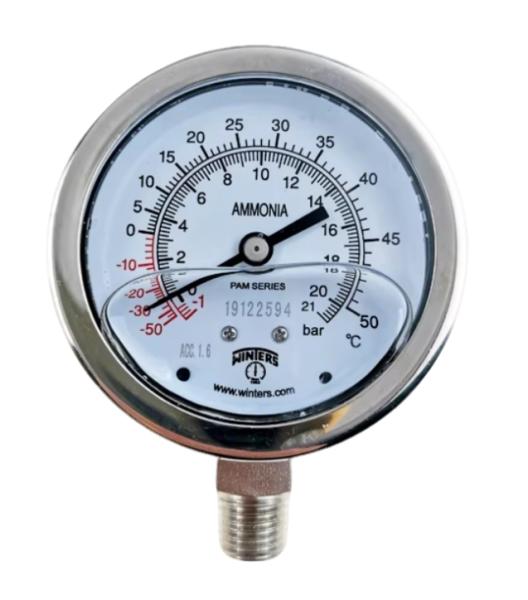

WINTERS PAM-60 Stainless Steel Ammonia Gauge
Industrial-grade ammonia pressure gauge featuring IP65 protection and 160mm dial size, designed for reliable pressure measurement in demanding industrial environments.
Product Specifications
Parameter Value
Model WINTERS PAM Series (Ammonia Pressure Gauge)
Type Ammonia Service Pressure Gauge (Dry or Glycerin Filled)
Dial Size 2.5" (63 mm), 3.5" (90 mm), 4" (100 mm), 6" (150 mm), 8.5" (215 mm), 10" (250 mm)
Accuracy (25°C) ±0.5% to ±1% FS (4" - 10" high precision); ±1.5% FS (2.5" - 4"); ±3-2-3% FS (2.5" - 4")
Case Material AISI 304 Stainless Steel (4"-10" high precision); Steel (painted black, 2.5"-4"); Aluminum (8.5"-10")
Wetted Parts 316L Stainless Steel (Bourdon tube, socket); 304 SS movement
Lens Polycarbonate (standard); Tempered safety glass (optional)
Bezel Steel (painted black, 2.5"-4"); Crimp-On Ring (304 SS, optional)
Dial White aluminum with black and red markings (PSI/Fahrenheit dual scale)
Pointer Black anodized aluminum
Process Connection 1/4" NPT (bottom mount standard); 1/2" NPT (optional)
Fill Liquid Dry (standard); Glycerin (optional)
Ambient/Process Temperature Dry: -40°F to 150°F (-40°C to 65°C); Glycerin filled: -4°F to 150°F (-20°C to 65°C)
Over-Pressure Limit 30% of Full Scale Value
Working Pressure Max 75% of Full Scale Value
Enclosure Rating IP65 (EN 60529)
Welding TIG (for SS wetted parts)
Compliance ASME B40.100; CRN Registered; RoHS Compliant (SS internals only)
Warranty 5 Years
Pressure Range 30" Hg Vac - 0 - 300 psi (vacuum to positive pressure)
Special Features
  • Ammonia-compatible wetted parts for chemical resistance
  • Dual scale display (PSI/Fahrenheit) for versatile measurement
  • Front flush safety case design for enhanced protection
  • IP65 rated enclosure for dust and water resistance
  • Multiple dial size options for various application requirements
Industrial Application: Designed specifically for ammonia service applications in industrial pressure measurement systems, providing reliable performance in challenging environments.
