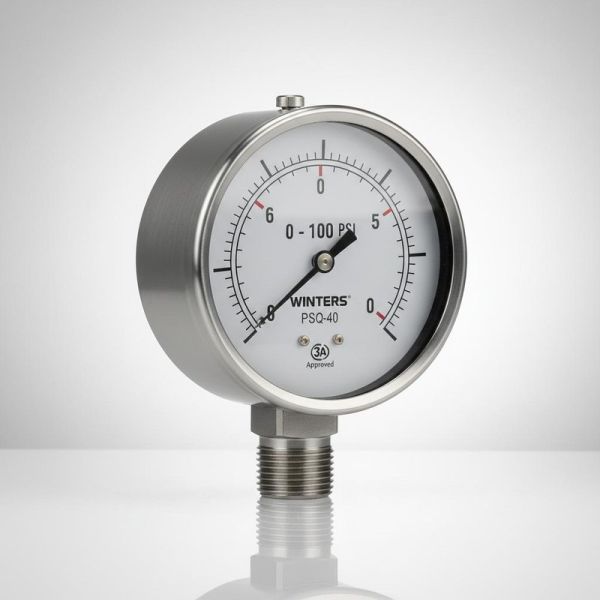

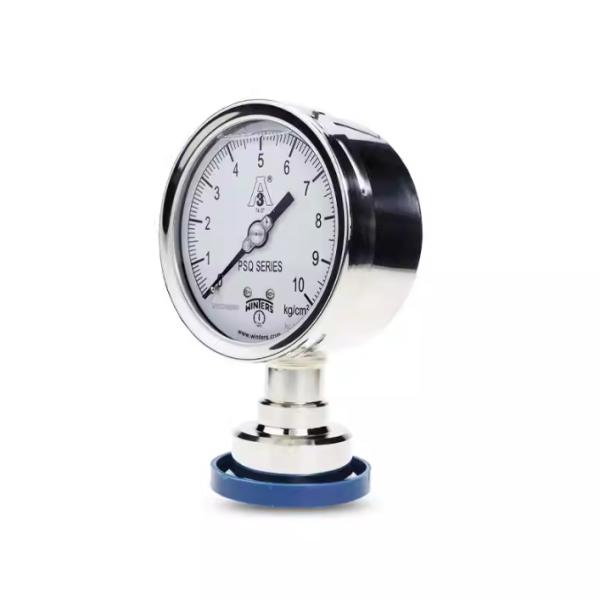

WINTERS PSQ-40 100mm Radial Sanitary Pressure Gauge with Stainless Steel Construction and 3A Approval
WINTERS PSQ-40 100mm Radial Sanitary Pressure Gauge with Stainless Steel Construction and 3A Approval
WINTERS PSQ-40 100mm Radial Sanitary Pressure Gauge with Stainless Steel Construction and 3A Approval
WINTERS PSQ-40 100mm Radial Sanitary Pressure Gauge with Stainless Steel Construction and 3A Approval
Specifications
Brand Name :
WINTERS
Model Number :
PSQ-40
MOQ :
1PC
Price :
200usd
Payment Terms :
T/T
Supply Ability :
1PC 6-8WEEK
Delivery Time :
6-8WEEK
Operatingtemperature :
-40°C to 85°C
Connectiontype :
Threaded, Flanged
Pressuretype :
Gauge, Absolute, Differential
Responsetime :
≤ 1 second
Mountingoptions :
Panel, Wall, Pipe
Displaytype :
LCD, LED
Powersupply :
24 V DC
Accuracy :
±0.25%
Protectionrating :
IP65, IP67
Outputsignal :
4-20 mA, 0-10 V, Digital
Application :
Industrial, HVAC, Automotive, Oil & Gas
Material :
Stainless Steel, Brass
Productname :
Pressure Measurement Instruments
Measurementrange :
0 to 1000 psi
Calibration :
Factory Calibrated, Field Calibratable
Description
WINTERS PSQ-40 Sanitary Pressure Gauge

100mm radial dial sanitary pressure gauge with 3A approval, designed for demanding food, beverage, and pharmaceutical applications requiring clean-in-place compatibility.

Key Specifications
Parameter Specification
Model WINTERS PSQ-40 Type
Dial Size 4" (100 mm)
Accuracy (25°C) ±1.0% of Full Scale (ANSI/ASME Grade 1A)
Case Material AISI 304 Stainless Steel with rear blowout plug
Wetted Parts 316L Stainless Steel (Ra≤0.8μm surface roughness, welded diaphragm)
Pressure Range 0...1000 psi (vacuum ranges available: -1...0 bar / 30" Hg Vac)
Process Connection 0.75" / 1.5" / 2" Tri-Clamp (sanitary); 1/2" NPT (optional)
Construction & Materials
Component Specification
Lens Polycarbonate (standard); Tempered safety glass (optional)
Bezel AISI 304 Stainless Steel Crimp-On Ring
Dial White aluminum with black markings
Pointer Black painted aluminum with zero-setting screw
Fill Liquid Food-grade Glycerin (standard); Silicone oil (optional)
Performance & Environmental
Parameter Range
Ambient Temperature -20°C to 70°C (-4°F to 156°F)
Process Temperature -20°C to 120°C (-4°F to 248°F)
Storage Temperature -40°C to 70°C (-40°F to 156°F)
Temperature Drift Max ±0.04% FS/°C (referenced at 25°C)
Enclosure Rating IP65 (EN 60529)
Over-Pressure Limit 25% of Full Scale (≤1,450 PSI); 15% for pressures ＞1,500 PSI
Special Features
  • Clean-In-Place (CIP) & Steam-In-Place (SIP) compatible
  • Electro-polished finish for superior cleanability
  • Sanitary liquid filled design
  • Zero-setting screw for calibration
  • Rear blowout plug safety feature
Certifications & Warranty
3A Approved ASME B40.100 CRN Registered RoHS Compliant 5-Year Warranty
