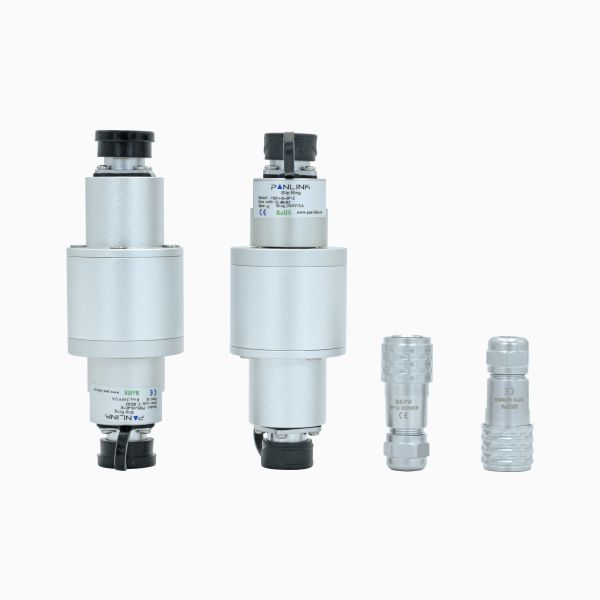

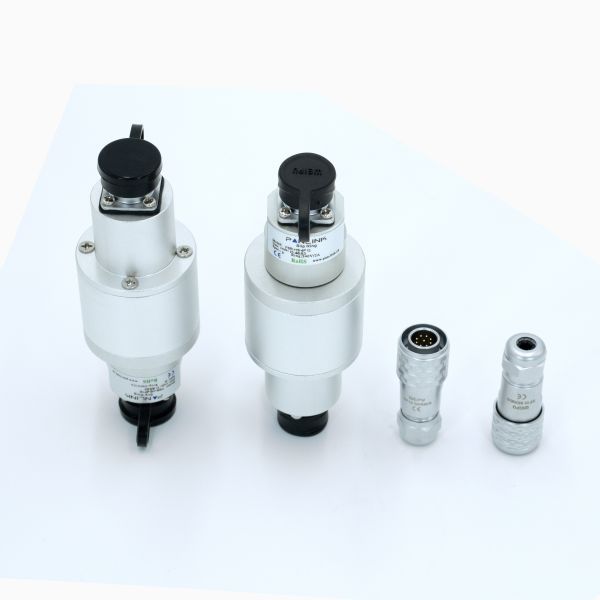

4 Power and 1 100M Ethernet Slip Ring with Aluminum Alloy Housing for Industrial Applications
4 Power and 1 100M Ethernet Slip Ring with Aluminum Alloy Housing for Industrial Applications
4 Power and 1 100M Ethernet Slip Ring with Aluminum Alloy Housing for Industrial Applications
4 Power and 1 100M Ethernet Slip Ring with Aluminum Alloy Housing for Industrial Applications
Specifications
Brand Name :
Panlink
Model Number :
PSR-HS-4P1E
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Ethernet Transmission :
1 Channel
Voltage Rating :
24VAC
Current Rating :
Power: 4A
Rotating Speed :
300rpm
Protection Degree :
IP51(higher or lower on request)
Operating Temperature :
-40℉ to +176℉ (-40℃ to +80℃)
Description

4 Power and 1 100M Ethernet Slip Ring with Al Alloy Housing

PSR-HS-4P1E

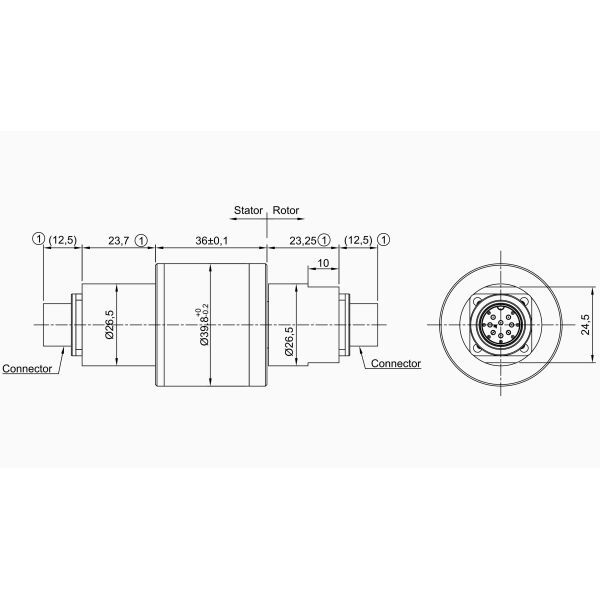

Dimensions in millimeters

4 Power and 1 100M Ethernet Slip Ring with Aluminum Alloy Housing for Industrial Applications

Specification

Channels 4 for Power Transmission, 1 for 100BaseT Ethernet Transmission
Electrical Specifications
Voltage Rating 24VAC
Current Rating Power: 4A
Insulation Resistance Max 50MΩ @ 500VDC
Dielectric Noise 200VAC @ 60Hz, 10s
Electric Noise Max 10mΩ
Mechanical Specifications
Working Life 100 million revolutions
Rotating Speed 300rpm
Operating Temperature -40℉ to +176℉ (-40℃ to +80℃)
Storage Temperature -49℉ to +185℉ (-45℃ to +85℃)
Operating Humidity 0~60%RH
Torque 10N•cm
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP51(higher or lower on request)
