PSR-JC34-120 Miniture Capsule Slip Ring

A miniature slip ring capsule is an electromechanical device that allows the transmission of low power and data from a stationary mechanism to a rotating mechanism. The PSR-JC34-120 provides highly compact packaging to 120 circuits in very small 34mm diameter housing with 113 mm stator length, supports various digital video signals and communication protocols, it is the ideal rotary interface for small systems. Robust structure and high reliability allow it to well suit for demanding operating environments.

Features

• 120 circuits packaged in a self-contained envelope 34 mm diameter and 113 mm stator length

• Up to 300 rpm operation

• Max 10mΩ electrical noise

• Up to 10 Million revolutions lifetime

• Outstanding transmission of Gigabit Ethernet, HD video, Composite video, CAN bus, Discrete and other

signals

• Unique plating techniques and superior materials for high performance and reliability

• Precise, tight packaging capabilities for meeting stringent design criteria

• High reliability, meets military shock and vibration requirements

• Higher power circuits can be combined

• 40, 60 and 80 circuits configurations available

Typical Applications

• Gimballed pitch, roll and yaw axes of inertial navigation systems

• Airborne camera platforms

• Unmanned aerial vehicles (UAV)

Specification
Circuits 120
Rating Voltage 110 VAC / VDC
Rating Current 2A per circuit
Insulation Resistance 200 MΩ @500 VDC
Dielectric Strength 200 VAC @ 50Hz
Electric Noise Max 10mΩ
Operating Speed Max 300 rpm
Torque Max 20 g.cm
Lifetime 10 million revolutions
Contact Material Gold-Gold
Housing Material Aluminum Alloy
Lead Wire 450mm AWG#26Teflon wires
Working Temperature -40℃~ +80℃
Storage Temperature -45℃~ +85℃
Working Humidity 95±3%(30℃+5℃)
Vibration MIL-STD-810H
Shock MIL-STD-810H
Protection Level IP51

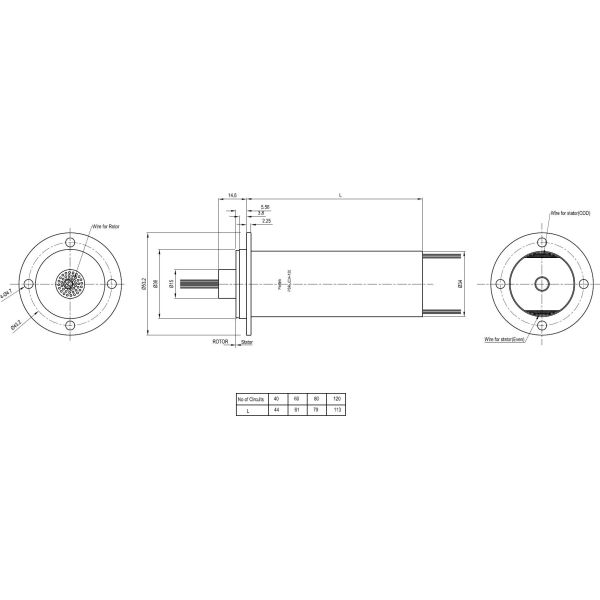

PSR-JC34-120 Dimensions
PSR-JC34-120 Military Capsule SSlip Ring Manufacturers 34mm Compatible With Multiple Signal Types
HOW TO ORDER
No Model No Rings No Power(1A)/Signal Power(5A) Gbits Ethernet 3G-SDI OD Length
1 PSR-JC34--60 60 60 34 61
2 PSR-JC34--80 80 80 79
3 PSR-JC34--72S1G 72 1 　
4 PSR-JC34--77S-SDI 77 　 1
5 PSR-JC34--69S1G-SDI 69 1 1
6 PSR-JC34--66S1G-2SDI 66 1 2
7 PSR-JC34--2P74S 74 2
8 PSR-JC34--2P63S1G-SDI 63 2 1 1
9 PSR-JC34--120 120 120 113
10 PSR-JC34--112S1G 112 1
11 PSR-JC34--117S-SDI 117 1
12 PSR-JC34--109S1G-SDI 109 1 1
13 PSR-JC34--106S1G-2SDI 106 1 2
14 PSR-JC34--2P114S 114 2
15 PSR-JC34--2P103S1G-SDI 103 2 1 1
