Coaxial Rotary Joint (2-way 2GHz) passing GJB150.16A Military Standard

2B104-DHH

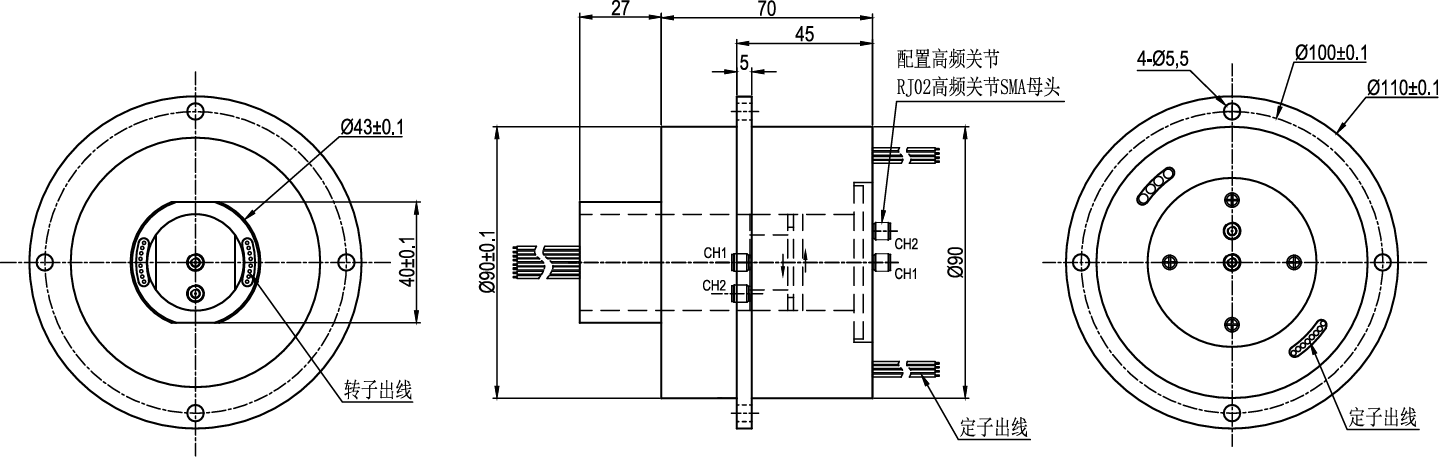

Dimensions in millimeters

2GHz Frequency Coaxial Rotary Joint with GJB150.16A Military Standard and IP65 Protection

Specifications

Circuits 2 for Power Transmission, 10 for Signal Transmission, 2 for RF Transmission
RF Rotary Joint Specifications
RF Channels Channel 1 Channel 2
Frequency Range DC-2GHz DC-2GHz
Connector Types SMA SMA
Insertion Loss Max.(dB) 0.25 0.5
Insertion Loss Ripple(dB) 0.1 0.15
VSWR 1.2 1.5
VSWR Ripple 0.1 0.2
Isolation Min. (dB) 50 50
Average Power Max. 50W @ 1GHz 50W @ 1GHz
Electrical Specifications
Project Power Signal
Voltage Rating 24VDC 24VDC
Current Rating 8A 2A
Insulation Resistance Max 200MΩ @ 1000VDC Max 100MΩ @ 100VDC
Dielectric Noise 500VAC @ 50Hz, 60s 500VAC @ 50Hz, 60s
Electric Noise Max 10mΩ
Lead Cable AWG24 Teflon
Mechanical Specifications
Working Life 5 million revolutions
Rotating Speed 50rpm
Operating Temperature -40℉ to +185℉ (-40℃ to +85℃)
Storage Temperature -67℉ to +185℉ (-55℃ to +85℃)
Operating Humidity 0~95%RH
Torque 0.5N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP65(higher or lower on request)
Weight ≤1500g (including cables)
Shock GJB150.16A-2009
Vibration GJB150.16A-2009
