Specifications
Brand Name :
Panlink
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
MOQ :
1
Payment Terms :
T/T
Name :
Military Slip Ring
Price :
Negotiable
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

Military Slip Ring

Robust / Durable Military Slip Ring 300rpm With Rigorous Testing Standards

The modern aerospace and military industries are placing increasingly stringent demands on slip ring technology, driven by advancements in equipment and the harsh environmental conditions encountered. Whether in aerospace precision testing platforms, mobile missile launchers, UAV camera systems, Forward-Looking-Infrared systems, helicopters, or armed command vehicles, slip rings play a crucial role in providing reliable power and data/signal transfer interfaces between stationary and rotating components.

A slip ring assembly designed for aerospace and military applications must operate reliably in the most rugged environments. It is required to withstand high vibrations and shocks, operate across a wide temperature range, and offer robust environmental sealing capabilities. Electrically, it must meet challenges such as high-speed data transfer, extremely low contact noise and resistance, and effective EMI shielding within demanding space constraints. AOOD effectively and economically addresses all these challenges.

Feature
• High power capability, support maximum 15000VAC high voltage and maximum 1000Amp high current design
• Support more than 500 channels through a single slip ring unit
• Through bore design, cylindrical shape, single pancake or stacked pancakes design available
• Combination of two or three multi-channel slip rings to meet height or diameter limitation available
• Combination of high frequency coax or FORJ channels available
• Integration with encoders, connectors and other accessories
• Full environmental sealing capabilities up to IP68
• Meets military shock and vibration requirements
• Support various data communication protocols
• High speed data transfer capabilities

Main Application
• Additional isolation for sensitive circuits • Stabilized machine gun platforms
• EMI shielding capabilities • Armed command vehicles
• Wide operating temperature envelope • Military ships
• Reliability testing available • Mobile missile launchers
• High reliability and long life • Aerospace systems
• Hydraulic rotary joint options • Precision testing platforms

Specification
Voltage Rating 1000VAC
Current Rating 2A,10A
Insulation Resistance 1000MΩ @ 500VDC
Electrical Noise 10mΩ max
Dielectric Strength 600VDC/ 50Hz/ 60s
Rotating Speed, Max 300rpm
Torque During Rotation, Max 3~5g.cm
Working Temperature -50℃ to +85℃(-40℉ to +176℉)
Storage Temperature -45℃ to +85℃(-49℉ to +185℉)
Shock MIL-STD-810H
Relative Humidity 10% to 90% RH non-condensing

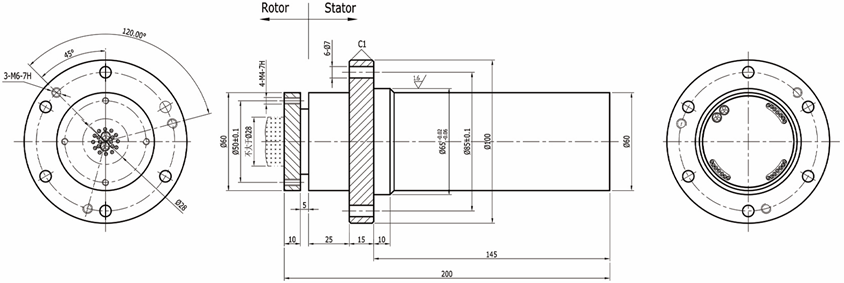

PSR-JS-47 Dimensions
• Total 47 ways
• Dimensions: 60mm OD x 200mm L
• Power supply: 6 x 10A, 220VAC
• Signal type: analog signal, RS422/ RS485, Gigabit Ethernet
• Electrical noise: ＜10mΩ
• Service life: ＞60,000,000 revolutions

Robust / Durable Military Slip Ring 300rpm With Rigorous Testing Standards

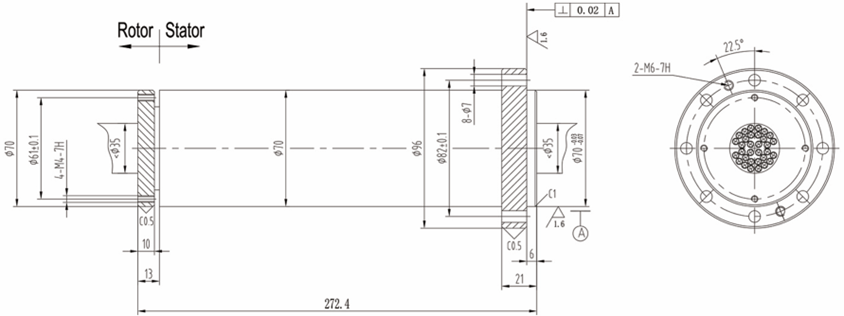

PSR-JS-81 Dimensions

• Total 81 ways
• Dimensions: 70mm OD x 272.4mm L
• Power supply: 10A, 35A
• Signal type: analog signal, RS422/ RS485, 100M Ethernet, discrete signal
• Electrical noise: ＜10mΩ
• Mechanic vibration: MIL-STD-810H

Robust / Durable Military Slip Ring 300rpm With Rigorous Testing Standards
