Aluminium Alloy Panlink Slip Ring PSR-JC-44 Low Noise Slip Ring IP54
Aluminium Alloy Panlink Slip Ring PSR-JC-44 Low Noise Slip Ring IP54
Specifications
Brand Name :
Panlink
Model Number :
PSR-JC-44
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Certification :
ISO 9001: 2015, CE
Name :
Panlink Slip Ring
Diameter :
22mm
Length :
54.5mm
Lifetime :
10 million revolutions
Contact Material :
Gold-Gold
Housing material :
Aluminium Alloy
Price :
Negotiable
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

PSR-JC-44 Defense Miniature Slip Ring Capsule

Panlink aerospace and defense miniature slip ring capsules are specially developed for inertial navigation systems,unmanned aerial vehicles(UAV) and other high end precision systems. These slip rings adopt unique manufacturing technology to achieve multiple channels transmission in miniature space while with the advantages of small friction, low torque, low noise and light weight.

Existing 36, 38, 44, 60, 78 and 168 ways aerospace and defense miniature slip rings capsules available. Each slip ring assembly has been passed temperature, vibration and shock environment testing to provide high reliability performance for aerospace and defense operating systems.

Features
■ 44 rings packaged in a self-contained envelope 22mm barrel diameter and 54.5mm long
■ Superior signal handling performance: compatible with with 1553B, Gigabit Ethernet, RS422, analog
video and various communication and control signals
■ Gold on gold sliding contact technology ensure high reliable Typical Applications
transmission ■ Inertial navigation systems
■ Operating speed up to 200rpm ■ Unmanned aerial vehicles(UAV)
■ Electrical noise < 20mΩ per circuit pair ■ Weapon Systems
■ Up to 10 million revolutions long service life ■ High precision systems

Specification
Voltage 48VDC(Higher Optional0
Current 1A (2A or Higher Optional)
Insulation Resistance 200MΩ@500VDC
Eletric Noise 20mΩ max
Dielectric Strength 500VAC@50Hz
Operating Speed 200rpm
Torque <0.01N*M
Life Time 10 million revolutions
Contact Material Gold-Gold
Lead Wires 300mm AWG#30 irradiation crosslinking wires
Housing Material Aluminium Alloy
Working Temperature -40℃~+80℃
Storage Temperature -45℃~+85℃
Relative Humidity 95±3%(30℃+5℃)
Protection Level IP54
Vibration MIL-STD-810G
Shock MIL-STD-810G

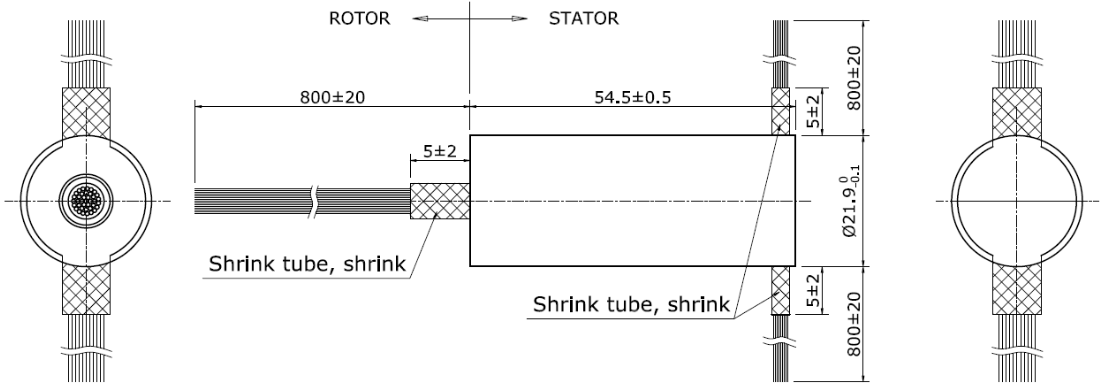

PSR-JC-44 Dimensions

Aluminium Alloy Panlink Slip Ring PSR-JC-44 Low Noise Slip Ring IP54
