PSR-JC23-68 Low Cost Military Slip Ring Capsule For Airborne Camera Platforms / UAV
PSR-JC23-68 Low Cost Military Slip Ring Capsule For Airborne Camera Platforms / UAV
Specifications
Brand Name :
Panlink
Model Number :
PSR-JC23-68
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Certification :
ISO 9001: 2015, CE
Name :
Military Slip Ring
Contact Mterial :
Gold-Gold
Housing Material :
Aluminum Alloy
Protection Level :
IP51
Lifetime :
10 million revolutions
Price :
Negotiable
Description

PSR-JC23-68 Minuture Capsule Slip Ring

A miniature slip ring capsule is an electromechanical device that allows the transmission of low power and data from a stationary mechanism to a rotating mechanism. The PSR-JC23-68 provides highly compact packaging to 68 circuits in very small 23 mm diameter housing with 74 mm overall length, supports various digital video signals and communication protocols, it is the ideal rotary interface for small systems. Robust structure and high reliability allows it to well suit for demanding operating environments.

Features

• 68 circuits packaged in a self-contained envelope 23 mm diameter and 74 mm length

• Up to 300 rpm operation

• Max 10mΩ electrical noise

• Up to 10 Million revolutions lifetime

• Outstanding signal handling capability to transfer the most demanding communication protocols

• Unique plating techniques and superior materials for high performance and reliability

• Precise, tight packaging capabilities for meeting stringent design criteria

• High reliability, meets military shock and vibration requirements

Typical Applications

• Gimballed pitch, roll and yaw axes of inertial navigation systems

• Airborne camera platforms

• Unmanned aerial vehicles (UAV)

Specification

Electrical
Circuits 68
Rating Voltage 48 VAC / VDC
Rating Current 2A per circuit
Insulation Resistance 200 MΩ @500 VDC
Dielectric Strength 200 VAC @ 50Hz
Electric Noise Max 10mΩ
Mechanical
Operating Speed Max 300 rpm
Torque Max 20 g.cm
Lifetime 10 million revolutions
Material
Contact Material Gold-gold
Housing Material Aluminum Alloy
Lead Wire 450mm AWG#28 Teflon wires
Environmental
Working Temperature -40℃~ +80℃
Storage Temperature -45℃~ +85℃
Working Humidity 95±3%(30℃+5℃)
Vibration MIL-STD-810H
Shock MIL-STD-810H
Protection IP51

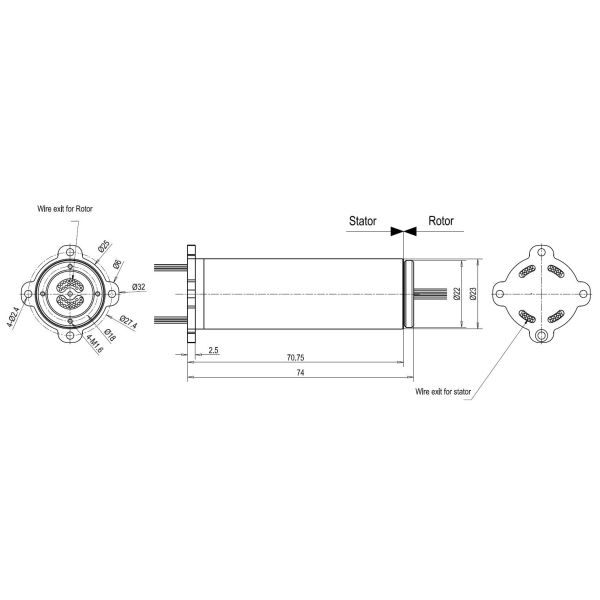

PSR-JC23-68 Dimensions

PSR-JC23-68 Low Cost Military Slip Ring Capsule For Airborne Camera Platforms / UAV
Model No Rings Power(1A)/Signal Power(5A) Gbits Ethernet 3G-SDI OD Length
1 PSR-JC23--40 40 40 　 　 　 23 49
2 PSR-JC23--68 68 60 　 　 　 74
3 PSR-JC23--60S1G 60 　 1 　
4 PSR-JC23--65S-SDI 65 　 　 1
5 PSR-JC23--57S1G-SDI 57 　 1 1
6 PSR-JC23--54S1G-2SDI 54 　 1 2
7 PSR-JC23--2P62S 62 2 　 　
8 PSR-JC23--2P51S1G-SDI 51 2 1 1
