Aerospace Miniature Slip Ring

Pan-link has been producing high performance and reliability slip rings for aerospace and defense applications for over 20 years. These miniature slip ring capsules are highly compact and rugged designed, ideal for use in critical space applications to solve the power and complex signal /data transmission.

A miniature slip ring capsule is an electromechanical device that allows the transmission of low power and data from a stationary mechanism to a rotating mechanism. The PSR-JM12-60 provides highly compact packaging to 60 circuits in very small 12.7mm diameter housing with 56.8mm overall length, supports Gigabit Ethernet, 3G-SDI and other various signals and data transmission, it is the ideal rotary interface for small systems. Robust structure and stainless steel body allow it to well suit for demanding operating environments.Existing 20, 30, 40 and 50 circuits designs with shorter length are available.

Feature

• Up to 60 circuits packaged in a self-contained envelope 12.7mm diameter and 56.8 mm length

• Rugged stainless steel body for demanding environments

• Up to 100 rpm operation

• Max 10mΩ electrical noise

• Up to 10 Million revolutions lifetime

• Outstanding signal handling capability to transfer the most demanding communication protocols

• Unique plating techniques and superior materials for high performance and reliability

• Precise, tight packaging capabilities for meeting stringent design criteria

• Ideal for demanding space applications

Typical Application

• Gimballed pitch, roll and yaw axes of inertial navigation systems

• Airborne camera platforms

• Unmanned aerial vehicles (UAV)

• Laboratory equipment

Specification

Electrical
Circuits Max 60
Rating Voltage 48 VAC / VDC
Rating Current 1A per circuit
Insulation Resistance 200 MΩ @500 VDC
Dielectric Strength 200 VAC @ 50Hz
Electric Noise Max 10mΩ

Mechanical
Operating Speed Max 100rpm
Torque Max 50g.cm
Lifetime 10 million revolutions
Matreial
Contact Material Gold on gold
Housing Material 304 stainless steel
Lead Wire 450mm AWG#30 Teflon Wires

Environment
Working Tem perature -40℃~+80℃
Storage Temperature -45℃~+85℃
Working Humidity 95±3%(30℃+5℃)
Viration MIL-STD-810H
Shock MIL-STD-810H
Protection IP51

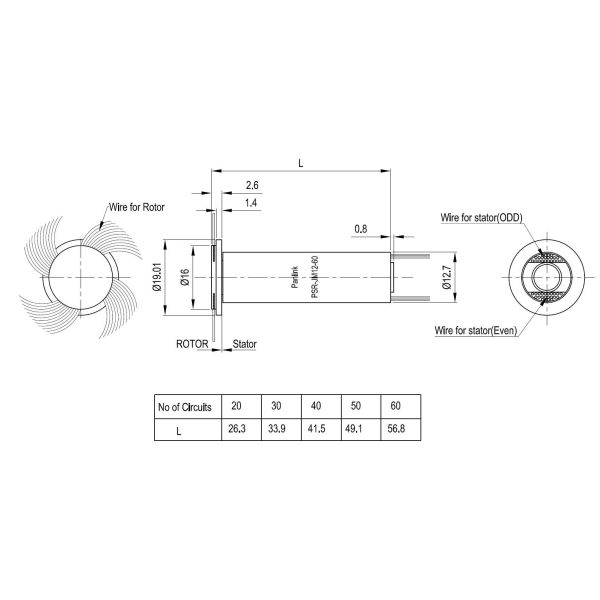

Drawing
Aerospace Miniature Slip Ring , Compact Slip Ring 12.7mm Up To 120 Channel
How to Order
No Model No Rings No Power(1A)/Signal Power(5A) G bits Ethernet 3G-SDI OD Length
1 PSR-JM12--20 20 20 　 　 　 12.7 26.3
2 PSR-JM12--30 30 30 　 　 　 33.9
3 PSR-JM12--40 40 40 　 　 　 41.5
4 PSR-JM12--50 50 50 　 　 　 49.1
5 PSR-JM12--60 60 60 　 　 　 56.8
6 PSR-JM12--52S1G 52 　 1 　
7 PSR-JM12--57S-SDI 57 　 　 1
8 PSR-JM12--49S1G-SDI 49 　 1 1
9 PSR-JM12--46S1G-2SDI 46 　 1 2
10 PSR-JM12--2P54S 54 2 　 　
11 PSR-JM12--2P43S1G-SDI 43 2 1 1
