PSR-JC28-68 Military Slip Ring 28mm Diameter For Airborne Camera Platforms / UAV
PSR-JC28-68 Military Slip Ring 28mm Diameter For Airborne Camera Platforms / UAV
Specifications
Brand Name :
Panlink
Model Number :
PSR-JC28-68
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Name :
Military Slip Ring
Diameter :
28mm
Length :
55mm
Lifetime :
10 million revolutions
Circuit :
68
Contact Material :
Gold-Gold
Housing Material :
Aluminum Alloy
Price :
Negotiable
Description

PSR-JC28-68

A miniature slip ring capsule is an electromechanical device that allows the transmission of low power and data from a stationary mechanism to a rotating mechanism. The PSR-JC28-68 provides highly compact packaging to 68 circuits in very small 28 mm diameter housing with 55 mm overall length, supports various digital video signals and communication protocols, it is the ideal rotary interface for small systems. Robust structure and high reliability allow it to well suit for demanding operating environments.

Features

• 68 circuits packaged in a self-contained envelope 28 mm diameter and 55 mm length

• Up to 100 rpm operation

• Max 10mΩ electrical noise

• Up to 10 Million revolutions lifetime

• Outstanding signal handling capability to transfer the most demanding communication protocols

• Unique plating techniques and superior materials for high performance and reliability

• Precise, tight packaging capabilities for meeting stringent design criteria

• High reliability, meets military shock and vibration requirements

Typical Applications

• Gimballed pitch, roll and yaw axes of inertial navigation systems

• Airborne camera platforms

• Unmanned aerial vehicles (UAV)

Specification
Circuits 68
Rating Voltage 48 VAC / VDC
Rating Current 2A per circuit
Insulation Resistance 200 MΩ @500 VDC
Dielectric Strength 200 VAC @ 50Hz
Electric Noise Max 10mΩ
Operating Speed Max 300 rpm
Torque Max 90 g.cm
Lifetime 10 million revolutions
Contact Material Gold-Gold
Housing Material Aluminium Alloy
Lead Wire 450mm AWG#30 Teflon Wires
Working Temperature -40℃~+80℃
Storage Temperature -45℃~+85℃
Working Humidity 95±3%(30℃+5℃)
Vibration MIL-STD-810H
Shock MIL-STD-810h
Protection Level IP51

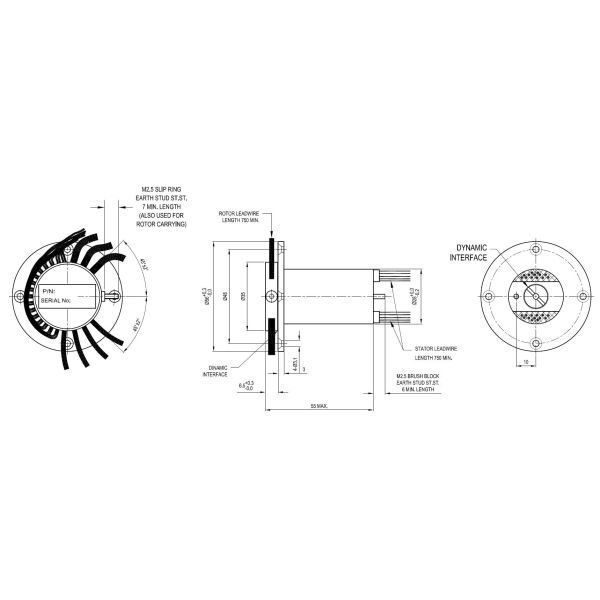

PSR-JC28-68 Dimensions
