MIL-STD-810G Military MM 50/125μm Fiber Optic Rotary Joint with 10 Power Transfer
MIL-STD-810G Military MM 50/125μm Fiber Optic Rotary Joint with 10 Power Transfer
MIL-STD-810G Military MM 50/125μm Fiber Optic Rotary Joint with 10 Power Transfer
MIL-STD-810G Military MM 50/125μm Fiber Optic Rotary Joint with 10 Power Transfer
Specifications
Brand Name :
Panlink
Model Number :
PSR-C18-8P4S-FORJ
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Military Standard :
MIL-STD-810G
Fiber Type :
MM 50/125μm Fiber
Wavelength nm :
850
Connector Types :
LC/PC
Description

MIL-STD-810G Military MM 50/125μm Fiber Optic Rotary Joint with 10 Power Transfer

PSR-C18-8P4S-FORJ

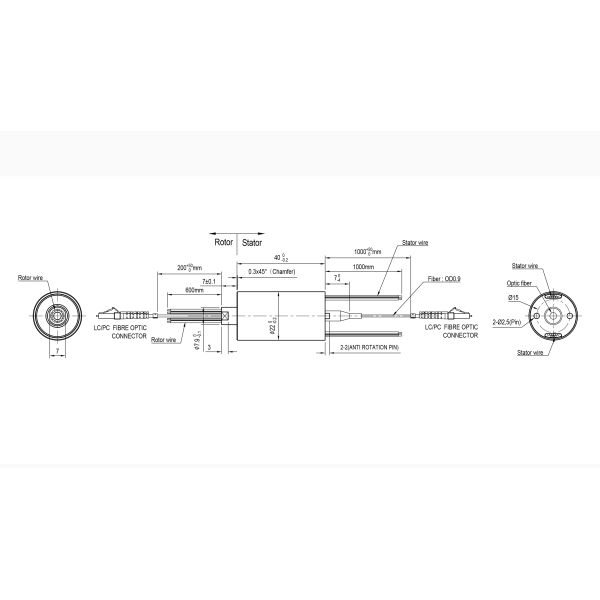

Drawing (Dimensions in millimeters)

MIL-STD-810G Military MM 50/125μm Fiber Optic Rotary Joint with 10 Power Transfer

Specifications:

Circuits 10 for Power Transmission, 6 for Signal Transmission, 1 for FORJ
Fiber Optic Specifications
Fiber Type MM 50/125μm Fiber
Wavelength nm 850
Connector Types LC/PC
Insertion Loss Max.(dB) 1.5
Insertion Loss Ripple(dB) 0.7
Return Loss(dB) 25
Electrical Specifications
Current Rating Power:1A, Signal: 1A
Voltage Rating 48VDC
Insulation Resistance Max 500MΩ @ 500VDC
Electrical Noise Max 100mΩ
Dielectric Noise 500VAC @ 50Hz, 60s
Lead Cable Teflon Wire
Mechanical Specifications
Rotating Speed 120rpm
Operating Temperature -4℉ to +160℉ (-20℃ to +71℃)
Storage Temperature -22℉ to +167℉ (-25℃ to +80℃)
Operating Humidity 0~60%RH
Torque 1.0N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Shock MIL-STD-810G
Vibration MIL-STD-810G
