MIL-STD-461G/810G Compliant Military Slip Ring with 47 Signals and 5 Power Circuits at 50rpm
MIL-STD-461G/810G Compliant Military Slip Ring with 47 Signals and 5 Power Circuits at 50rpm
MIL-STD-461G/810G Compliant Military Slip Ring with 47 Signals and 5 Power Circuits at 50rpm
MIL-STD-461G/810G Compliant Military Slip Ring with 47 Signals and 5 Power Circuits at 50rpm
MIL-STD-461G/810G Compliant Military Slip Ring with 47 Signals and 5 Power Circuits at 50rpm
MIL-STD-461G/810G Compliant Military Slip Ring with 47 Signals and 5 Power Circuits at 50rpm
Specifications
Brand Name :
Panlink
Model Number :
PSR-TS-6P70S
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Circuits :
(5×)Power, (47×)Signal
Rotating Speed :
50rpm
Vibration :
MIL-STD-810G
EMI/EMC :
MIL-STD-461G
Description
MIL-STD-461G/810G, 47 signals and Power Slip Ring
PSR-TS-6P70S

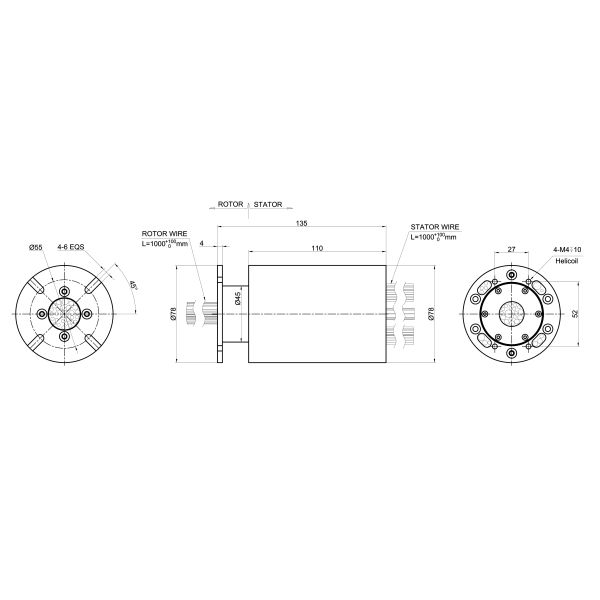

Drawing (Dimensions in Millimeters)

MIL-STD-461G/810G Compliant Military Slip Ring with 47 Signals and 5 Power Circuits at 50rpm

Specification:
Circuits 5 for Power Transmission, 47 for Signal Transmission
Electrical Specifications
Voltage Rating 300VAC/40VDC
Current Rating Power: 8A, 4A, Signal: 2A
Insulation Resistance Max 100MΩ @ 250VDC
Dielectric Noise 1500VAC @ 50Hz, 60s
Electric Noise Max 5mΩ
Dynamic Resistance Max 25mΩ @0.1A, 1KHz, 25rpm
Crosstalk -35dB
Lead Cable PTFE
Mechanical Specifications
Working Life 10 million revolutions
Rotating Speed 50rpm
Operating Temperature -22℉ to +158℉ (-30℃ to +70℃)
Storage Temperature -40℉ to +176℉ (-40℃ to +80℃)
Operating Humidity 0~85%RH
Torque 0.2 N•m
Vibration MIL-STD-810G
EMI/EMC MIL-STD-461G
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP53(higher or lower on request)
Surface Finish Sulfuric Acid Anodizing
Weight 2kg
