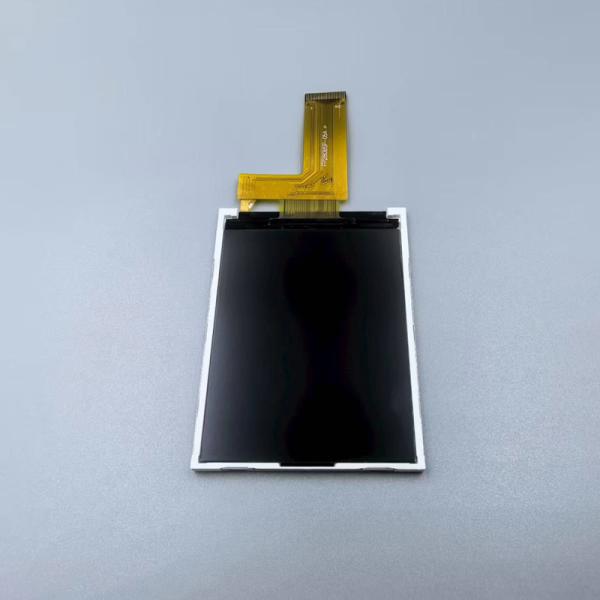

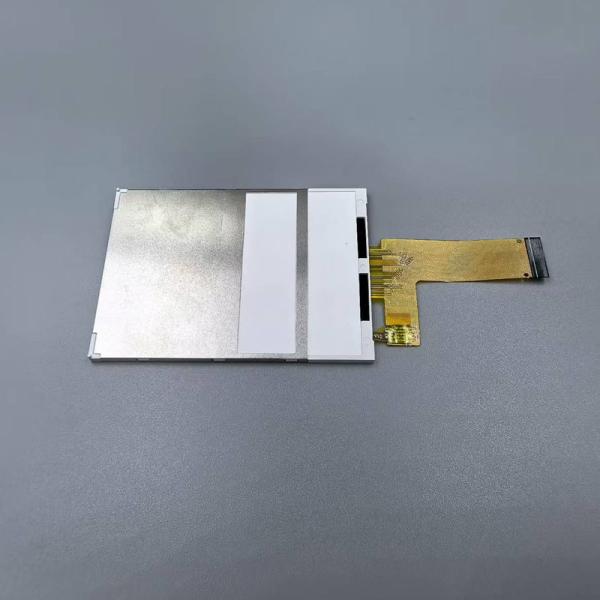

2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320
2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320
2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320
2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320
2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320
2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320
2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320
2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320
2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320
2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320
2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320
2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320
Specifications
Brand Name :
Limito
Model Number :
LBS280KP-IG01
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
2.8
Drive IC :
ST7789P3
Interface :
4 Line SPI
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
4 White LED Parallel
Brightness :
300
Description

2.4 Inch TFT LCD Module ST7789 SPI interface with a 350cd/m2 brightness

LIMITO IPS TFT LCD Display Description:

LBS280KP-IG01 is a 240RGBX320 dot-matrix TFT LCD module. This module is composed ofa TFT LCD

Panel, driver ICs, FPC and a Backlight unit.

LIMITO IPS TFT LCD Display Specification:

LCD Size

2.8

Display Mode

Normally black

Resolution

240(H)RGB x320(V)

Pixel pitch

0.18(H) x 0.18(M)

Active area

43.2(H) X 57.6(M)

Module size

50.0(H) x 69.2(V) x2.25 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

300 (TYP)Cd/m2

Viewing Direction

All View

Weight

12.6g

LIMITO IPS TFT LCD Display Mechanical Drawing

2.8 Inch SPI Serial TFT Display Spi Driver IC ST7789 240*320

LIMITO IPS TFT LCD Display Advantages:

Advantages of 2.8 Inch SPI Serial TFT LCD Touch Screen Module (Driver IC ST7789P3, 240x320)

  1. Touch Functionality: The integrated touch screen allows for intuitive user interaction, enabling gestures and direct manipulation of on-screen elements.
  2. High Resolution: With a resolution of 240x320, this display provides sharp and clear visuals, enhancing the overall user experience.
  3. SPI Interface: The SPI serial interface facilitates fast data transmission and easy integration with microcontrollers, streamlining the development process.
  4. Vibrant Color Display: TFT technology ensures bright, vivid colors, making graphics and text more engaging and easier to read.
  5. Wide Viewing Angles: The display maintains image quality and color consistency from various angles, allowing for flexible device design and placement.
  6. Compact Size: At 2.8 inches, the module is small and lightweight, making it suitable for portable devices and applications with limited space.
  7. Low Power Consumption: The module is designed for energy efficiency, making it ideal for battery-powered devices and extending operational life.
  8. Versatile Applications: Suitable for a variety of uses, including consumer electronics, industrial controls, medical devices, and IoT applications.
  9. Durable Design: Built to withstand various environmental conditions, ensuring reliable performance in different settings.
  10. Easy to Program: The ST7789P3 driver IC allows for straightforward programming and Customizedizedization, making it accessible for developers of varying skill levels.
