1.3 Inch IPS TFT Display 240x240 Resolution With SPI Interface
1.3 Inch IPS TFT Display 240x240 Resolution With SPI Interface
Specifications
Brand Name :
Limito
Model Number :
LHS133TP-IF05
Place of Origin :
China
Diagonal Screen Size :
1.3
Drive IC :
ST7789P3
Interface :
8Bit 8080 MCU & 4 Line SPI
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
2 White LED Parallel
Brightness :
350
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Description

1.3inch TFT LCD Screen Display 240x240 Resolution SPI Interface

LIMITO IPS TFT LCD Display Description:

LHS133TP-IF05 is a 240RGBX240 dot-matrix TFT LCD module. This module is composed ofa TFT LCD Panel, driver ICs, FPC and a Backlight unit.

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.3

Display Mode

Normally black

Resolution

240(H)RGB x240(V)

Pixel pitch

0.0975(H) x 0.0975(V)

Active area

23.4(H)x 23.4(M)

Module size

26.16(H) X 29.22(M) x1.5 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

350 (TYP)Cd/m2

Viewing Direction

All View

Weight

2.4g

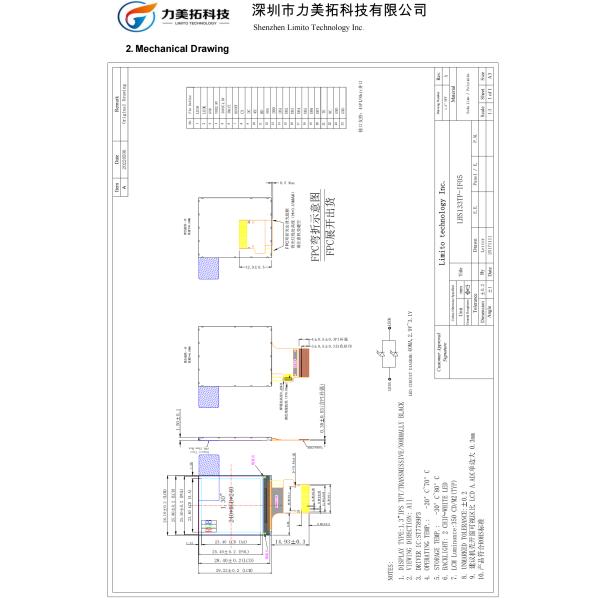

LIMITO IPS TFT LCD Display Mechanical Drawing

1.3 Inch IPS TFT Display 240x240 Resolution With SPI Interface

LIMITO IPS TFT LCD Display Application:

The 1.3-inch TFT LCD screen, featuring a resolution of 240x240 pixels and an SPI interface, is suitable for a wide range of applications:

  1. Wearable Devices: Ideal for smartwatches and fitness trackers, providing clear and vibrant visuals for user interfaces and notifications.
  2. Embedded Systems: Commonly used in microcontroller projects and development boards, allowing for easy integration and display of data.
  3. Consumer Electronics: Perfect for handheld gaming devices, remote controls, and portable electronic gadgets, enhancing user interaction with colorful graphics.
  4. Industrial Applications: Useful in control panels and monitoring systems, where clear display of operational data and status is essential.
  5. Smart Home Devices: Employed in smart appliances and home automation systems, enabling users to control and monitor their environments easily.
  6. Medical Equipment: Suitable for portable diagnostic tools and health monitoring devices, providing clear visual feedback to users and healthcare professionals.
