Specifications
Brand Name :
Limito
Model Number :
LH105T-IF08
Place of Origin :
China
Diagonal Screen Size :
1.05
Drive IC :
GC9A01
Interface :
4 Line SPI
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
1 White LED
Brightness :
400
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Description

GC9A01 4 Line SPI 1.05 Inch 120RGBx240 IPS TFT Display Screen

LIMITO IPS TFT LCD Display Description:

LH105T-IF08 is a 120RGBX240 dot-matrix TFT LCD module. This module is composed ofa TFT LCD Panel, driver ICs, FPC and a Backlight unit.

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.05

Display Mode

Normally black

Resolution

120(H)RGB x240(M)

Pixel pitch

0.099(H) x 0.099(V)

Active area

11.88(H) x 23.76(V)

Module size

14.25(H) x 28.6(V) x1.6 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

400 (TYP)Cd/m2

Viewing Direction

All View

Weight

1.3g

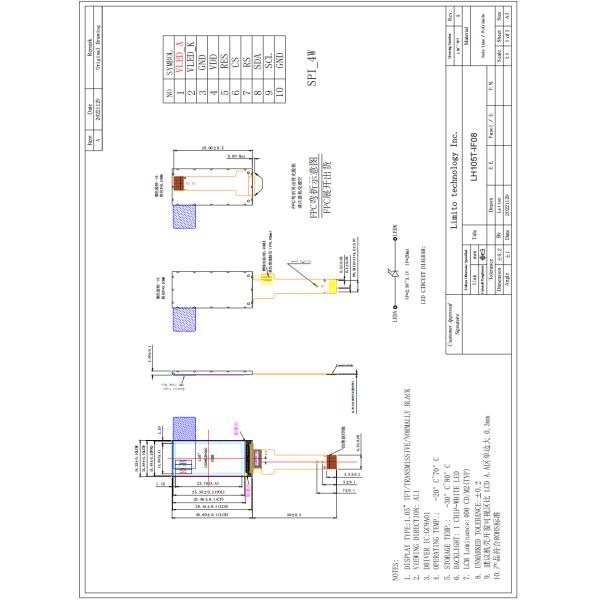

LIMITO IPS TFT LCD Display Mechanical Drawing

GC9A01 4 Line 1.05 Inch 120RGBx240 Ips TFT Panel TFT Lcd Ips Display

LIMITO IPS TFT LCD Display Application:

The GC9A01 1.05-inch IPS TFT display, with a resolution of 120RGB x 240 and a 4-line SPI interface, is suitable for various applications:

  1. Wearable Technology: Ideal for smartwatches and fitness bands, providing crisp visuals and vibrant colors for notifications and fitness tracking.
  2. Embedded Systems: Perfect for use in microcontroller projects, development boards, and DIY electronics, enabling easy integration and display of data.
  3. Consumer Electronics: Commonly used in handheld gaming devices, remote controls, and portable gadgets, enhancing user experience with colorful graphics.
  4. Industrial Displays: Useful in equipment control panels and monitoring systems, where clear visual output of operational data is essential.
  5. IoT Devices: Employed in smart home devices and environmental sensors, allowing for user-friendly interfaces and easy monitoring of smart systems.
  6. Medical Devices: Suitable for portable medical equipment and monitoring devices, providing clear visual feedback for users and healthcare providers.
