Specifications
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Brand Name :
Limito
Model Number :
LHS114TC-IF03
Place of Origin :
China
Diagonal Screen Size :
1.14
Drive IC :
ST7789V3
Interface :
4 Line SPI
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
1 White LED
Brightness :
400
Description

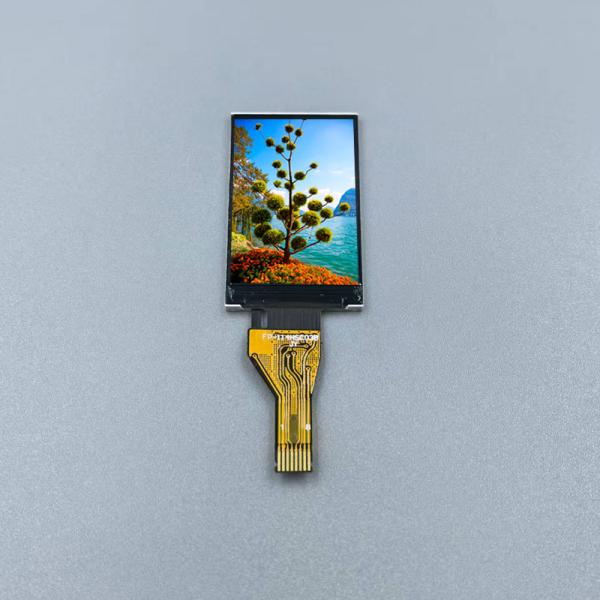

1.14 Inch 135x240 8 Pin ST7789 IPS TFT Displays

LIMITO IPS TFT LCD Display Description:

LHS114TC-IF03 is a 135RGBX240 dot-matrix TFT LCD module. This module is composed of a TFT LCD
Panel, driver ICs, FPC and a Backlight unit.

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.14

Display Mode

Normally black

Resolution

135(H)RGB x240(V)

Pixel pitch

0.1101(H) x 0.1038(V)

Active area

14.864(H) x 24.912(V)

Module size

17.6(H) x 31.0(V) x1.6 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

400 (TYP)Cd/m2

Viewing Direction

All View

Weight

1.8g

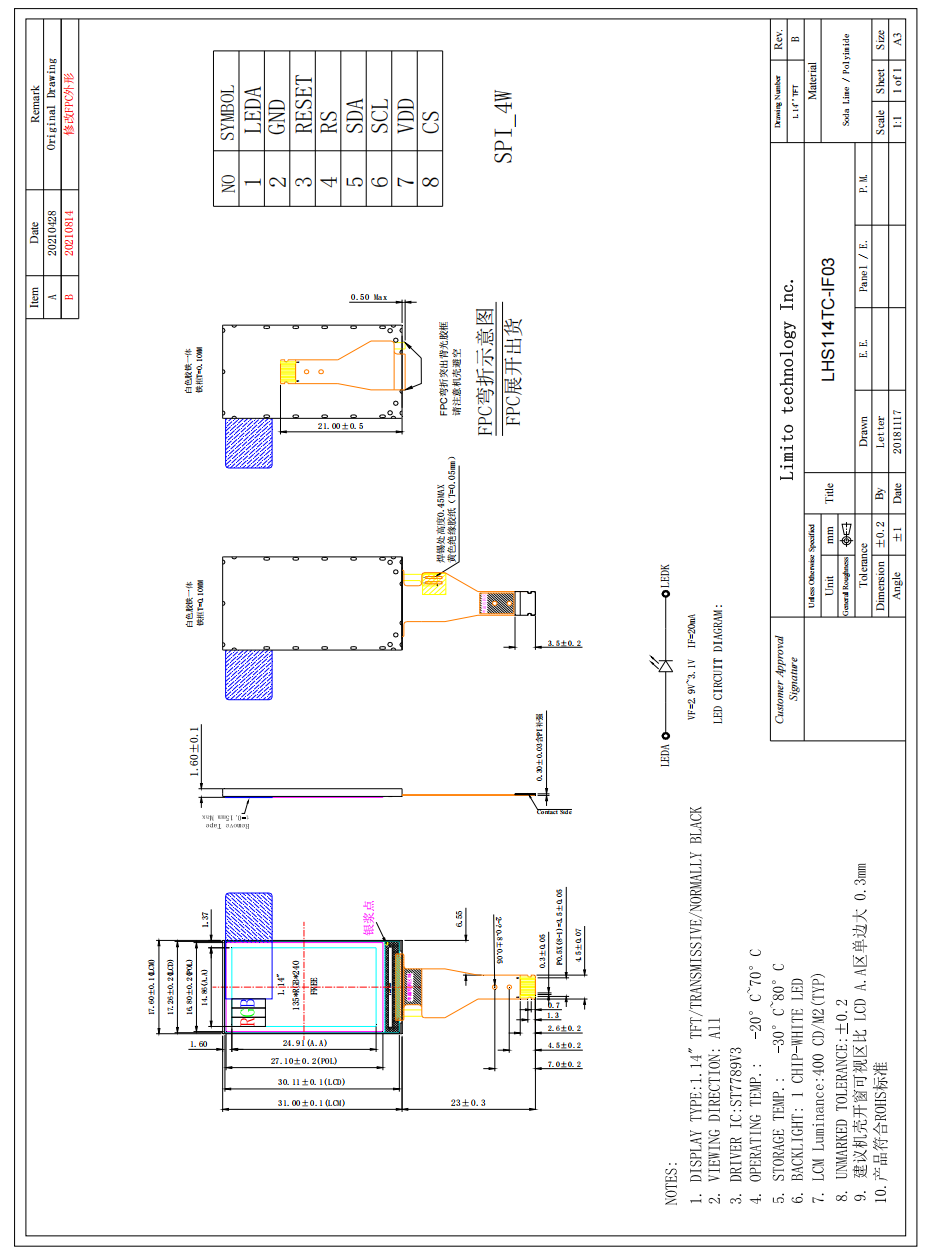

LIMITO IPS TFT LCD Display Mechanical Drawing

1.14 Inch IPS TFT Display 135x240 8 Pin ST7789 Industrial Lcd Ips TFT

LIMITO IPS TFT LCD Display Application:

The 1.14-inch IPS TFT display, featuring a resolution of 135x240 and an 8-pin ST7789V3 interface, is suitable for a variety of applications:

  1. Wearable Technology: Ideal for smartwatches and fitness trackers, providing vibrant visuals for displaying health metrics and notifications.
  2. Consumer Electronics: Commonly used in portable devices such as handheld gaming consoles and remote controls, enhancing user interaction with colorful graphics.
  3. IoT Devices: Perfect for smart home products and environmental sensors, enabling user-friendly interfaces for monitoring and control.
  4. Industrial Equipment: Useful in control panels and monitoring systems, where clear visual feedback is essential for operational tasks.
  5. Educational Tools: Ideal for interactive learning devices and educational kits, providing engaging interfaces for students.
  6. Medical Devices: Suitable for portable medical equipment, offering clear displays for vital sign monitoring and diagnostic tools.
