Specifications
Brand Name :
Limito
Model Number :
LBG072KA-IG01
Place of Origin :
China
Diagonal Screen Size :
0.72
Drive IC :
GC9D01N
Interface :
4 Line SPI
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
1 White LED
Brightness :
500
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Description

0.72 Inch 60RGB*160DOTS IPS TFT LCD Display With 500 Brightness

LIMITO IPS TFT LCD Display Description:

LBG072KA-IG01 is a 60RGB*160 dot-matix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight unit.

LIMITO IPS TFT LCD Display Specification:

LCD Size

0.72

Display Mode

Normally black

Resolution

60(H)RGB x160(V)

Pixel pitch

0.1068(H) x 0.1068(V)

Active area

6.408(H) x17.088(M)

Module size

8.52(H) x 21.7(V) x1.87 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

500 (TYP)Cd/m2

Viewing Direction

All View

Weight

1.0g

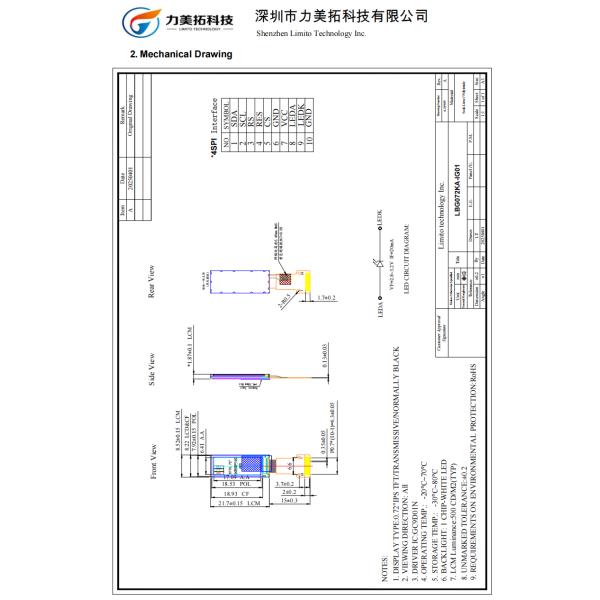

LIMITO IPS TFT LCD Display Mechanical Drawing

0.72 Inch IPS TFT Display 60RGB*160 DOTS With 500 Brightness

LIMITO IPS TFT LCD Display Application:

  1. Portable Devices: Ideal for handheld gadgets, such as smartphones and portable gaming consoles, where compact size and high visibility are essential.
  2. Wearable Technology: Perfect for smartwatches and fitness trackers, providing vibrant visuals while maintaining low power consumption.
  3. Industrial Equipment: Useful in control panels and machinery interfaces, allowing for clear and bright displays in various lighting conditions.
  4. Consumer Electronics: Commonly used in remote controls, home appliances, and electronic toys to enhance user interaction with colorful visuals.
  5. Medical Devices: Suitable for portable diagnostic tools and monitoring devices, where clear display of information is critical.
  6. IoT Applications: Effective in smart home devices and sensors, enabling easy monitoring and control through a user-friendly interface.
