1.54 Inches TFT Spi Lcd 240x240 Square All View TFT Display Screen
1.54 Inches TFT Spi Lcd 240x240 Square All View TFT Display Screen
1.54 Inches TFT Spi Lcd 240x240 Square All View TFT Display Screen
1.54 Inches TFT Spi Lcd 240x240 Square All View TFT Display Screen
1.54 Inches TFT Spi Lcd 240x240 Square All View TFT Display Screen
1.54 Inches TFT Spi Lcd 240x240 Square All View TFT Display Screen
1.54 Inches TFT Spi Lcd 240x240 Square All View TFT Display Screen
1.54 Inches TFT Spi Lcd 240x240 Square All View TFT Display Screen
1.54 Inches TFT Spi Lcd 240x240 Square All View TFT Display Screen
1.54 Inches TFT Spi Lcd 240x240 Square All View TFT Display Screen
1.54 Inches TFT Spi Lcd 240x240 Square All View TFT Display Screen
1.54 Inches TFT Spi Lcd 240x240 Square All View TFT Display Screen
Specifications
Brand Name :
Limito
Model Number :
LHS154KC-PG04
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
1.54
Drive IC :
ST7789V3
Interface :
4 Line SPI
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
3 White LED Parallel
Brightness :
400
Description

1.54 Inches SPI LCD 240x240 Square All View TFT Display Screen

LIMITO IPS TFT LCD Display Description:

LHS154KC-PG04 is a 240RGBX240 dot-matrix TFT LCD module. This module is composed of a TFT
LCD Panel, driver ICs, FPC and a Backlight unit

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.54

Display Mode

Normally black

Resolution

240(H)RGB x240(V)

Pixel pitch

0.1155(H) x 0.1155(V)

Active area

27.72(H) x 27.72(V)

Module size

31. 52(H) x 33.72(M) x1.9 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

400 (TYP)Cd/m2

Viewing Direction

All View

Weight

2.8g

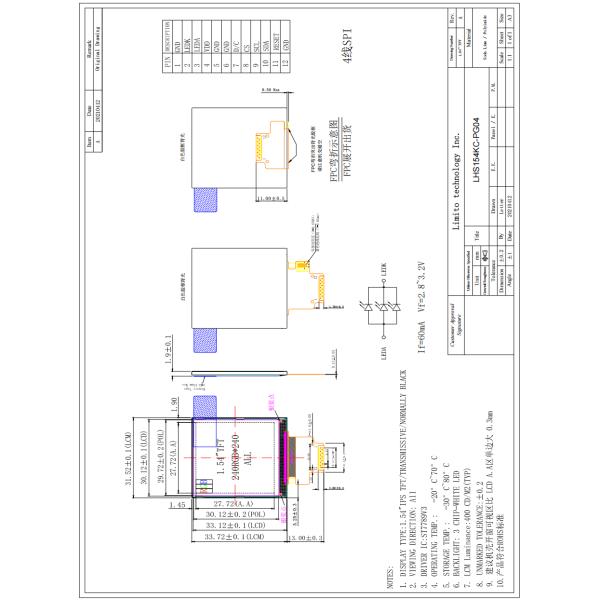

LIMITO IPS TFT LCD Display Mechanical Drawing

1.54 Inches TFT Spi Lcd 240x240 Square All View TFT Display Screen

LIMITO IPS TFT LCD Display Application:

The 1.54-inch square TFT display, featuring a resolution of 240x240 and an SPI interface, is suitable for a variety of applications:

  1. Wearable Devices: Perfect for smartwatches and fitness trackers, providing clear visuals for displaying health data and notifications.
  2. Consumer Electronics: Commonly used in handheld gaming devices, remote controls, and portable gadgets, enhancing user interaction with vibrant graphics.
  3. Industrial Controls: Useful in control panels and monitoring systems, allowing for easy visualization of operational data and status.
  4. IoT Devices: Ideal for smart home products and environmental sensors, enabling user-friendly interfaces for monitoring and control.
  5. Medical Devices: Suitable for portable medical equipment, offering clear displays for vital sign monitoring and diagnostic information.
  6. Educational Tools: Engaging for interactive learning devices, providing colorful visuals that enhance the educational experience.
