Specifications
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Brand Name :
Limito
Model Number :
LTS190KP-PF04
Place of Origin :
China
Diagonal Screen Size :
1.9
Drive IC :
ST7789P3
Interface :
8Bit 8080 MCU & 4 Line SPI
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
4 White LED
Brightness :
500
Description

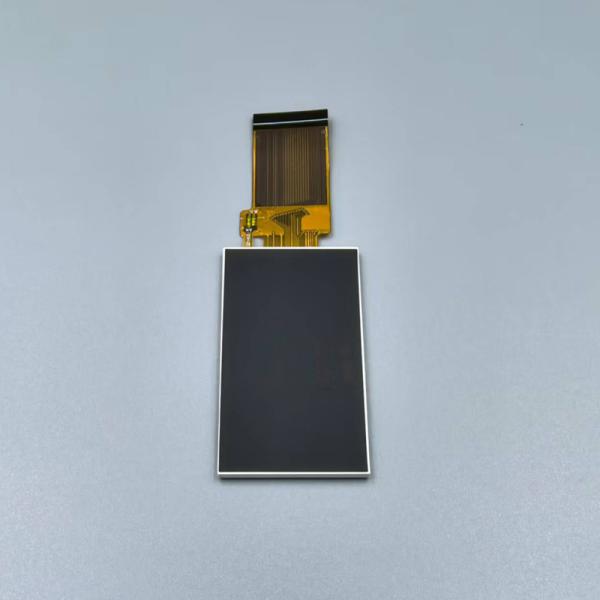

1.9 Inch 170x320 IPS TFT LCD Display For industrial Products MCU SPI ST7789

LIMITO IPS TFT LCD Display Description:

LTS190KP-PF04 is a 170RGBX320 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight unit.

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.9

Display Mode

Normally black

Resolution

170(H)RGB x320(V)

Pixel pitch

0.1335(H) x 0. 1335(V)

Active area

22.695(H) x 42.72(V) mm

Module size

25.8(H) X 49.72(V) x2.03(D) mm

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

500 (TYP)Cd/m2

Viewing Direction

All View

Weight

TBD

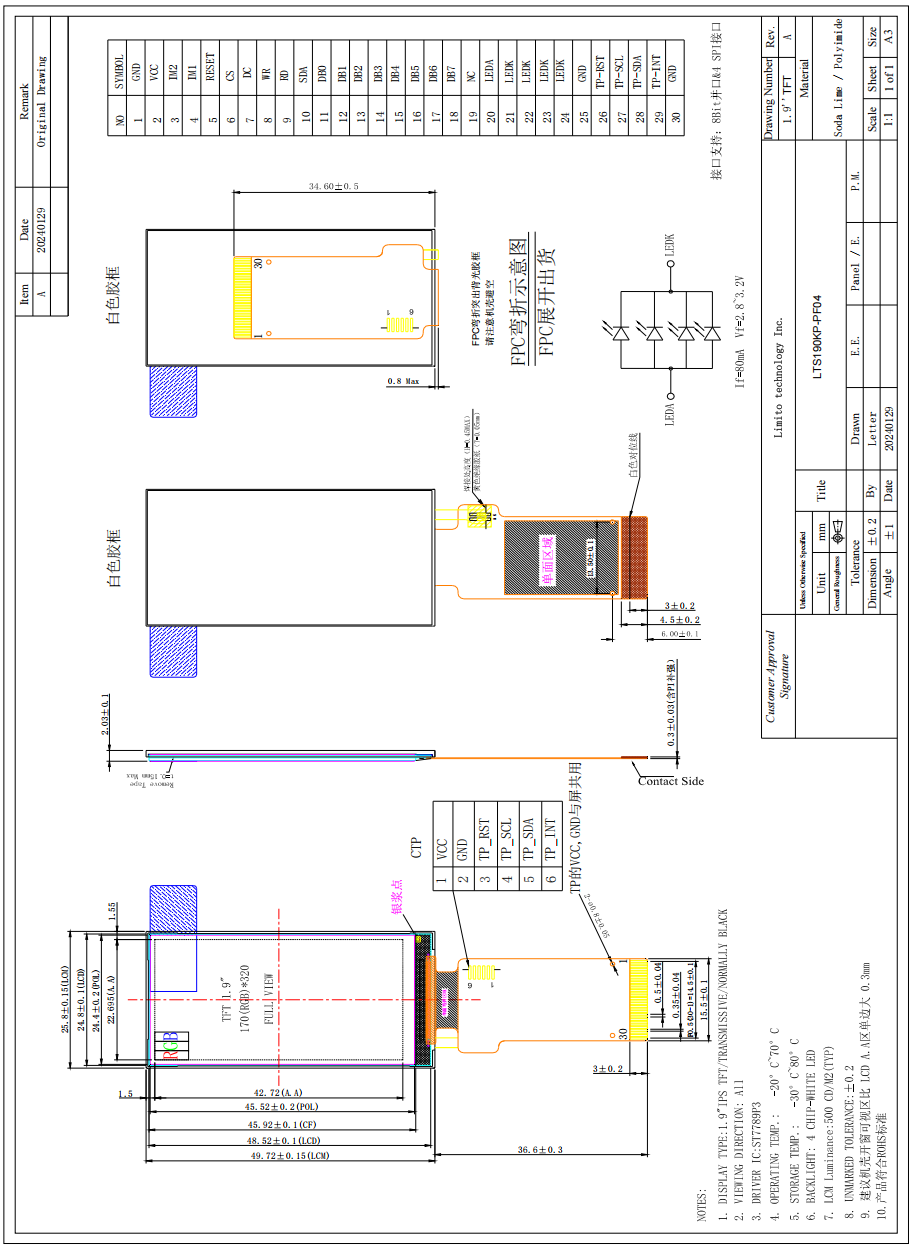

LIMITO IPS TFT LCD Display Mechanical Drawing

1.9 Inch IPS TFT LCD Display 170x320 For industrial Products MCU SPI ST7789

LIMITO IPS TFT LCD Display Application:

The 1.9-inch IPS TFT LCD display, featuring a resolution of 170x320 and an MCU SPI interface (ST7789P3), is ideal for a variety of applications:

  1. Wearable Devices: Perfect for smartwatches and fitness trackers, offering clear visuals and vibrant colors for displaying health metrics and notifications.
  2. Health Monitoring: Suitable for portable medical devices that track vital signs, providing real-time data in an easy-to-read format.
  3. Consumer Electronics: Commonly used in handheld gaming consoles and remote controls, enhancing user interaction with rich graphics and responsive interfaces.
  4. Smart Home Devices: Employed in smart appliance displays and home automation systems, allowing users to control and monitor their environments effectively.
  5. Industrial Applications: Useful in control panels and monitoring systems, where clear and detailed visual outputs are necessary for operational efficiency.
  6. Educational Tools: Ideal for learning devices and educational kits, providing interactive interfaces for students and learners.
