Specifications
Brand Name :
Limito
Model Number :
LHS430K-IF01
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
4.3
Drive IC :
ST7282A
Interface :
RGB
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
10 White LED
Brightness :
650
Description

4.3inch Capacitive Touchscreen Color Screen TFT LCD 480x272 High-Definition Resolution Full Viewing Angle LCD

LIMITO IPS TFT LCD Display Description:

LHS430K-IF01 is a 480RGBX272 dot-matrix TFT LCD module. This module is composed ofa TFT LCD

Panel, driver ICs, FPC and a Backlight unit

LIMITO IPS TFT LCD Display Specification:

LCD Size

4.3

Display Mode

Normally black

Resolution

480(H)RGB x272(V)

Pixel pitch

0.198(H) x 0.198(V)

Active area

95.04(H) X 53.856(V)

Module size

105.5(H) x 67.2(V) x2.9 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

16.7M

Luminance(cd/m2)

650 (TYP)Cd/m2

Viewing Direction
All View

Weight

39.2g

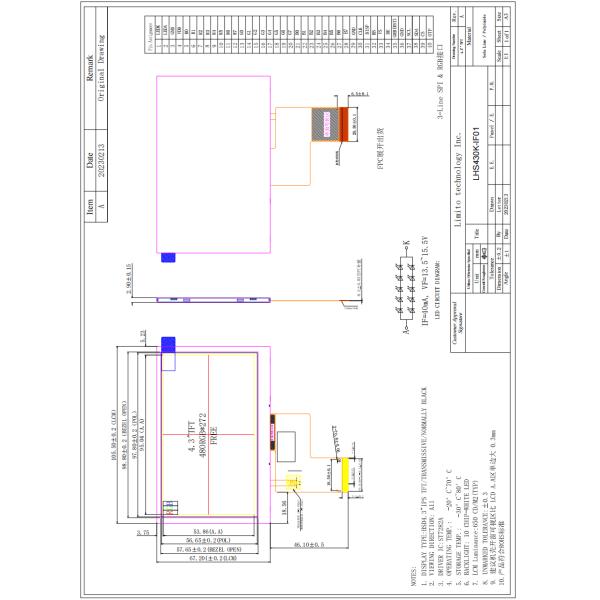

LIMITO IPS TFT LCD Display Mechanical Drawing

4.3 Inch IPS TFT Display 480x272 Resolution High Definition Full Viewing Angle LCD

LIMITO IPS TFT LCD Display Advantages:

Advantages of 480x272 High-Definition Resolution:

  1. Clear and Crisp Visuals: For a 4.3-inch display, a 480x272 resolution provides a good pixel density, ensuring that text, icons, and graphics appear clear, sharp, and easy to read without significant pixelation.
  2. Sufficient Detail: This resolution is adequate for displaying detailed menus, small images, and a decent amount of information on the screen, improving the user interface.
