Specifications
Brand Name :
Limito
Model Number :
LHI546TA-IF01
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
5.46
Drive IC :
ILI9881C
Interface :
MIPI 2Lane
Operating Temp :
-20℃~ + 70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
15 White LED Serial
Brightness :
330
Description

5.46 Inch TFT Lcd 720*1280 Resolution MIPI Interface Display

LIMITO IPS TFT LCD Display Description:

LHI546TA-IF01 is a 720RGBX1280 dot-matrix TFT LCD module. This module is composed ofa TFT LCD

Panel, driver ICs, FPC and a Backlight unit

LIMITO IPS TFT LCD Display Specification:

LCD Size

5.46

Display Mode

Normally black

Resolution

720(H)RGB x1280(V)

Pixel pitch

0.0945(H) x 0.0945(V)

Active area

68.04(H) x 120.96(V)

Module size

70.64(H) X 129.21(V) x1.7 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

16.7M

Luminance(cd/m2)

330 (TYP)Cd/m2

Viewing Direction
All View

Weight

33g

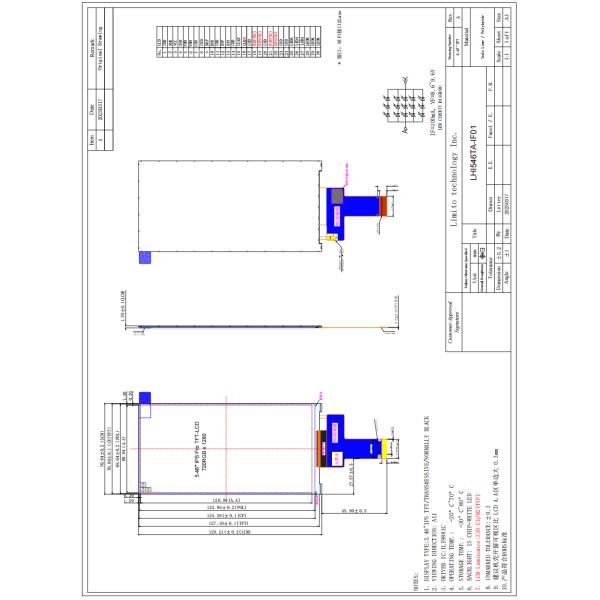

LIMITO IPS TFT LCD Display Mechanical Drawing

5.46 Inch IPS TFT Display 720*1280 MIPI Interface Display

LIMITO IPS TFT LCD Display Advantages:

  • Vibrant Color Reproduction: TFT LCDs are known for their ability to produce a wide spectrum of vibrant and accurate colors, essential for a rich visual experience.
  • High Brightness: TFT LCDs can achieve high brightness levels, making them legible in various lighting conditions, including moderately bright outdoor environments.
  • Cost-Effective Manufacturing: TFT LCD technology is mature and relatively cost-effective to produce at scale, offering a good balance of performance and price point.
  • Long Lifespan: Compared to some other display technologies, TFT LCDs generally have a long operational lifespan.
