WIND-2-TS Two Poles Stator Automatic Coil Winder for 100 Sets/Year
WIND-2-TS Two Poles Stator Automatic Coil Winder for 100 Sets/Year
Specifications
Model NO. :
WIND-2-TS
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

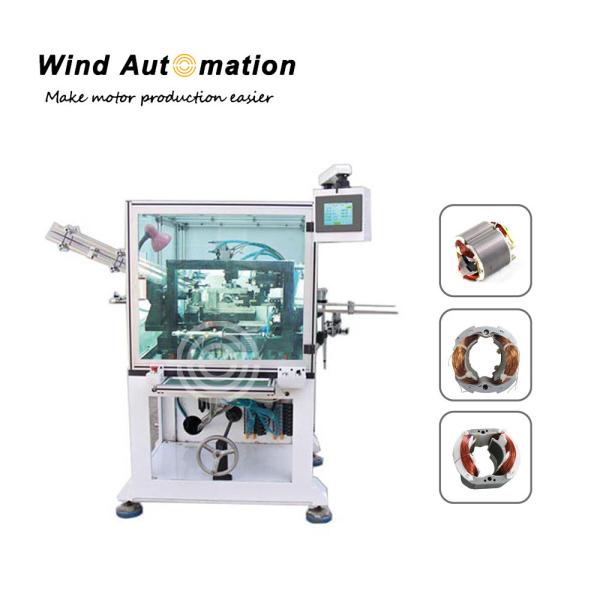

Two Poles Stator Automatic Coil Winder
WIND-2-TS Two Poles Stator Automatic Coil Winder for 100 Sets/Year
This two poles stator winder is capable of producing coils for two poles stators. This machine can automatically do feeding, winding, clamping, and cutting. It can be used as stand alone machine or integrated into a production line.

(1)Specification
Wire diameter 0.15~1.3mm
Stator OD 50~150mm
Stator ID 20~60mm
Stack height 10~70mm
Turn No. 0~99999
Pole No. Two
Main spindle RPM Max 450RPM
Air source 5~7kg/cm3
Movement Stepping/Auto
Voltage 380v/50Hz
Power 4.5KW
Weight 1200Kg
Dimension 1500X2100X1650mm

(2)Application
suitable for two poles stators.

(3)Features
  1. No skilled operator required
  2. This machine can be customized accordingly
  3. Rigid design frame
  4. Fully automatic working cycle after loading of the stator
  5. Quick change-over of tooling
  6. PLC control, fault display
(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC pneumatic components
HIWIN linear guide
